NTS
ITEM NO.
PART
NUMBER
PART DESCRIPTION
QTY
1
00195-107
PANEL, ENCL
1
2
08312-026M
GAUGE, TEMP 2.5" 6 FT CAP
1
3
09174-325
GAUGE,PSI 2.5" DIA. LIQUID FIL
2
4
09175-001
GAUGE, DELTA-P 0-15 PSID
1
5
09175-030
GAUGE, DELTA-P 0-30 PSID
1
6
91550-042
CONN, NT 1/4 X 1/8 FPT
4
7
91550-044
CONN, NT 1/4 X 1/4 FPT
2
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
00
RELEASE
09/25/15
DJW/GLB
A
B
C
D
E
F
F
E
D
C
B
A
5
4
3
2
1
1
2
3
4
C
DJW
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE:
DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
09/25/15
00
AS809-030DG

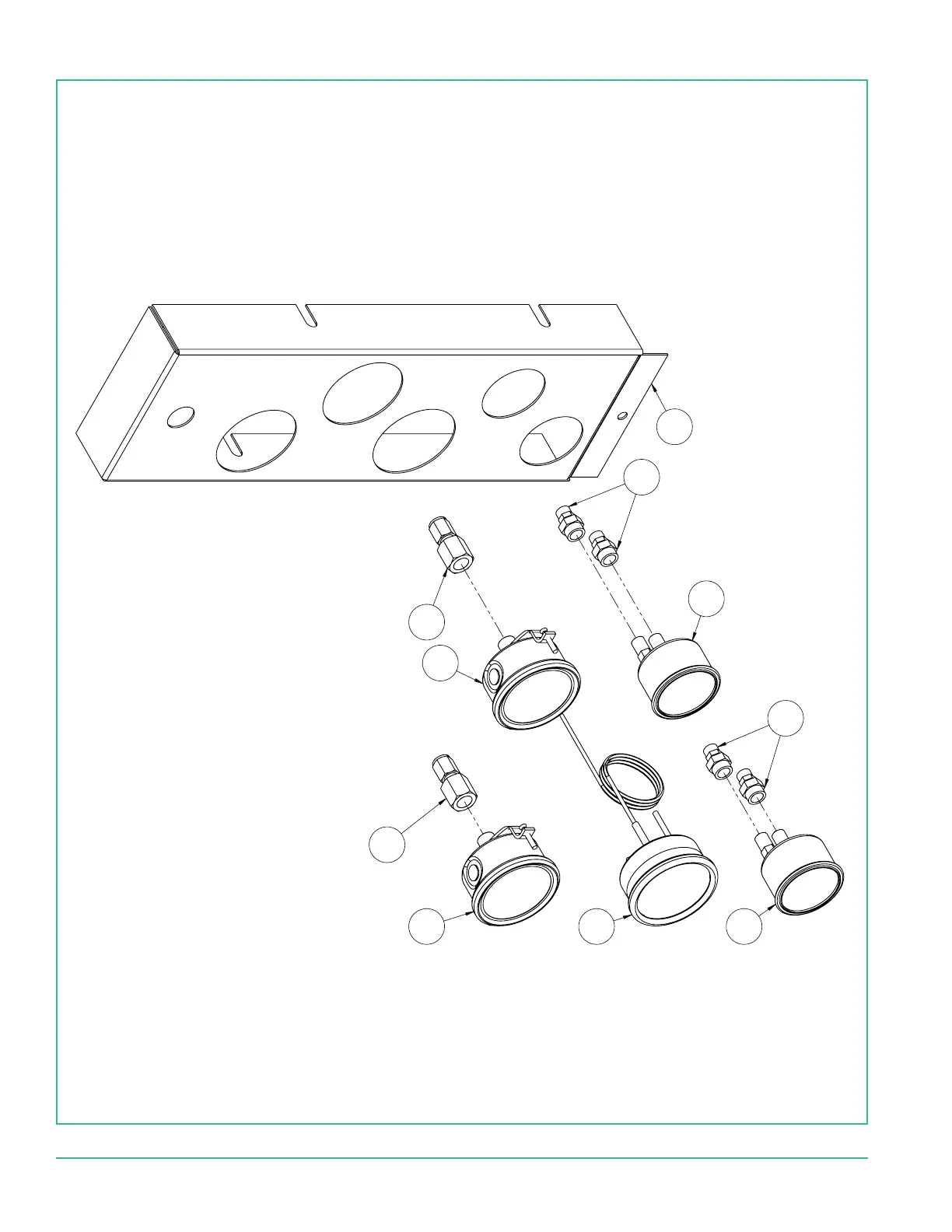

DWG,ASSY CTLPNL 30DG ENCL
