TO AFTERCOOLER
TO AIR END
30
31
32
34
35
36
33
18
14
19
20
27
26
13
10
3
17
15
4
8
9
8
16
15
12
5
22
21
1
11
17
28
2
6
29
7
25
24
23
MOUNT TO
FRAME
NTS
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
REDRAWN IN SOLIDWORKS
01/14/15
KRO
ITEM #
PART NUMBER
DESCRIPTION
QTY
1
03448-028
TANK, SUMP/SEPARATOR 10"
1
2
00633-001
GASKET, DISCHARGE
1
3
09610-001
VALVE, MPC (1-1/4")
1
4
91176-020
NIPPLE, CL BLK SCH80 1.25
1
5
08000-019
ELEMENT, SEPARATOR 15-30 HP
1
6
92773-038
STUD, B7 5/16-18 X 1-1/2''
12
7
90165-003
NUT, HEX 5/16-18
12
8
95510-004
TEE, .250 MNPT X FNPT X FNPT BRASS
2
9
92469-200
NIPPLE, YEL BRASS 1/4 X 6
1
10
91160-017
BUSHING, 1-1/4 X 1
1
11
03100-008
VALVE, SAFETY RELIEF .50 MNPT - 200PSIG
1
12
09661-002
REGULATOR, 1/4" FNPT
1
13
96363-161
CONN, CMS 1 X 1
1
14
03286-003
FITTING, SIPHON 1/4" MNPT X 1/4" TUBE
1
15
91557-064
ELBOW, 90 NT 3/8 X 1/4 M
2
16
91553-044
CONN, NT 1/4 X 1/4 MPT
1
17
91564-042
TEE, MALE RUN 1/4NT X 1/8
2
18
09602-024
TUBE, OIL TOP RTN 15-30HP
1
19
09602-025
TUBE, SCAV BTM RTN 15-30HP
1
20
96390-042
ELBOW, CMS 1/4T X 1/8 MPT
1
21
17254-016
SIGHT GLASS, 1.00 MNPT
1
22
07255-016
CAP, VENTED
1
23
96399-004
ELBOW, 1/4" MNPT X MNPT STEEL
1
24
95784-004
VALVE, DRAIN 1/4" F X F
1
25
94561-002
PLUG, PIPE 1/4" SQUARE HD
1
26
09616-055
TUBE, 1" MPCV-AC 25D/30D7
1
27
96390-161
ELBOW, CMS 1 X 1
1
28
93115-013
BOLT, WHIZ 3/8-16 1.0 GR5
2
29
93165-004
NUT, WHIZ HEX 3/8-16
2
30
B29349-064
KIT, OIL RTRN SIGHTGLASS
1
31
96363-044
CONN, CMS 1/4T X 1/4MPT
1
32
09349-001
SIGHTGLASS, OIL RETURN
1
33
18577-001
INSERT
1
34
03001-041
ORIFICE, INSERT 0.041
1
35
00023-001
ADAPTER, OIL RTN SIGHTGLASS
1
36
95550-042
CONN, CFS 1/4T X 1/8 FPT
1
D
C
1
3
4
5
A
B
C
D
E
F
5
3
2
1
F
E
B
A
4
2
D
KRO
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE:
DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
01/15/14

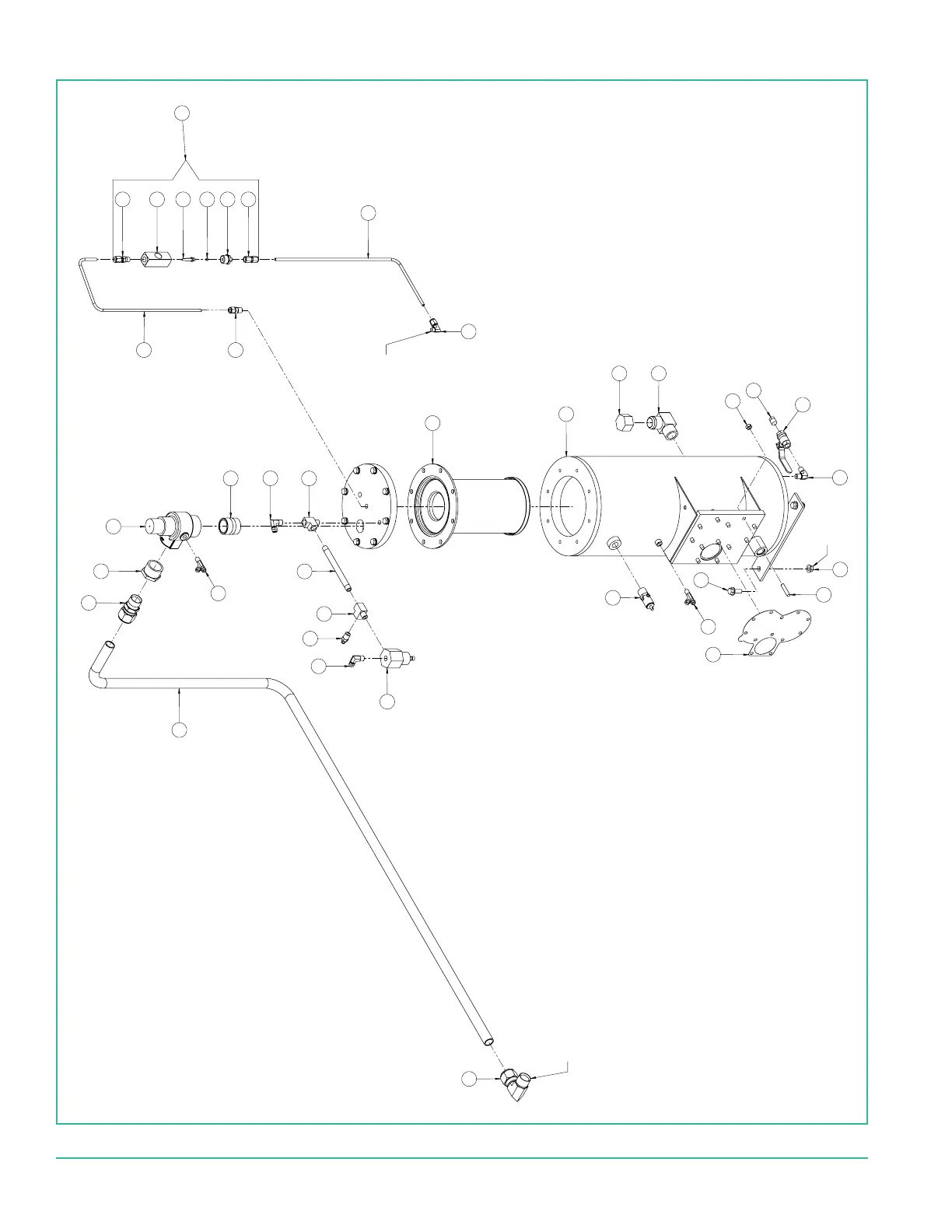

AS803-030D7H-TE
DISCHARGE SYS. TEFC 25 HP
