4
8
5
6
7
14
14
11
9
10
15
17
19
18
16
3
13
12
1
3
13
2
TO AIR END
TO SUMP TANK
MOUNT TO
FRAME
14
NTS
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
REDRAWN IN SOLIDWORKS
01/15/14
KRO
ITEM #
PART NUMBER
DESCRIPTION
QTY
1
13400-104
SHROUD, FAN 15-30D7
1
2
03216-104
GUARD,FAN 15-30HP
1
3
93115-002
BOLT, WHIZ LOCK 5/16-18 X 3/4
12
4
07711-202
COOLER, OIL/A.C. 15-30D7
1
5
90659-121
O-RING, VITON
2
6
08207-055
HOUSING, BY-PASS
1
7
90115-093
BOLT, HH 3/8-16 X 3
2
8
09505-006
VALVE, THERMOSTAT 155/185
1
9
09610-024
TUBE, CLR TO AE 25D4/30D7
1
10
80120-012
CONN, CMS ORB 3/4 X 1.06M
1
11
09612-026
TUBE, 5/8" SUMP-TV 25D4
1
12
93115-012
BOLT, WHIZ 5/16-18 X 1"
4
13
93165-003
NUT, WHIZ HEX 5/16-18
10
14
80120-010
CONN, CMS ORB 5/8 X .875M
3
15
08080-033
FAN, 30D7; H30
1
16
00851-002
HUB, FAN - 25D4/30D7/40D
1
17
92224-047
BOLT, SOC 1/4-20 X 3/4
4
18
00858-005
KEY, FLAT .375X1.875X.815
1
19
90502-063
BOLT, SOC 1/4-20 X 3/4
1
D
C
1
3
4
5
A
B
C
D
E
F
5
3
2
1
F
E
B
A
4
2
D
KRO
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE:
DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
01/15/14
AS804-030D7H-TE 30HP

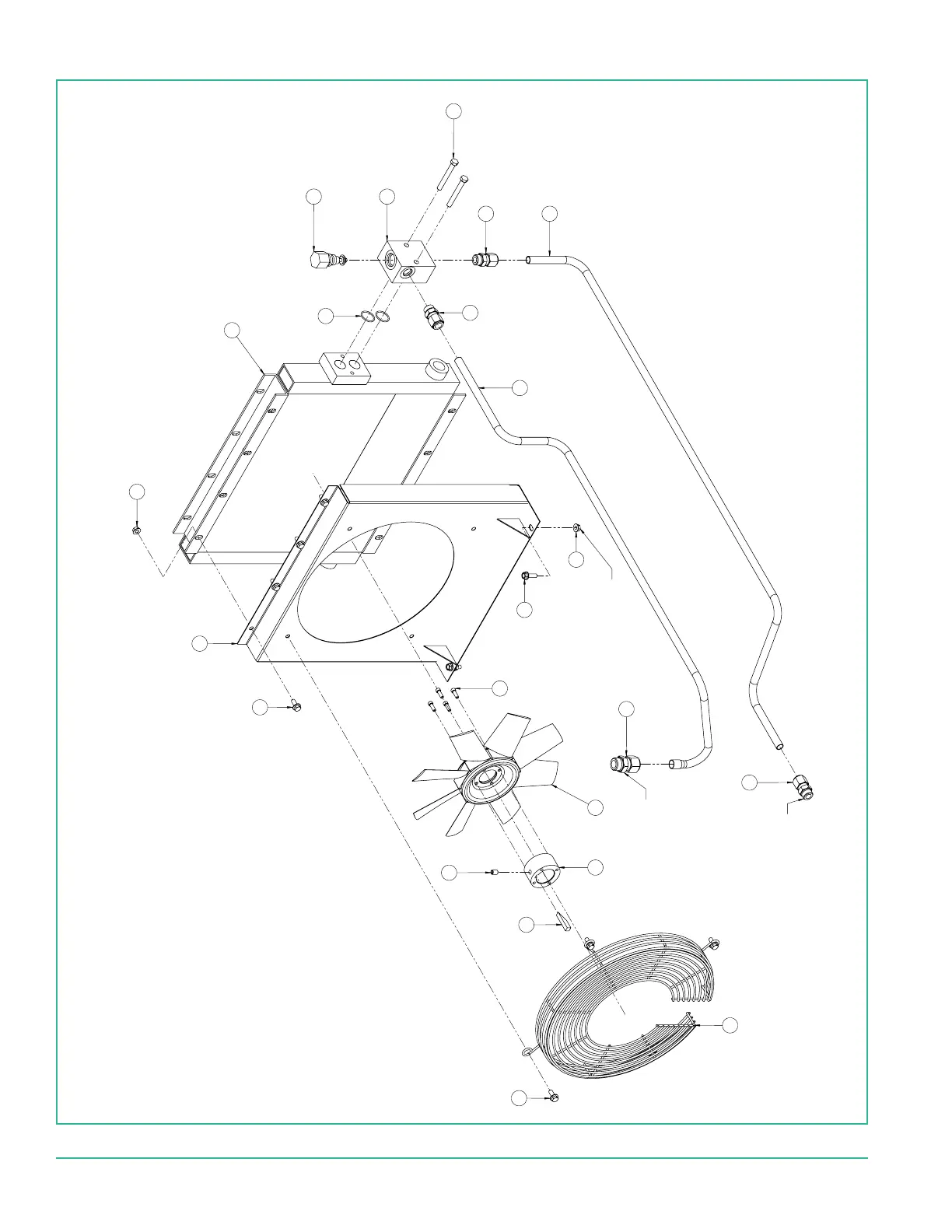

COOLING SYSTEM, 30D7 TEFC
