1:1
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
REDRAWN IN SOLIDWORKS
01/22/14
KRO

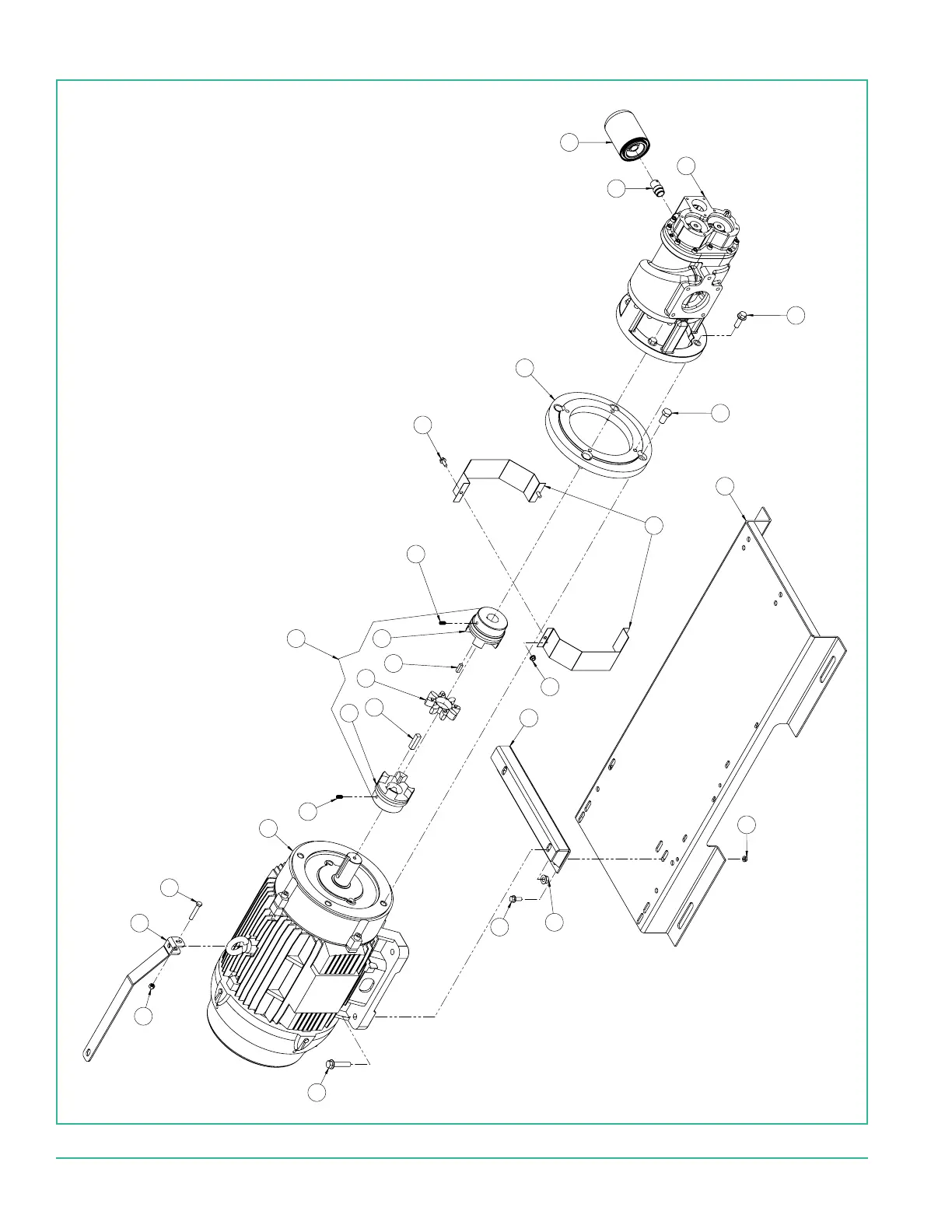

ITEM #
PART NUMBER
DESCRIPTION
QTY
1
10144-030
BASE,COMP 25D-40D
1
2
18339-046
SUPPORT, MOTOR 40 TEFC
1
3
CONSULT
FACTORY
MTR, 40HP 23/460
1
4
50000-740
AIR END, 40HP (97AE) PALATEK FD
1
5
12345-000
ADAPTER, MOTOR/COMP 50DD
1
6
90115-025
BOLT, HH 5/8-11 X 1-1/4
4
7
93115-034
BOLT, WHIZ 1/2-13 X 1 1/2
4
8
08516-058
HUB, DRIVE 1.875 BORE
1
9
08516-528
HUB, DRIVEN 1.38 BORE
1
10
08516-029
SPIDER, COUPLING 20-50HP
1
11
93115-074
BOLT, WHIZ 1/2-13 X 2-1/2
2
12
93165-006
NUT, WHIZ HEX .50-13
2
13
93115-013
BOLT, WHIZ 3/8-16 1.0 GR5
2
14
93165-002
NUT, WHIZ 1/4"-20
2
15
00697-009
GUARD, COUPLING HALF
2
16
93115-002
BOLT, WHIZ 1/4"-20 X 1/2"
2
17
93165-003
NUT, WHIZ HEX 5/16-18
2
18
90947-022
KEY, SQ 5/16 X 1-1/8"
1
19
90947-166
KEY, SQ 1/2 X 2
1
20
90502-108
SETSCREW 3/8-16 X 3/4
2
21
03000-109
ADAPTER, FILTER/AIR END
1
22
00520-017
ELEMENT, OIL FILTER - MG
1
23
18516-050
COUPLING, DRIVE 50HP DD
1
24
90115-063
BOLT, HH 3/8 X 2-1/4
1
25
90165-004
NUT, HEX 3/8-16
1
26
00216-092
BRACKET, CLR SUPT 40DTEFC
1
D
C
1
3
4
5
A
B
C
D
E
F
5
3
2
1
F
E
B
A
4
2
D
KRO
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE:
DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
01/22/14
AS801-040DS-TE
MTR-EL-BS, 40D E1 230V
