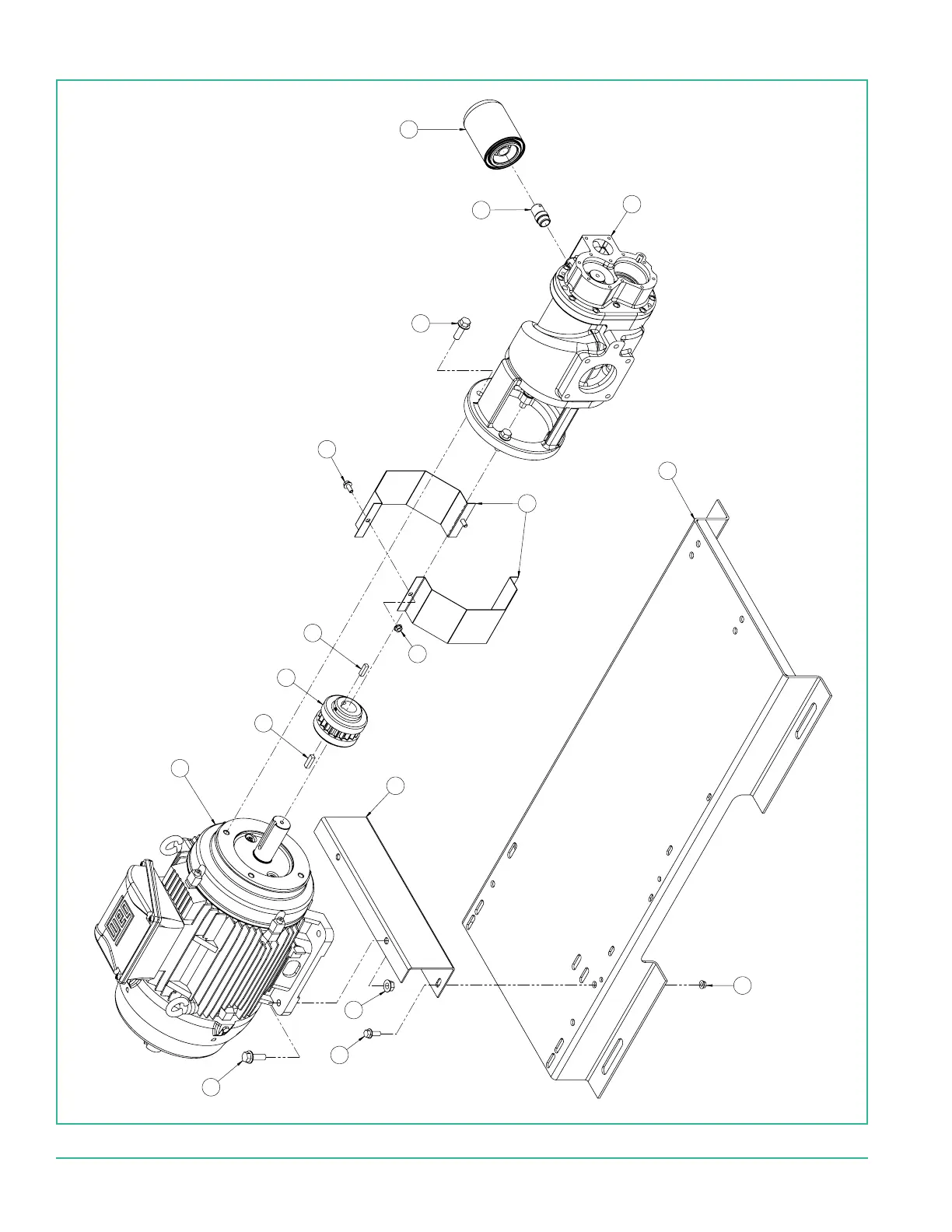

8.5 COMPRESSOR, FRAME AND DRIVE ASSEMBLY (15HP)
1:1
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
REDRAWN IN SOLIDWORKS
01/16/14
KRO
ITEM #
PART NUMBER
DESCRIPTION
QTY
1
10144-030
BASE,COMP 25D-40D
1
2
18339-007
SUPPORT, MOTOR TEFC 20HP
1
3
CONSULT
FACTORY
MTR, 15HP 230/460 4D TEF2
1
4
50000-725
AIR END, 15/25 HP PALATEK
1
5
93115-034
BOLT, WHIZ 1/2-13 X 1 1/2
6
6
93165-006
NUT, WHIZ HEX .50-13
2
7
93115-013
BOLT, WHIZ 3/8-16 1.0 GR5
2
8
03000-109
ADAPTER, FILTER/AIR END
1
9
00520-017
ELEMENT, OIL FILTER - MG
1
10
00697-010
GUARD, COUPLING HALF
2
11
93115-002
BOLT, WHIZ LOCK 5/16-18 X 3/4
2
12
93165-003
NUT, WHIZ HEX 5/16-18
4
13
18516-076
COUPLING, DRIVE 15 HP
1
14
90947-444
KEY, .325 X .375 X 1.25
1
15
90947-022
KEY, SQ 5/16 X 1-1/8"
1
