Sullivan-Palatek 40D - Compressor, Frame and Drive Assembly (20-30 Hp)

68 

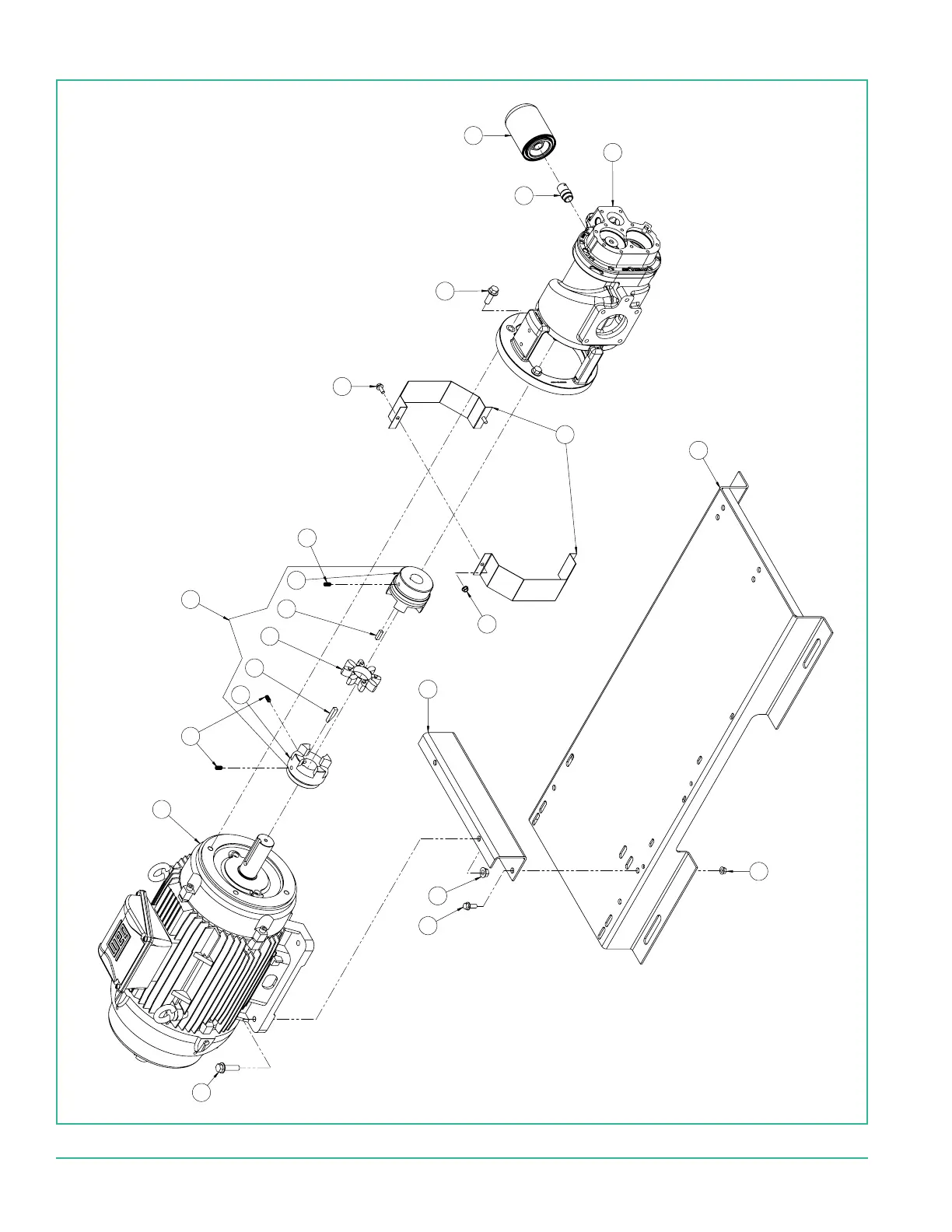

8.6 COMPRESSOR, FRAME AND DRIVE ASSEMBLY (20–30HP)
12
13
14
11
10
15
15 21
19
20
8
9
17
18
2
5
6
7
3
4
1
NTS
16
ITEM #
PART NUMBER
DESCRIPTION
QTY
1
10144-030
BASE,COMP 25D-40D
1
2
18339-004
SUPPORT, MOTOR 25H/30H
1
3
CONSULT FACTORY
MTR,30HP 230/460 4D TEFC E2
1
4
93115-054
BOLT, WHIZ 1/4-13 X 2" GR5
2
5
93165-006
NUT, WHIZ HEX .50-13
2
6
93115-013
BOLT, WHIZ 3/8-16 1.0 GR5
2
7
93165-004
NUT, WHIZ HEX 3/8-16
2
8
50000-735
AIR END, 30D7(97AE)PALATEK MD
1
9
93115-034
BOLT, WHIZ 1/2-13 X 1 1/2
4
10
08516-528
HUB, DRIVEN 1.38 BORE
1
11
90947-022
KEY, SQ 5/16 X 1-1/8"
1
12
08516-560
HUB, DRIVE 1.625X.375
1
13
00858-005
KEY, FLAT .375X1.875X.815
1
14
08516-029
SPIDER, COUPLING 20-50HP
1
15
90502-108
SETSCREW 3/8-16 X 3/4
3
16
00697-009
GUARD, COUPLING HALF
2
17
93115-002
BOLT, WHIZ 1/4"-20 X 1/2"
2
18
93165-002
NUT, WHIZ 1/4"-20
2
19
03000-109
ADAPTER, FILTER/AIR END
1
20
00520-017
ELEMENT, OIL FILTER - MG
1
21
18516-025
COUPLING, DRIVE 20-40 HP
1
REVISIONS
REV.
DESCRIPTION
DATE
APPROVED
REDRAWN IN SOLIDWORKS
01/15/14
KRO
D
C
1
3
4 5
A
B
C
D
E
F
5
3
2 1
F
E
B
A
4
2
D
KRO
FIRST USED ON:
3RD ANGLE
PROJECTION
1201 West US Highway 20, Michigan City IN 46360
1-800-438-6203
SHEET
SCALE:
TOLERANCES AS FOLLOWS:
REV
DESCRIPTION
THIS DRAWING AND ALL INFORMATION THEREIN IS THE PROPERTY OF SULLIVAN-PALATEK, INC. IS CONFIDENTIAL AND MUST NOT BE MADE PUBLIC OR COPIED.
WWW.SULLIVANPALATEK.COM
SULLIVAN-PALATEK
CHECKED BY:
DATE: DATE:
DRAWN BY:
ANGLES: + OR - 1/2 DEG.
DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE NOTED
X.XXX + OR - 0.005
X.XX + OR - 0.020
DECIMAL: X.X + OR - 0.050
MATERIAL:
IT IS LOANED SUBJECT TO RETURN UPON DEMAND, IS NOT TO BE USED DIRECTLY OR INDIRECTLY IN ANYWAY DETRIMENTAL TO SULLIVAN-PALATEK'S INTEREST.
DRAWING NO:
SIZE
1 OF 1
01/15/14
AS801-030D7-TE
MTR-EL-BS TEFC 30D7 460
 
