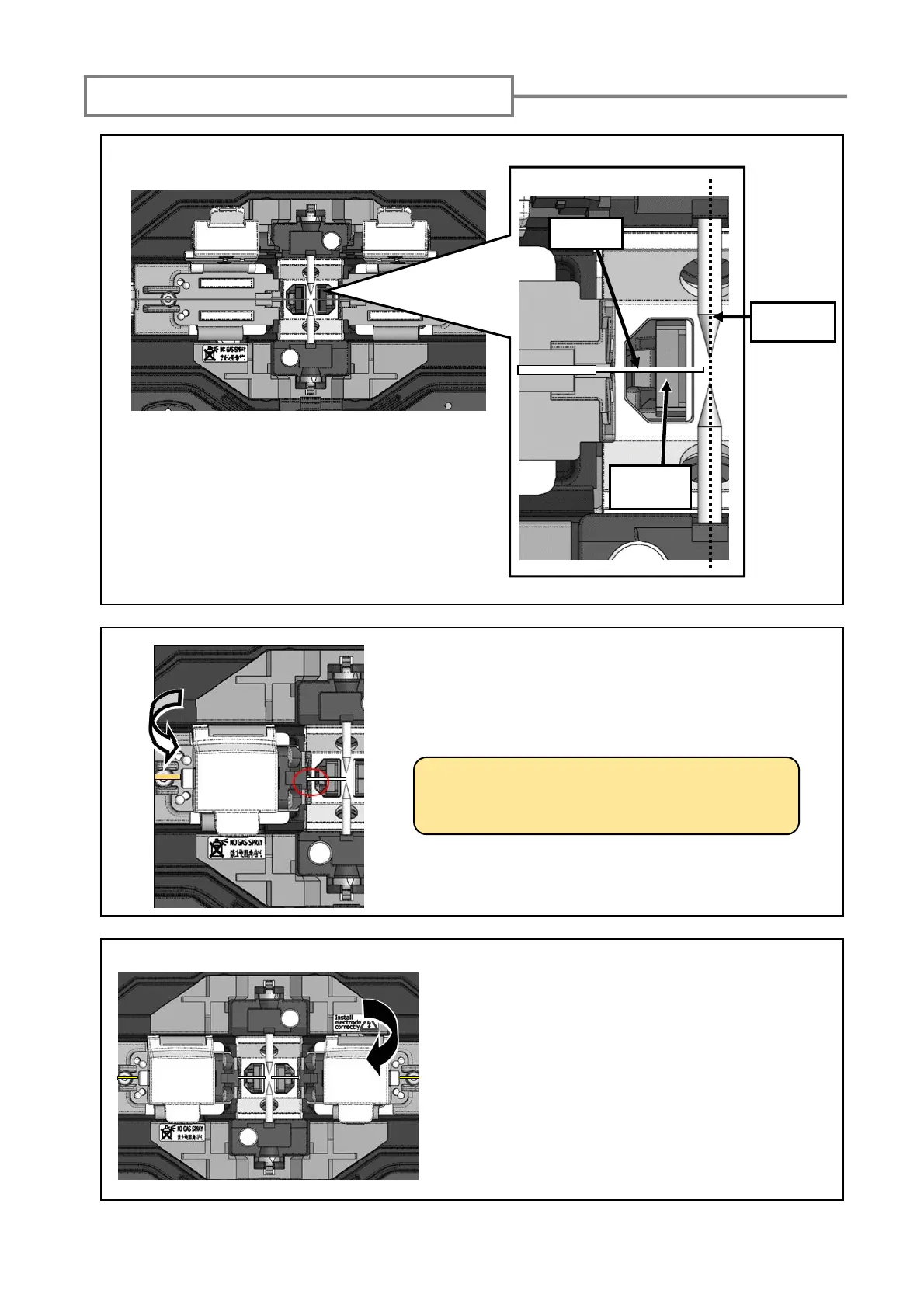

2-11
3: Place the fiber so the end of the fiber
is between the edge of v-groove and
the electrode.
1: Open the hood.
5: Repeat step 2 to 4 for the other fiber.
6: Close the hood.
7: Start an arc test or the splicing process.
2: Open the fiber coating clamp lid.
Electrode
4: Close the fiber coating clamp lid.
Do not touch the fiber end face
against any surface.
V-groove
Fiber
Inserting the fiber into the splicer
