SummaSign Pro T-series Cutters User’ s Manual
General Information 1-17
2. Insert the grey nose piece as shown in Figure 1-5 until it snaps into the
nose piece holder.

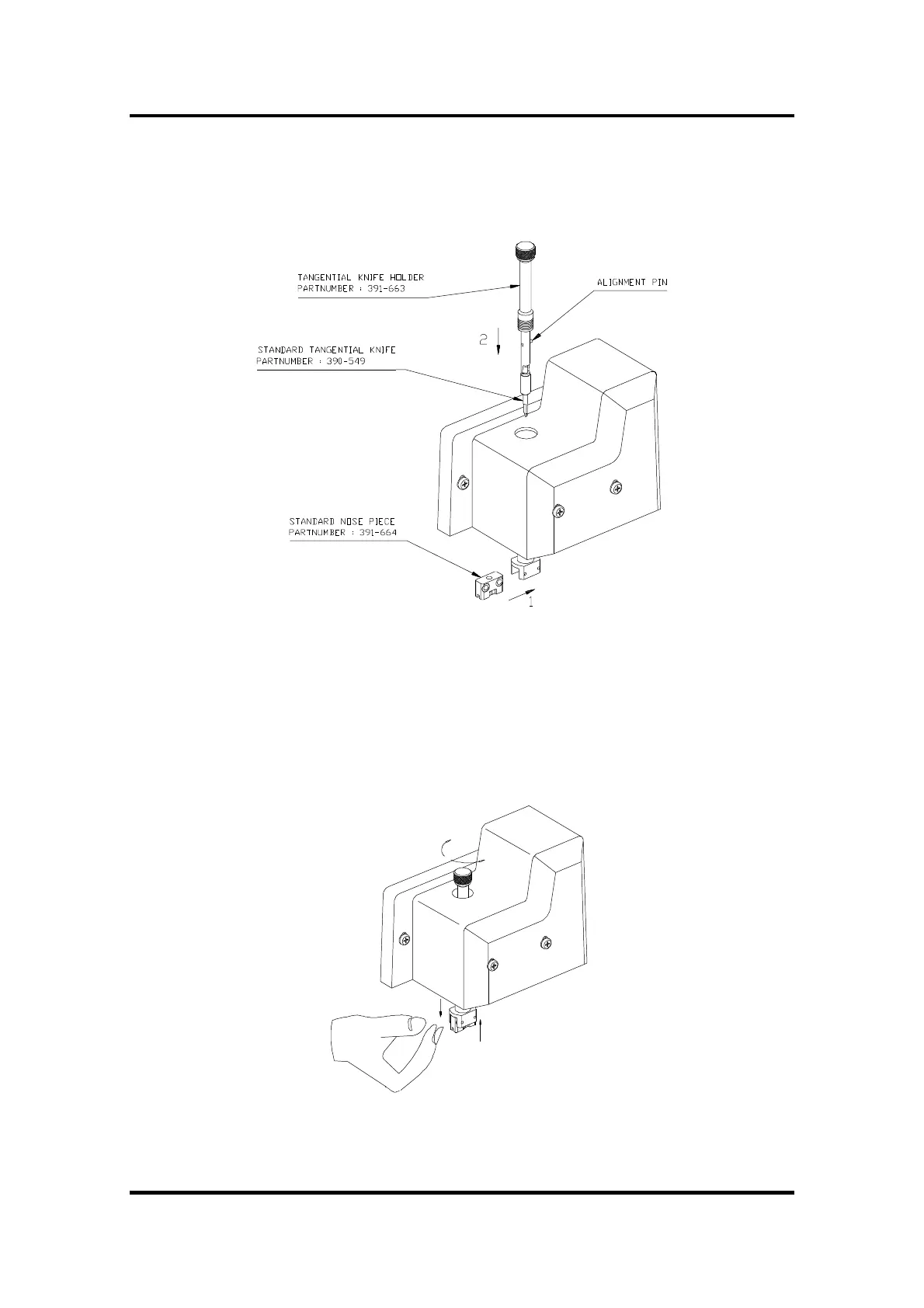

FIGURE 1-5 :
NOSE PIECE INSTALLATION
3. Gently insert the knife into the tool shaft as shown in Figure 1-5. Hold the
nose piece in place with one hand, with the other hand turn the knife
holder anticlockwise until the alignment pin fits into the small notch of the
tool shaft. Now turn clockwise until the knife holder gets grip in the tool
shaft.
FIGURE 1-6 :
KNIFE HOLDER INSERTION
