SummaSign Pro T-series Cutters User’ s Manual
General Information 1-28
2. When working with roll media proceed by inserting a media flange at
each end of the media roll and tighten the thumbscrew until the media roll
is firmly gripped between the flanges. Make sure the flanges are firmly
pressed against the roll. Place the roll of media on the media support
rollers at the rear of the machine.
3. Position the media roll with flanges on the support rollers at the rear of the
machine.
Slide the two roll media guide bushes under the media roll so that the roll
flanges run into the groove provided in the guide bushes. In this position the
media roll and guide bushes can be shifted from the left to the right.
Start feeding the media from the rear of the machine.
Position the left media edge on the left-most drive sleeve and check
whether the right media edge is positioned over the long drive sleeve. If so,
the left pinch roller can be positioned in a detented position over the left-
most sleeve and the right pinch roller is positioned somewhere over the
long drive sleeve to suit the media width. The pinch roller can be lowered
anywhere between the two detent positions of the long drive sleeve to
allow for flexibility in holding any media width.
In circumstances where the above does not work, because your media is
too narrow to reach the long drive sleeve, try positioning the left media
edge over the second left drive sleeve and position the right media edge
somewhere on the long drive sleeve. Repeat this process if the media is
found still to be too narrow, locating the left media edge on the third
sleeve from the left and adjusting the right hand position as previously
described.
Follow the same reasoning when loading media on the wider models of
the Pro T-series cutters, which have been provided with more sleeves.
In all cases, both edges of the media have to run over a drive sleeve. If this
is not the case, reposition the roll of material to comply with the above.

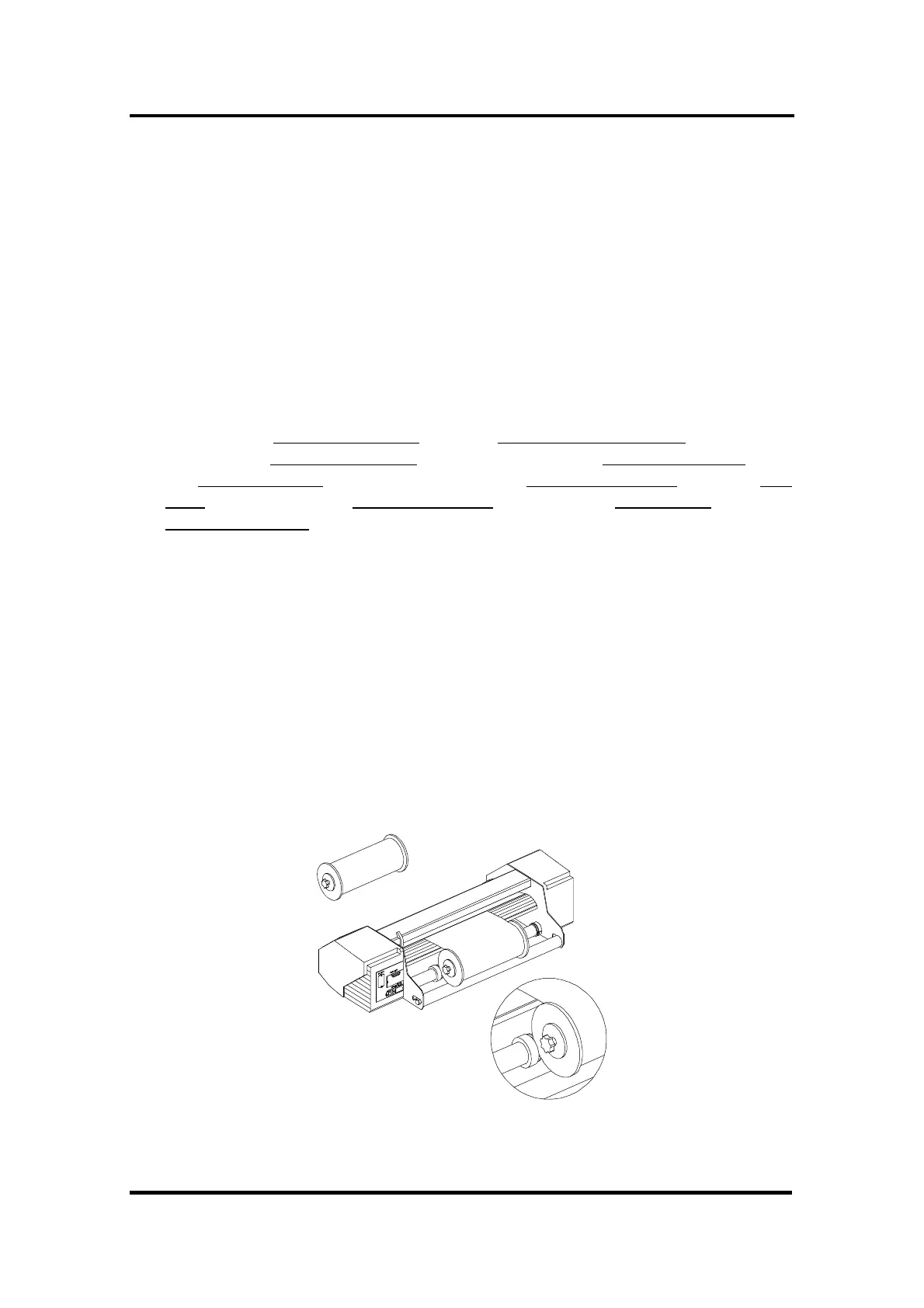

FIGURE 1-16 :
FEEDING ROLL MEDIA USING MEDIA FLANGES
use the last
holes when
using rolls with
media flanges
