SummaSign Pro T-series Cutters User’ s Manual
General Information 1-22
1. Remove the tangential knife by turning the knife holder anticlockwise
with one hand while holding the nose piece in place with the other
hand.

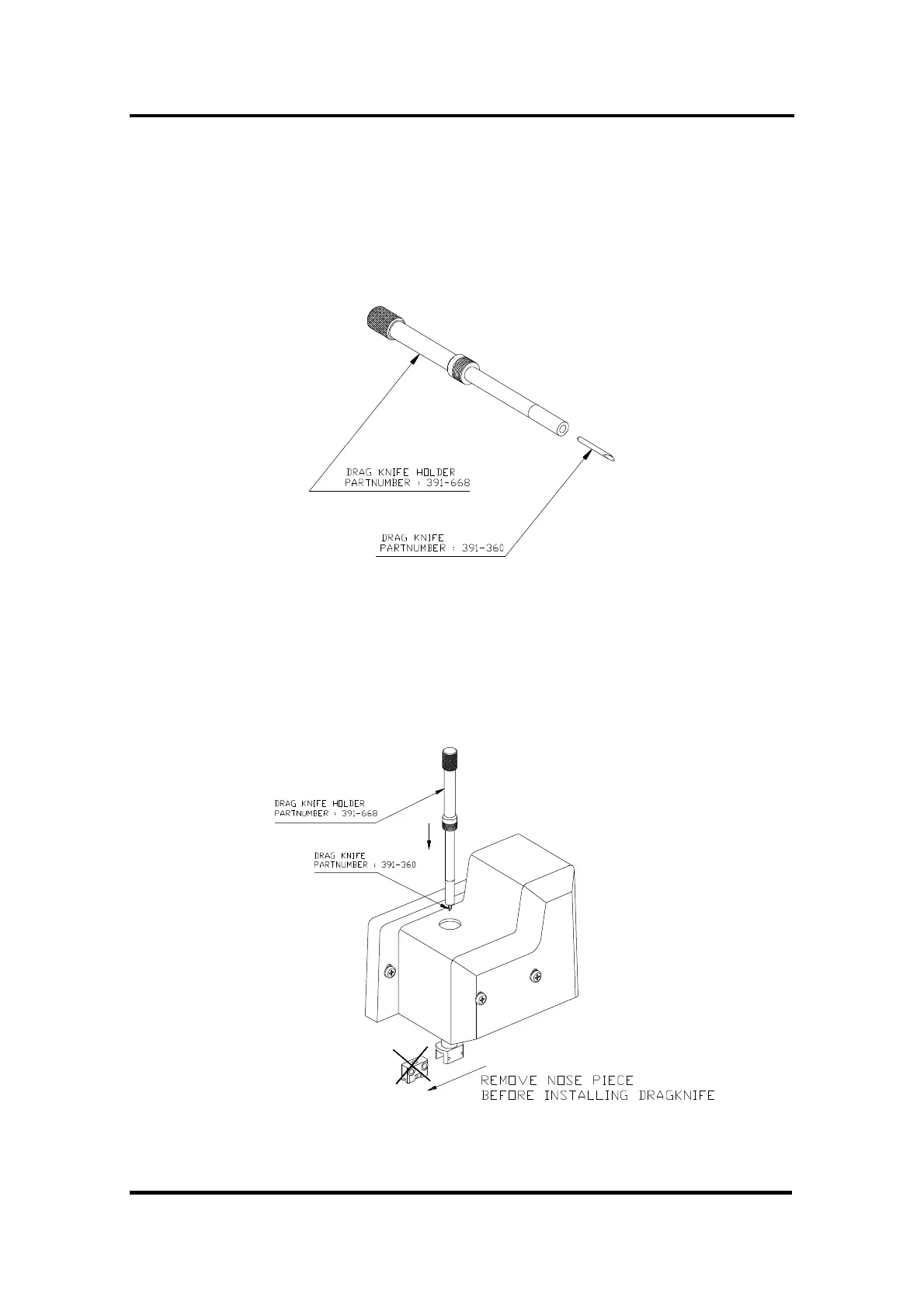

2. Insert the drag blade into the drag knife holder as shown in Figure 1-11.
FIGURE 1-11 :
DRAG KNIFE ASSEMBLY
3. Remove the nose piece (refer to Fig 1-12).
4. Insert the drag knife in the tool shaft as shown in Fig 1-12. Turn the drag
knife holder clockwise while holding the nose piece holder in place.
FIGURE 1-12 :
DRAG KNIFE HOLDER INSERTION
