9-20 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004

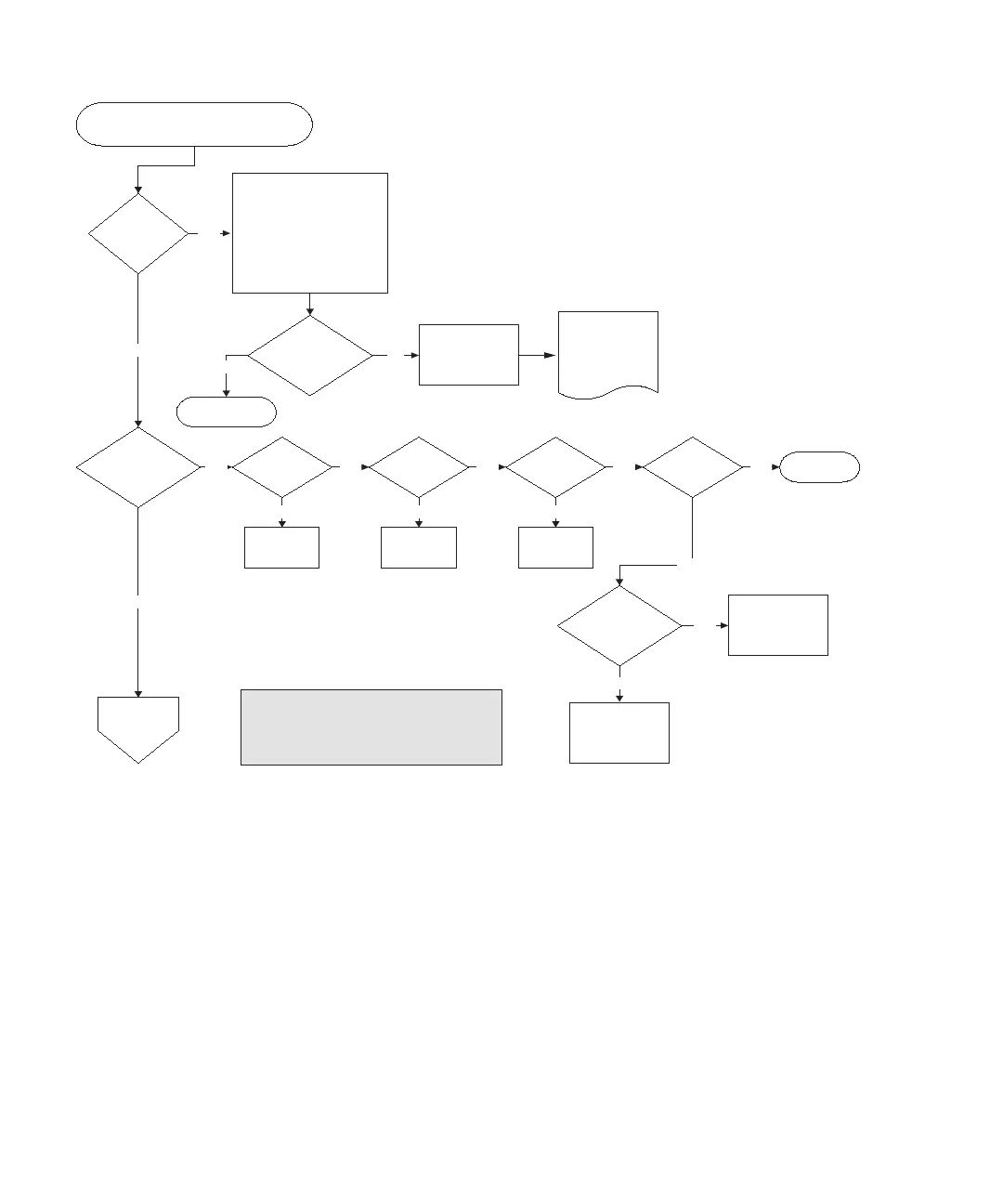

FIGURE 9-5 Front Panel LEDs (FC) Flowchart, 1 of 4
3A
Front panel LEDs problem (FC)
All
front panel
LEDs flashing
amber?
Ye s
LEDs stop
flashing?
No
Are all the
LEDs off during
operation?
Is the power
switch on?
Ye s
No
Is the power
connected?
Is the
power cord
well seated?
Resolved?Ye s Ye s Ye s
Turn it on.
No
Connect it.
No
Seat it.
No
Ye s
No
No
Replace chassis.
Continue with
3B.
Adjust end cap to ensure
reset button is not depressed.
Remove the right end cap.
Check that the Reset button
is not jammed.
Check that LED ribbon cable
in right ear is not loose.
Replace the end cap.
Ye s
Refer to
FRU Installation
Guide for
instructions
No
Is the LED
ribbon cable on the
right ear loose?
Secure the
ribbon cable.
Replace chassis.
Ye s
End
End
--Reseat the FRU that is not operating correctly.
--Swap the questionable FRU with a known-good
FRU from the same array.
Notes
Prior to replacing a chassis, try the following:
