B-8 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004
B.7.1 Single-Port Connection to a Sun StorEdge 3510 FC
JBOD Array
You can connect a Sun StorEdge 3510 FC JBOD array to an FC port, a port on a
single-port HBA, or a single port on a dual-port HBA.
FIGURE B-2 shows an example
of a Sun StorEdge 3510 FC JBOD array with 12 drives, connected to a host computer
over a single loop to a single FC port. In this example, the port is one of a pair of
ports on a dual-port HBA.

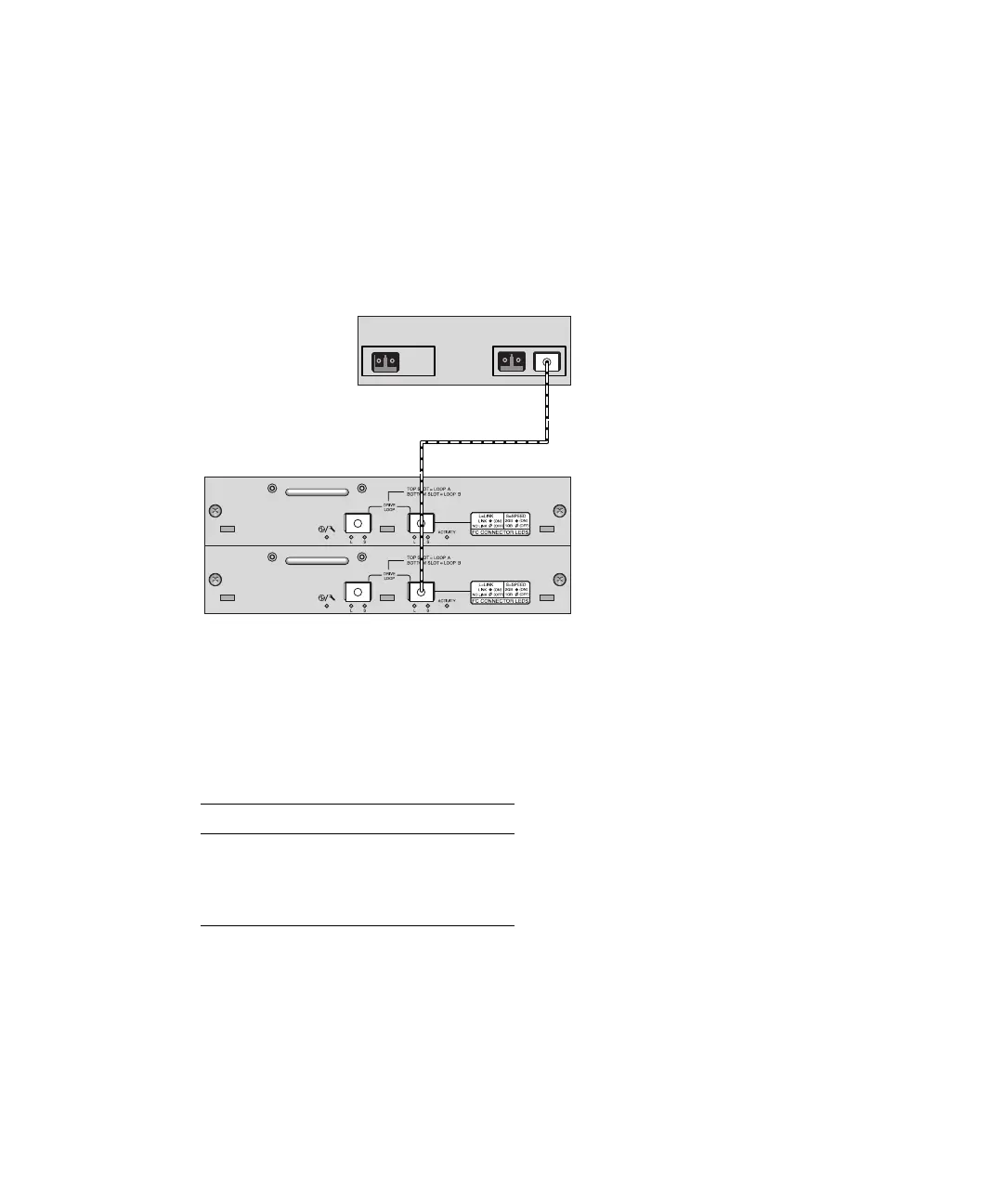

FIGURE B-2 Sun StorEdge 3510 FC JBOD Array Attached to a Single HBA Port
In this example, if the loop ID switch is set to 0, the format command shows 12
drives on this loop, ranging from c1t0d0 to c1t11d0.
The drive identifiers are arranged in four columns of three drives each to reflect the
physical location of these drives in the JBOD. They correspond to the locations of
Disk 1 through Disk 12.
TABLE B-3 Example of 12 Drives Shown on a 12-Disk Sun StorEdge 3510 FC JBOD Array
Connected to a Host Over a Single FC Loop
Drive Identifier
c1t0d0 c1t3d0 c1t6d0 c1t9d0
c1t1d0 c1t4d0 c1t7d0 c1t10d0
c1t2d0 c1t5d0 c1t8d0 c1t11d0
Host computer
JBOD array
