4-6 Sun StorEdge 3000 Family Installation, Operation, and Service Manual • May 2004

4.2.2 Sun StorEdge 3511 FC Array

FIGURE 4-4 identifies the hardware connections on the back of a dual-controller Sun

StorEdge 3511 FC array.

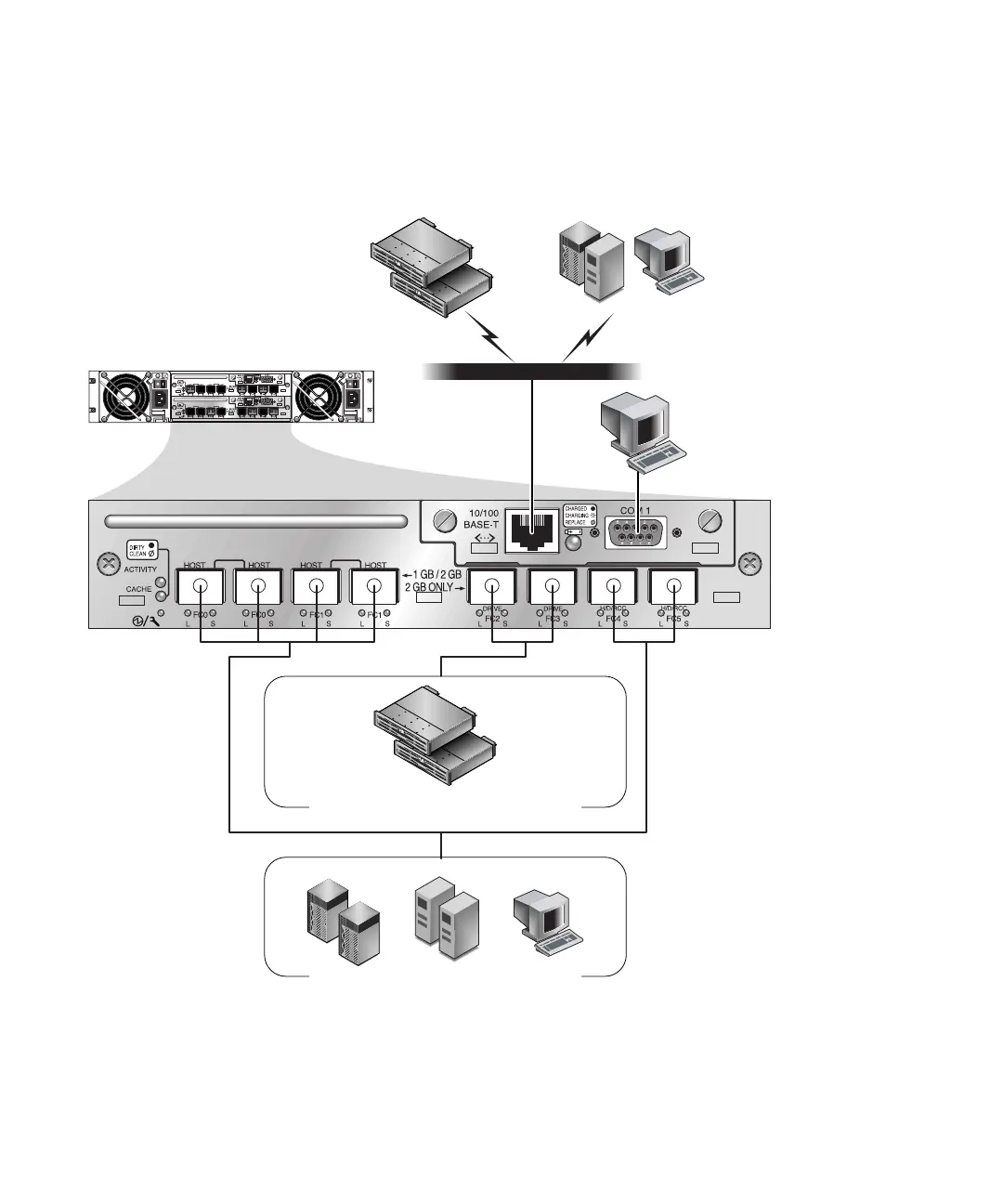

FIGURE 4-4 Hardware Connections on the Back of a Dual-Controller Sun StorEdge 3511 FC Array

application/data servers and consoles

FC device connections

FC expansion units/FC arrays

Management

console

Servers and consoles

FC devices
