C300 series of non-sensor current vector-control inverter manual
Freq.
Analog value
Input lower
limit
[
F2.9
]
[F2.8]
Output freq.
Analog value
Input upper
limit
Positive character
Freq.
Analog value
Input lower
limit
[F2.9]
[F2.8]
Output freq.
Analog value
Input upper
limit
Negative character
0： positive character 1：Negative character
The fourth part of LED (form right to left): Reserved..
The corresponding relation is shown as fig.6-10 between input signal and setting
freq.
Setting freq. set by external analog input will be filtered to eliminate fluctuate. Time
constant of filtering have to appropriate set according to fluctuate of external input
signal.
The parameter is valid only when the frequency input channel F0.1 is set 6.
Setting
Value
Combination setting mode
Setting
Value
Combination setting mode
0
External voltage VC +
External current CC
1 External voltage VC - External current CC
2 External voltage VC + panel setting 3 External voltage VC - panel setting
4 External current + panel setting 5 External current - panel setting
6
External voltage VC + panel setting +
digital setting
7
External voltage VC - panel setting + digital
setting
8
External current + panel setting +
digital setting
9
External current - panel setting + digital
setting
10
Serials interface setting + External
voltage VC
11
Serials interface setting – External
voltage VC
12
Serials interface setting + External
current CC
13
Serials interface setting - External current
CC
14
Serials interface setting + External
voltage VC +panel setting
15
Serials interface setting + External
voltage VC - panel setting
F2.7 External freq. set time constant of filtering Setting range： 0.01 ~ 1.00s
F2.8 Combination setting mode Setting range：0 ~ 19

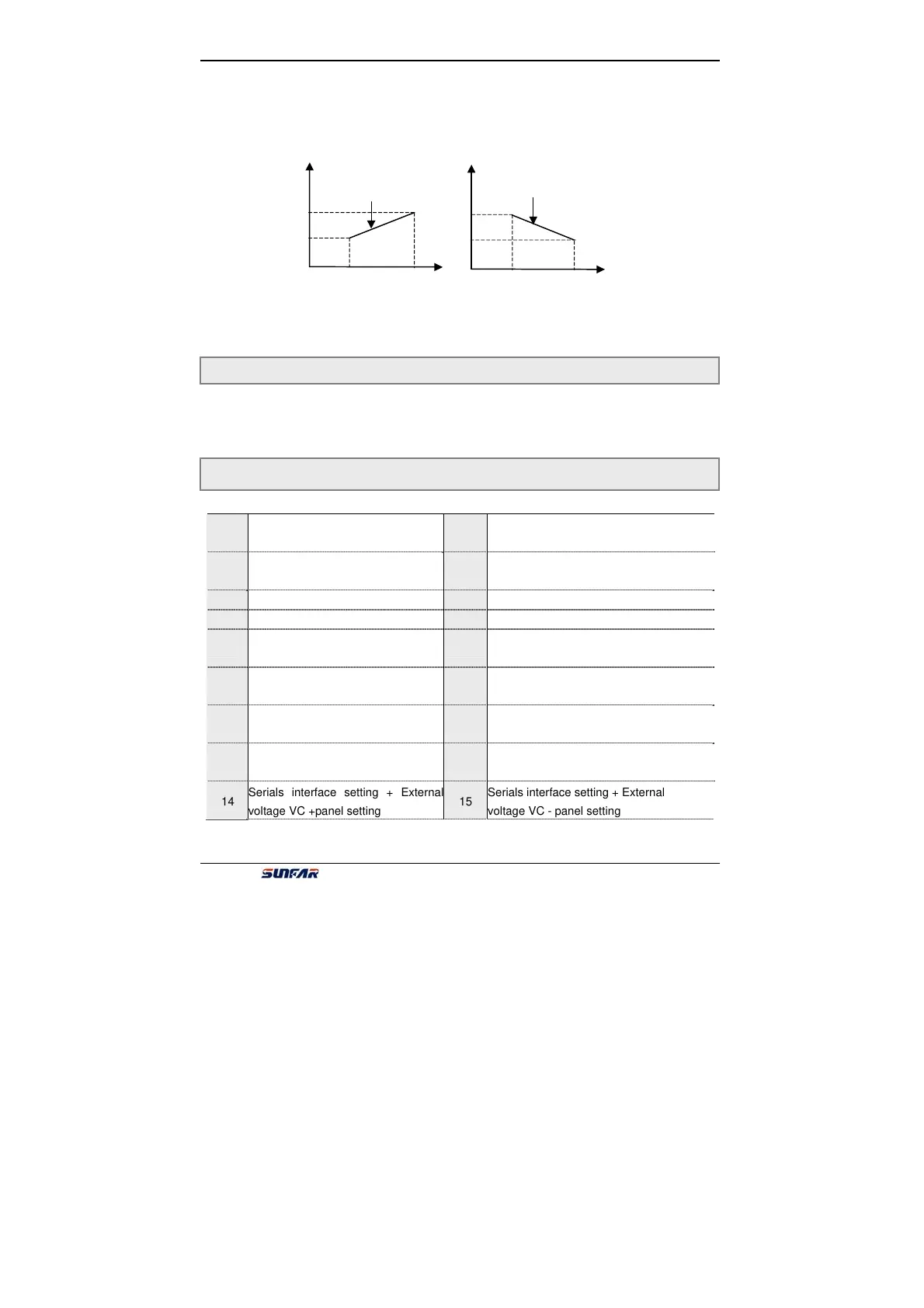

Fig.6-10 corresponding relation between analog input and setting freq.
