12

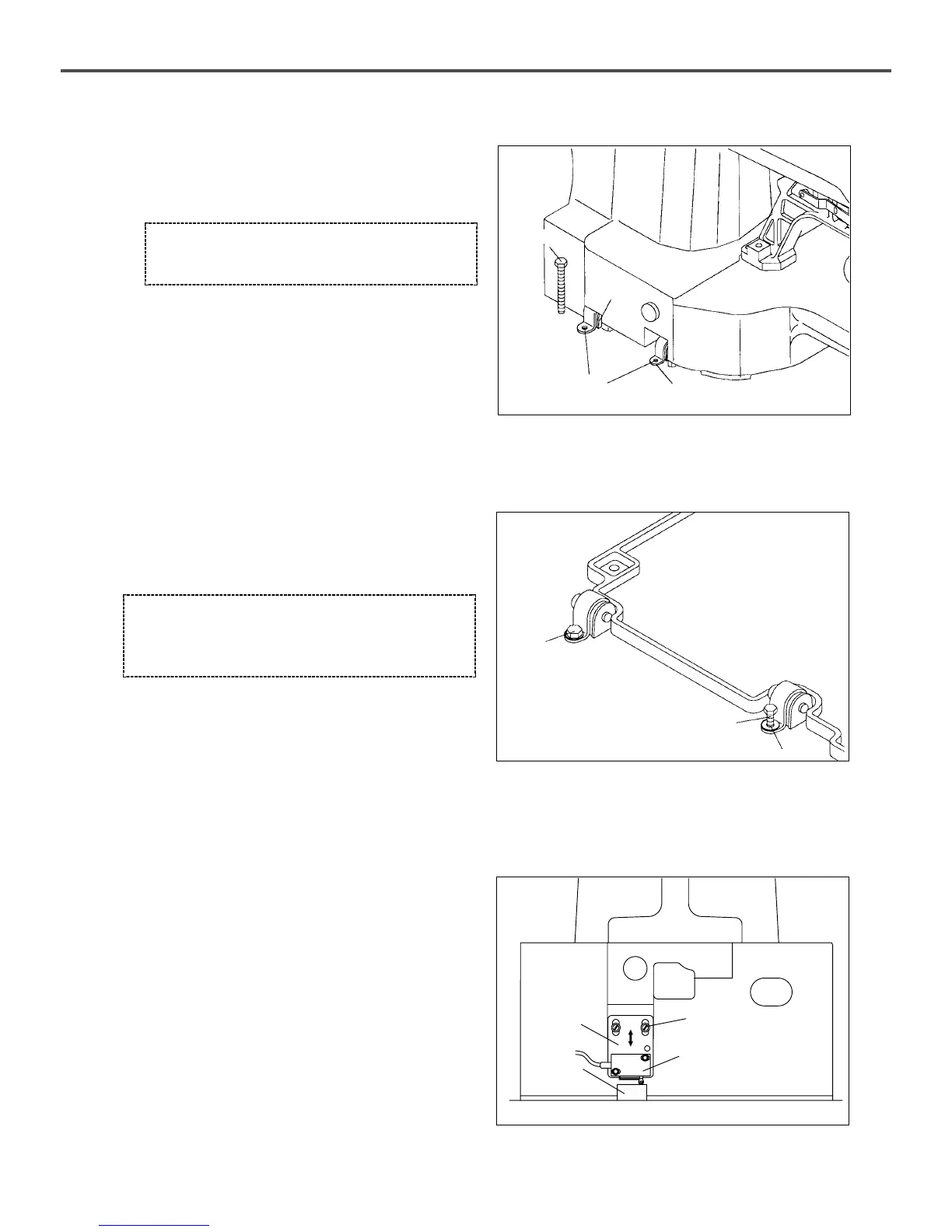

E. Set the machine in the upright position as described in
the Figure. Insert the fixing bolt into the hinge hole at
point① and fix it onto the table.
[Figure 5]
Fixing Bolt
①
①
[Danger]
Since the machine is not fully installed onto the table at
this point, pay extreme caution when you set the
machine in the upright position.
D. Attach the hinge metal and the hinge rubber on the
bed. Insert a fixing bolt into the hinge metal hole at
point① and fix it onto the table.
[Figure 4]
[Danger]
At least two or more people should move the
machine for safety.
①
Fixing Bolt
Hinge
Hinge Rubber
F. In case of SPS/D-B1201 series, assemble the safety
switch bracket ① on the bed as in the figure. Move the
safety switch bracket up and down to make sure that
the safety switch supporting rubber② is tightly
pressed by the safety switch③, and then fasten the
screw④.
[Figure 6]
②
④
③
①
To Next Page
