13

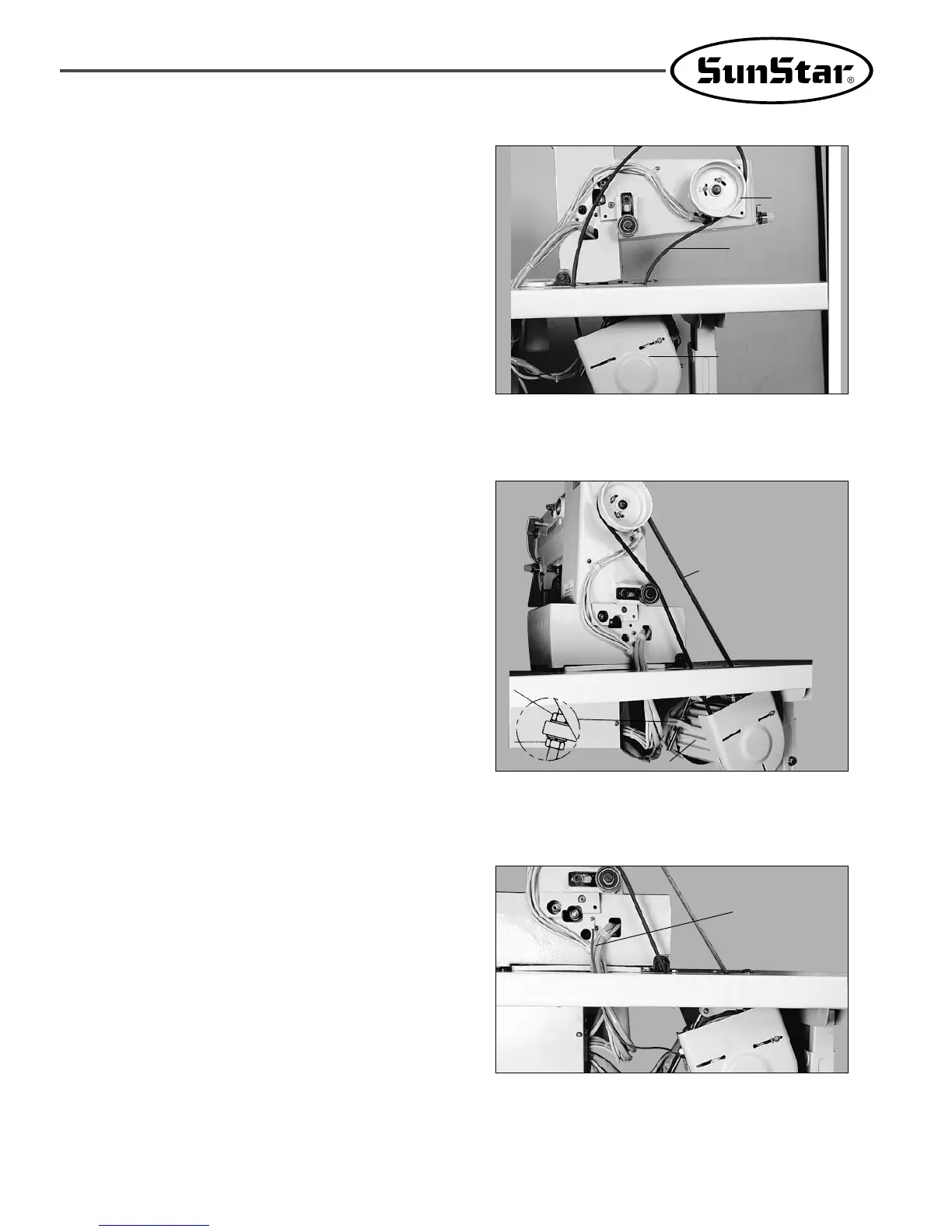

G. While the machine is standing as shown in the Figure,
put the “V”- belt between the pulley and the motor.
(
C-Series)
[Figure 7]
Pulley
V-Belt
Motor Cover
[Figure 8]
H. After connecting the V-belt, unfasten the fixing nuts①
and ② to give tension to the belt (D) by the weight of the
motor (C). Then tighten the nut① and ② consecutively.
(
C-Series)
D
C
①
②
[Figure 9]
I. Be sure to connect the green grounding conductor that
links the motor to the machine. Connect the grounding
conductor wire between the control box and the motor.
(
C-Series)
Grounding
Conductor
To Next Page
