Chapter 3: Maintenance and Component Installation
Installing or Removing Drives
Installing a Drive and Drive Tray
1. Use a tray that is compatible with the cage, and drop the drive into the tray.
Push the drive tray assembly into the cage until is snaps in.

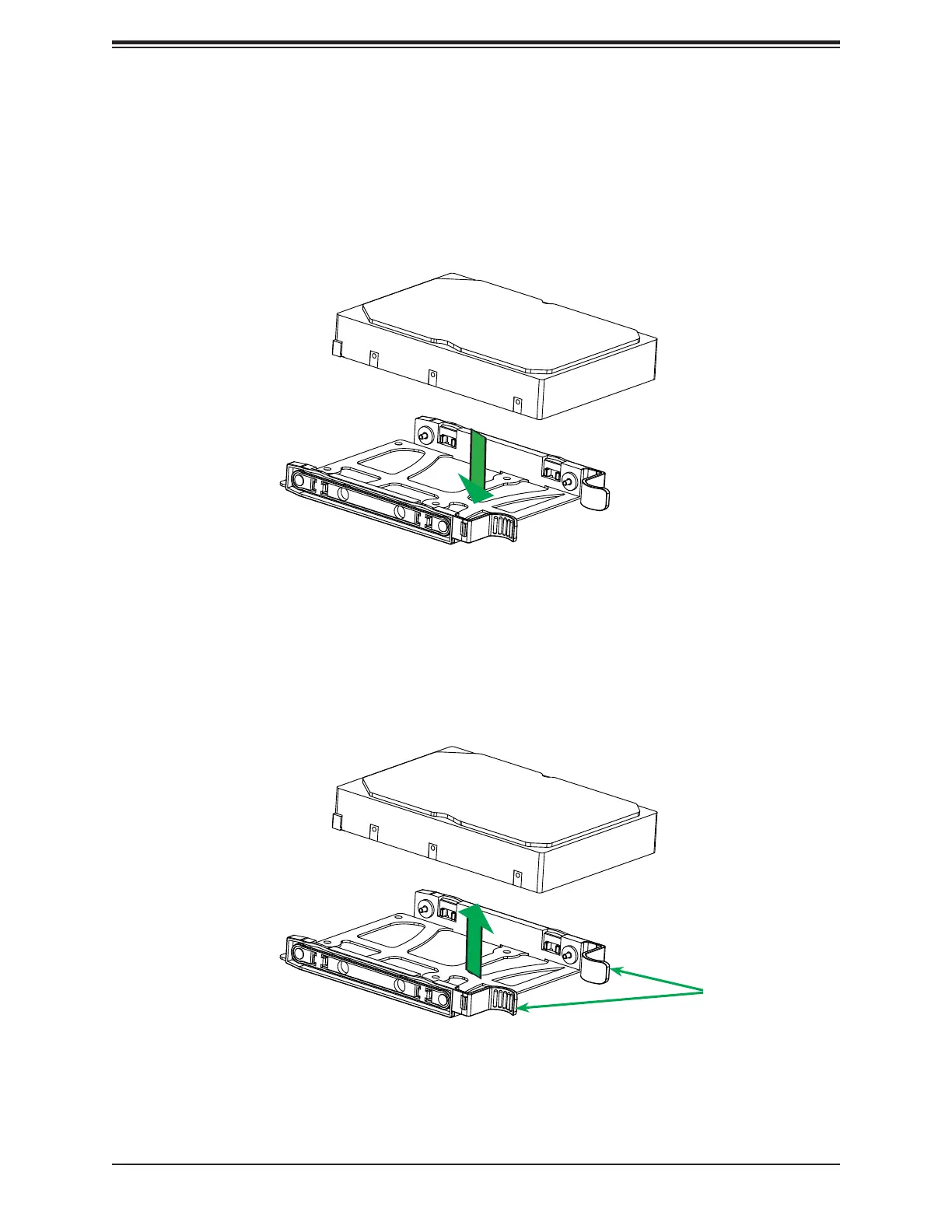

Figure 3-6. Installing Drive onto Tray
Removing Drive and Drive Tray
1. Pinch the release handles and pull the drive tray from the cage.
Remove the drive from the drive tray.
Figure 3-7. Removing Drive from Tray
Release
Handles
