Chapter 3: Maintenance and Component Installation
4. Lift the cover up and out of the chassis.
5. Install the power supply cables.
6. Replace the power supply cover then the left chassis cover before restoring power to
the system.

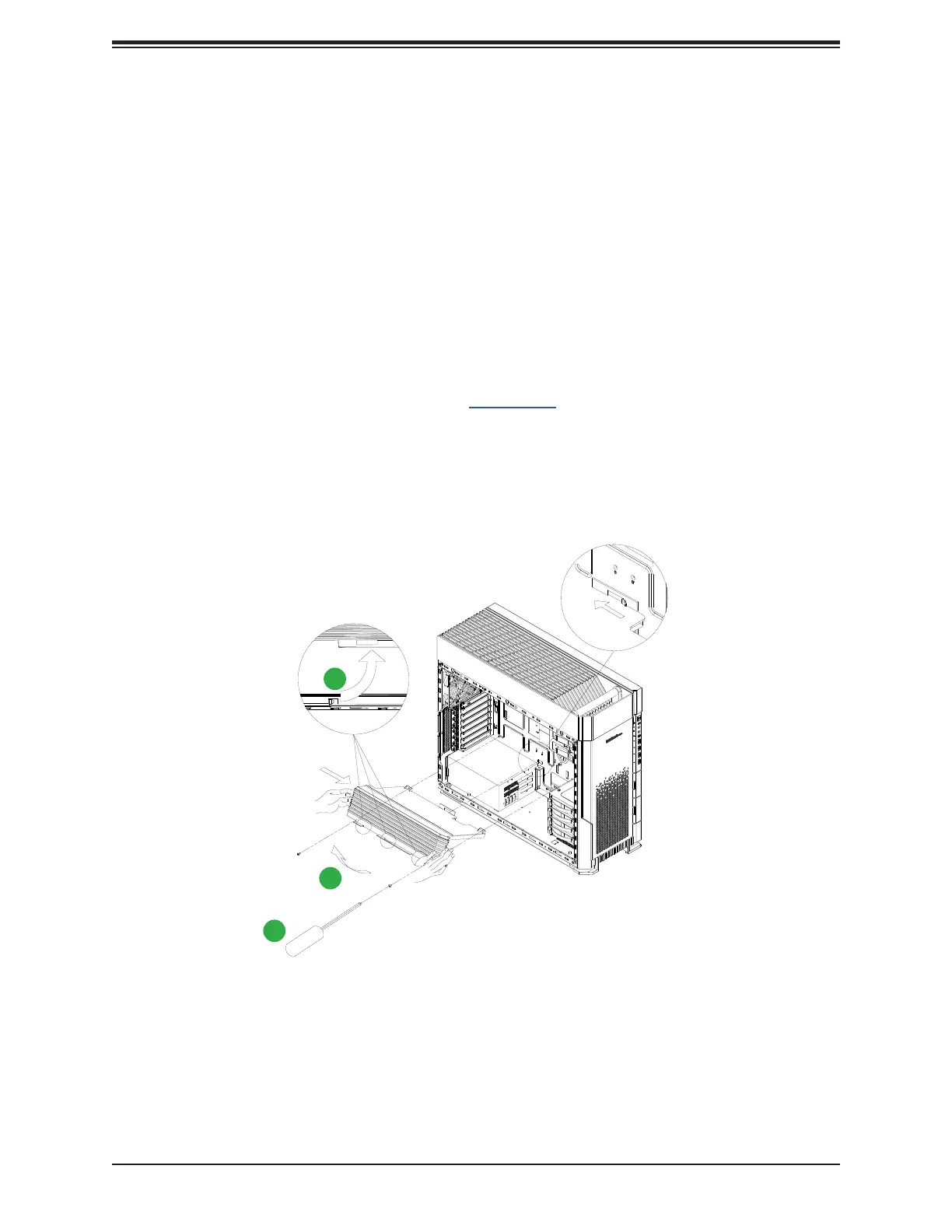

Figure 3-17. Removing the Power Supply Cover
3.8 Power Supply
auto-switching capable. This feature enables it to automatically sense the input voltage and
of installed components in the system total no more than 80% of the power supply rating.
Connect the system to a grounded outlet.
The standard power supply is a modular type that allows you to connect only the wiring you
your system components as needed.
Accessing the Power Supply
1. Power down the system as described in and open the left side chassis
cover.
The power supply is isolated from the rest of the system with a cover. Remove the two
screws at the top of this cover as shown below.
Push in the release tabs along the bottom of the cover to detach it.
4
3
2
