Installing and Removing Drives from Trays
The drives must be inserted into tool-less drive trays before being installed in the system.
Installing a Drive into a Drive Tray
1. Pull out the two securing tabs on the tray as illustrated below.
ake sure the tabs
are in the drive screw holes or the tray will not insert correctly into the chassis. Then
push it into the tray until it locks into place.

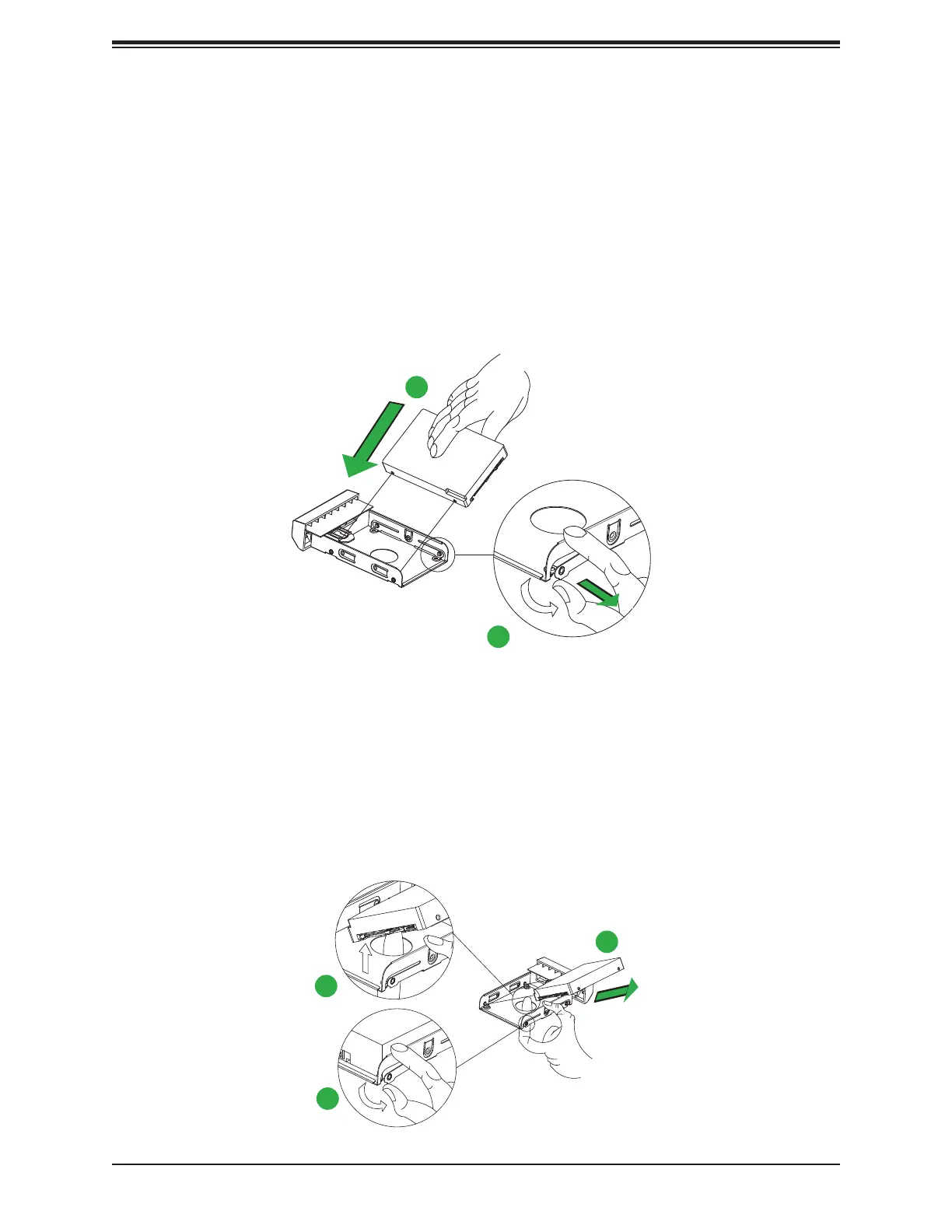

Figure 3-11. Removing a Drive from a Tray
Figure 3-10. Installing a Drive into a Tray
1
2
1
3
2
Removing a Drive from a Drive Tray
1. Pull out the two securing tabs on the tray as illustrated below.

the hole in the tray bottom.
Remove the drive.
