Suzuki Burgman AN400 Service Manual

1A-61 Engine General Information and Diagnosis:
DTC “C41” (P0230-H/L): FP Relay Circuit Malfunction
B705H11104027
Detected Condition and Possible Cause

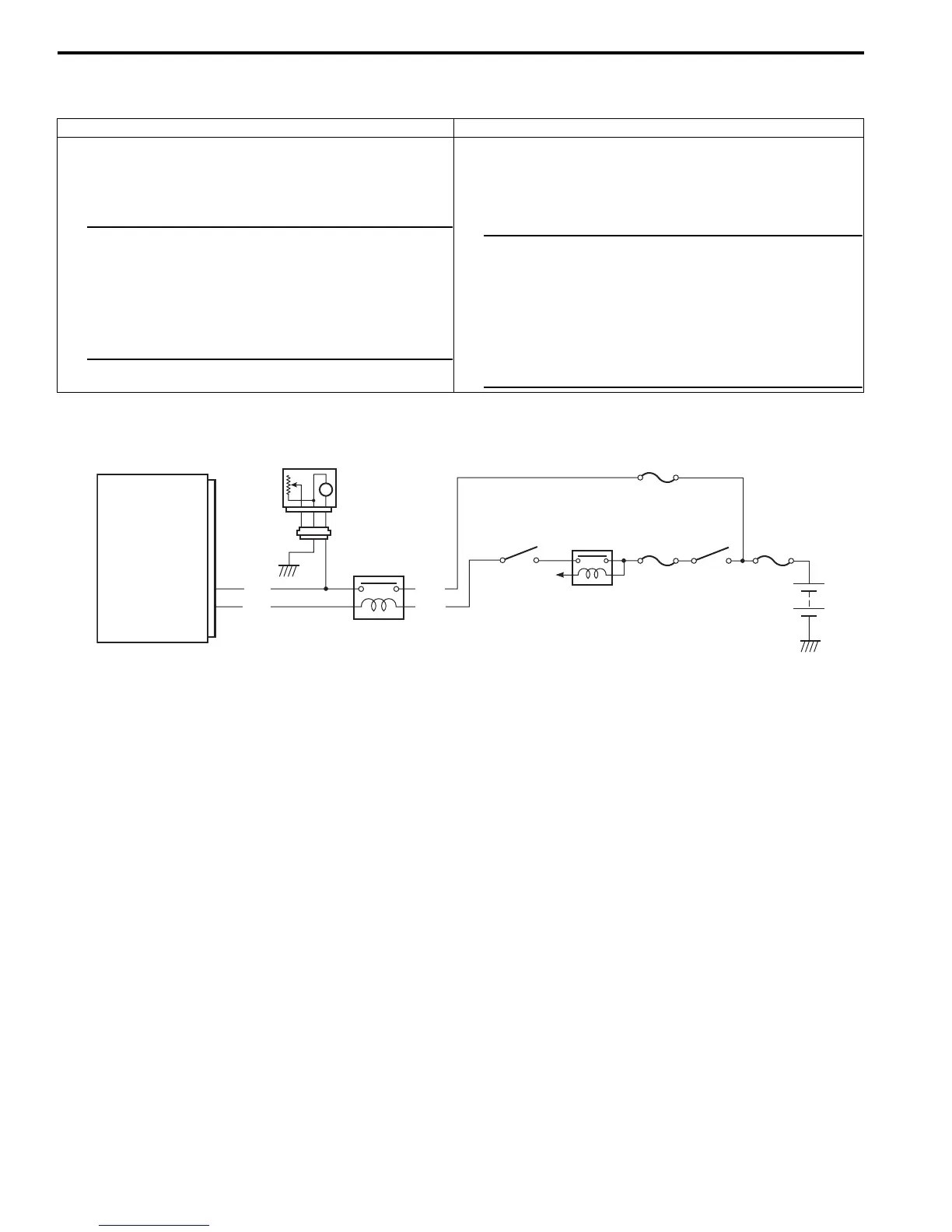

Wiring Diagram
Detected Condition Possible Cause
No voltage is applied to fuel pump although fuel pump
relay is turned ON, or voltage is applied to fuel pump,
although fuel pump relay is turned OFF.
NOTE
• If SDS is used, P0230-H is indicated when
Voltage is applied to fuel pump although
fuel pump relay is turned OFF.
• If SDS is used, P0230-L is indicated when
No voltage is applied to fuel pump although
fuel pump relay is turned ON.
• Fuel pump relay circuit open or short
• Fuel pump relay malfunction
• ECM malfunction
NOTE
• When P0230-H is displayed, it is possible that
fuel pump relay switch circuit is shorted to
power source or fuel pump (switch side) is
faulty.
• When P0230-L is displayed, it is possible that
fuel pump relay coil circuit is open or short,
or fuel pump relay (coil side) is faulty.
ECM
Side-stand
relay
Engine stop
switch
Fuel pump
relay
Fuel pump
Ignition
switch
M
Y/R
VM
FP relay
(11)
(19)
R/BI
O/W
Y/Bl
To side-stand
switch
I705H1110101-05

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
