Suzuki Burgman AN400 Service Manual

1F-5 Engine Cooling System:

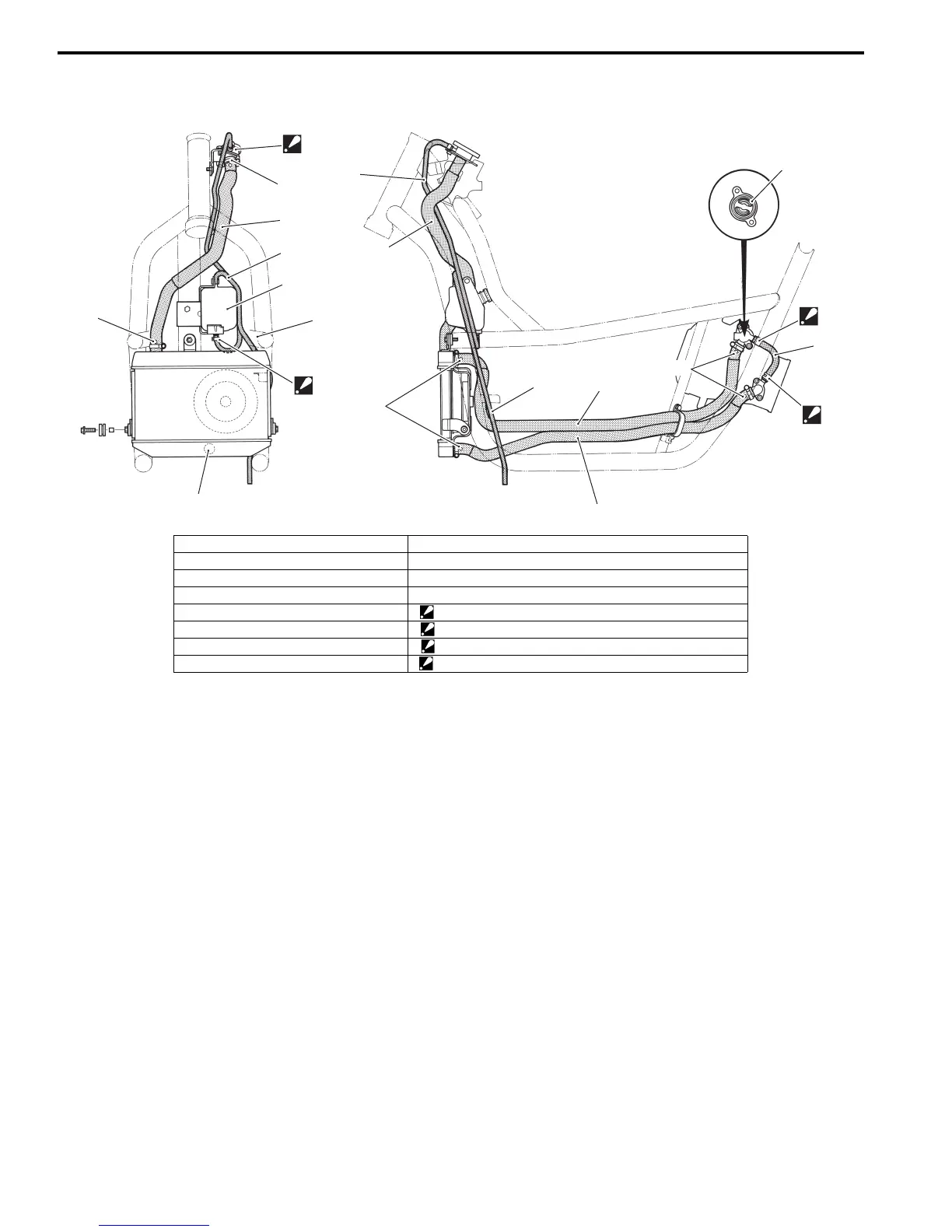

Radiator Hose Routing Diagram
B705H11602002
Component Location
Engine Cooling System Components Location
B705H11603001
Refer to “Electrical Components Location in Section 0A (Page0A-7)”.
1
3
9
1
2
2
3
5
6
7
8
“A”
“B”
“B”
“D”
“G”
4
“C”
“E”
“F”
I705H1160056-02
1. Reservoir tank inlet hose 9. Cooling fan thermo-switch
2. Conduction hose “A”: Yellow making
3. Reservoir tank overflow hose “B”: White marking
4. Radiator inlet hose “C”: Pink marking
5. Radiator outlet hose “D”: The clamp end should face to engine side.
6. Thermostat “E”: The clamp end should face forward.
7. Water by-pass hose “F”: The clamp end should face downward.
8. Reservoir tank “G”: The clamp end should face to left side.

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
