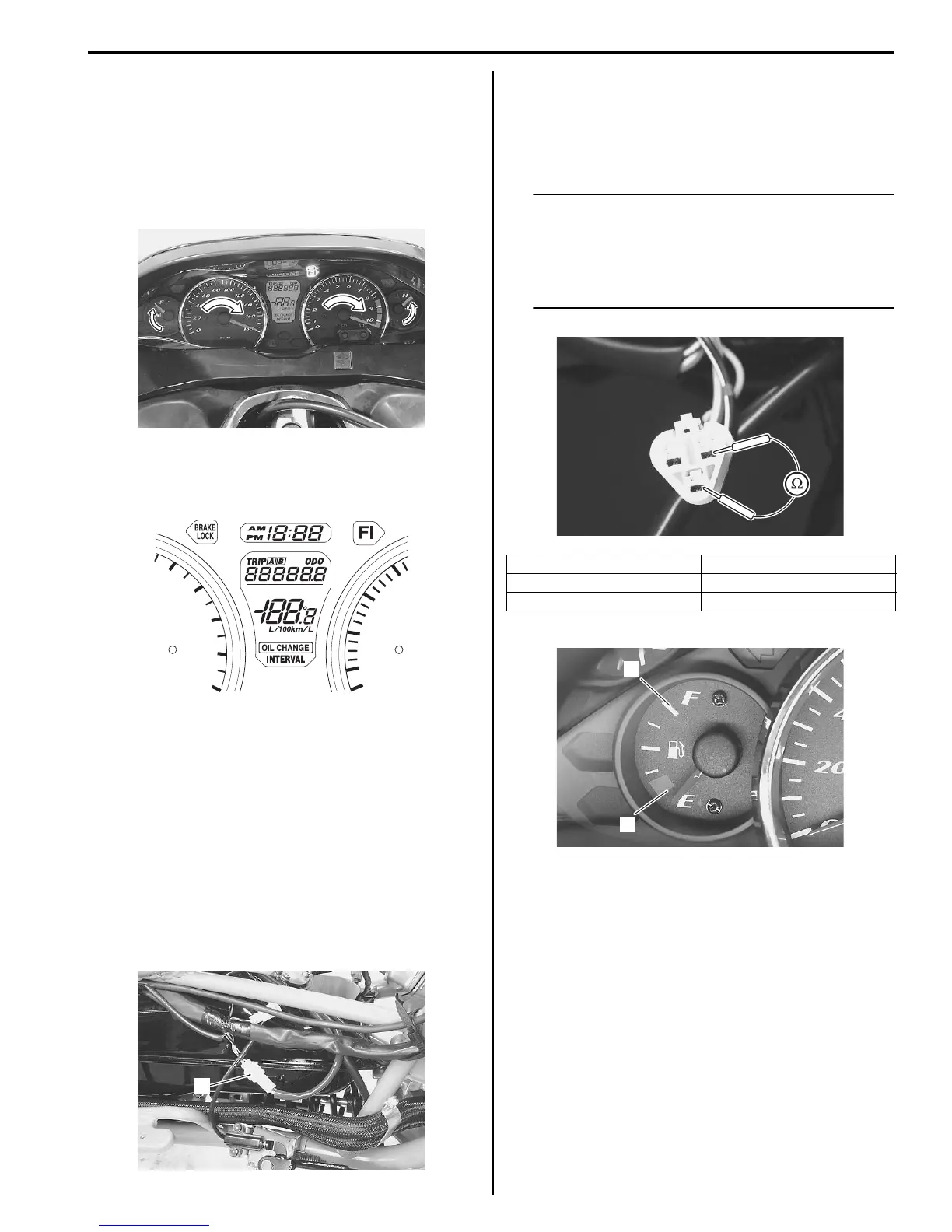

Combination Meter / Fuel Meter / Horn: 9C-2
Combination Meter Inspection
B705H19306015
Check that the illumination LED on the meter panel lights
up and the indicating needle each on fuel meter,
speedometer, tachometer and coolant temperature
sensor once moves to the maximum and then returns to
the home position immediately after the ignition switch
has been turned on.
At the same time, check that the FI lamp and each of the
clock and multi-information meter segments turn on and
thereafter go off to resume the normal display.
Check that the other LEDs (turn signal indicator, high
beam indicator and brake-lock indictor) turn on with the
respective switches operated. If the LED does not light
up, inspect the wiring harness and connectors. If no
abnormal condition is found, replace the combination
meter.
Fuel Level Meter Inspection
B705H19306016
Inspect the fuel level meter in the following procedures:
1) Remove the foot board and fuel pump coupler (1).
Refer to “Footboard Removal and Installation in
Section 9D (Page9D-21)”.
2) Check that the fuel level meter operates properly
when a resistor is connected between the terminals
of fuel pump wiring coupler (Y/B and B/W) on the
wiring harness side. If any abnormal condition is
noted, replace the combination meter.
NOTE
• Prior to the inspection, check that the fuel
gauge is functioning properly.
• When reading the meter indication, wait at
least 20 seconds after the resistor has
been connected.
I705H1930002-01
I705H1930008-01
1
I705H1930003-01
Resister Meter indication
130 Ω (1)
10 Ω (2)
I705H1930004-01
1
2
I705H1930005-05
