Suzuki Burgman AN400 Service Manual

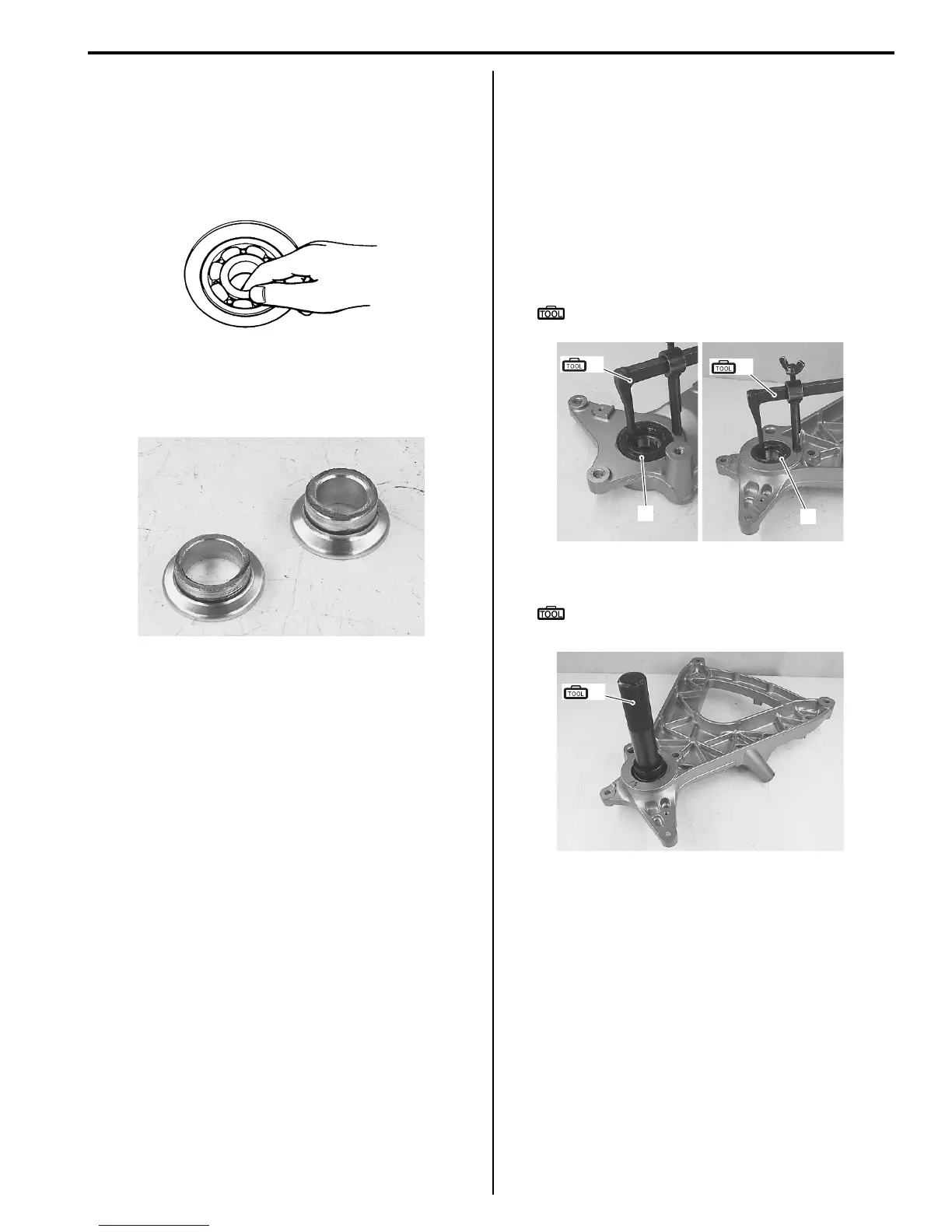

Rear Suspension: 2C-8
Bearing
Inspect the play of the bearings by finger while they are
in the rear swingarm. Rotate the inner race by finger to
inspect for abnormal noise and smooth rotation. Replace
the bearing in the following procedures if there is
anything unusual. Refer to “Rear Swingarm Dust Seal /
Bearing Removal and Installation (Page2C-8)”.
Collar
Inspect the collar for wear or damage. If any defects are
found, replace it with a new one.
Rear Swingarm Dust Seal / Bearing Removal
and Installation
B705H12306026
Refer to “Rear Suspension Assembly Construction
(Page2C-2)”.
Removal
1) Remove the rear swingarm. Refer to “Rear
Swingarm Removal and Installation (Page2C-6)”.
2) Remove the dust seals (1) and (2) using the special
tool.
Special tool
(A): 09913–50121 (Oil seal remover)
3) Remove the bearing using the special tool.
Special tool
(B): 09913–70210 (Bearing installer set)
I649G1240015-01
I705H1230028-01
2
1
(A)
(A)
I705H1230029-02
(B)
I705H1230030-02

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
