Suzuki Burgman AN400 Service Manual

1D-2 Engine Mechanical:

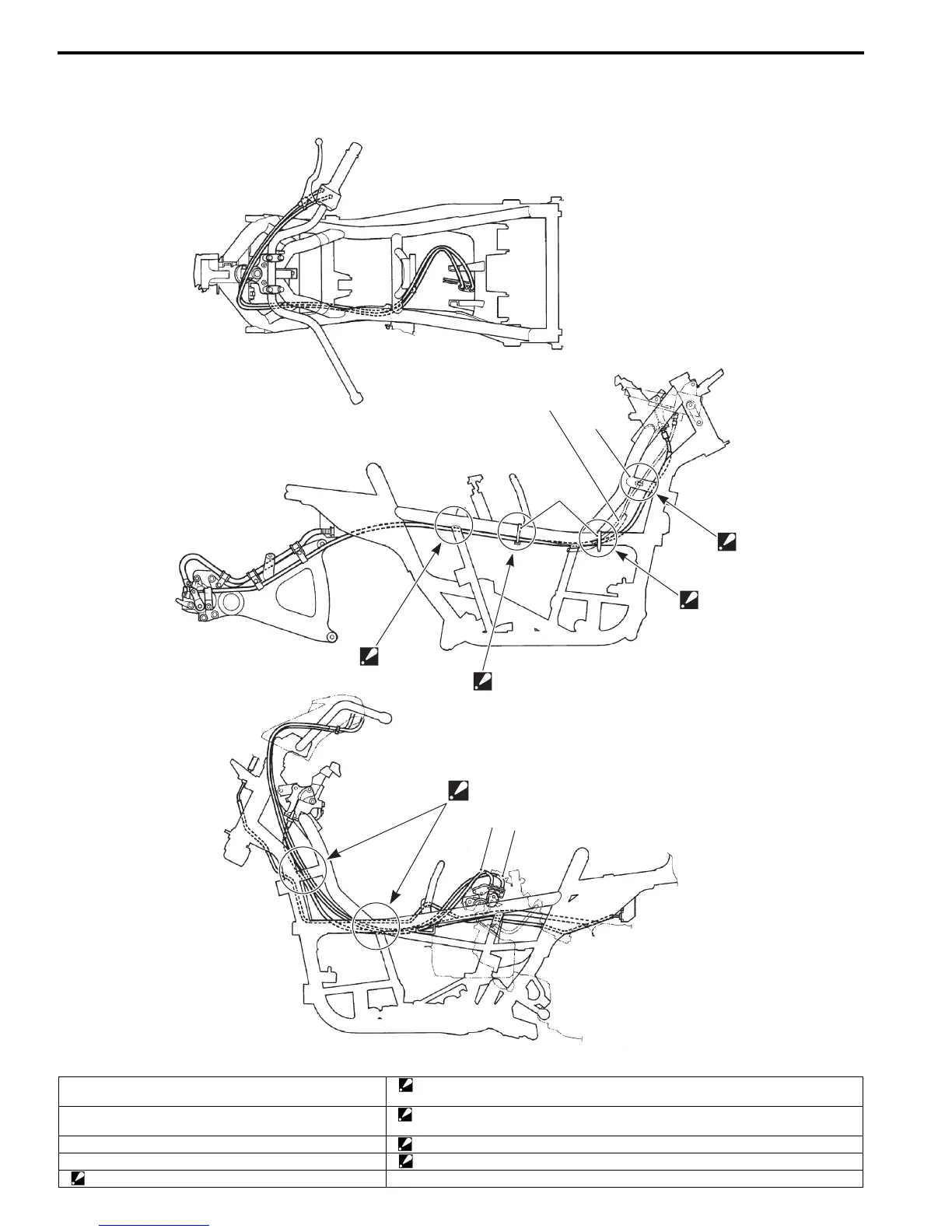

Throttle Cable Routing Diagram
B705H11402003
“E”
3
4
2
1
1
“D”
“C”
“A”
“B”
I705H1140175-02
1. Clamp “B”: Pass the throttle cables through under and inside of the frame.
Bind the brake-lock cable, starter motor lead wire and seat-lock cable together.
2. Wire harness “C”: Pass the throttle cables through inside of the frame.
Bind the parking brake cable starter motor lead wire and seat-lock cable together.
3. Throttle cable No. 1 “D”: Pass the throttle cables through inside of the frame.
4. Throttle cable No. 2 “E”: Pass the throttle cables through inside of the frames.
“A”: Pass the throttle cables through inside of the frame.

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
