Suzuki Burgman AN400 Service Manual

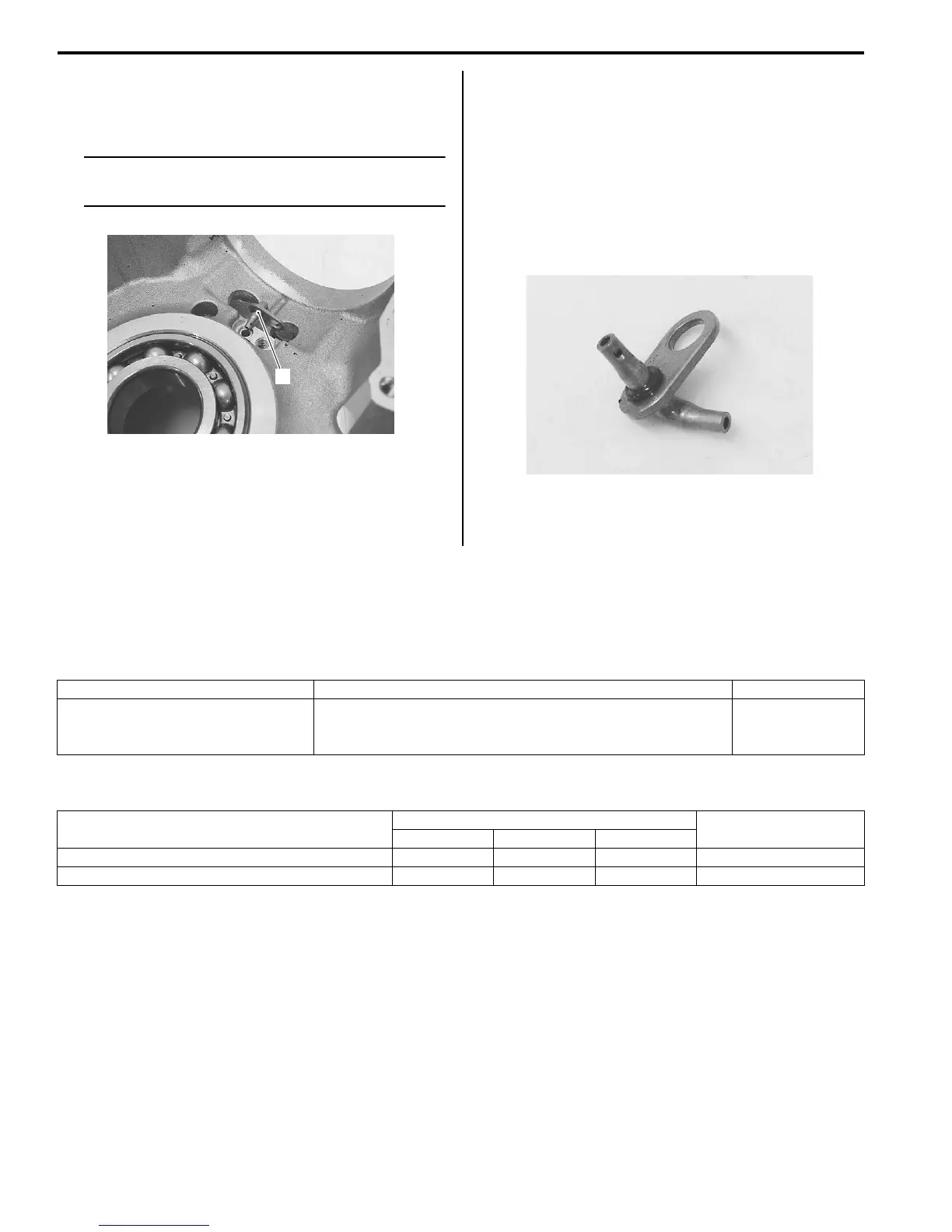

1E-6 Engine Lubrication System:
Installation
Install the piston cooling nozzle in the reverse order of
removal. Pay attention to the following point:
NOTE
Before installing, replace the O-ring (1) with a
new one and coat the O-ring with engine oil.
Piston Cooling Nozzle Inspection
B705H11506021
Inspect the piston cooling nozzle in the following
procedures:
1) Remove the piston cooling nozzle. Refer to “Piston
Cooling Nozzle Removal and Installation (Page1E-
5)”.
2) Inspect the piston cooling nozzle for clogging. If it is
clogged, clean its oil passage with a proper wire or
compressed air.
3) Install the piston cooling nozzle. Refer to “Piston
Cooling Nozzle Removal and Installation (Page1E-
5)”.
Specifications
Service Data
B705H11507002
Oil Pump
Tightening Torque Specifications
B705H11507003
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque Specifications in Section
0C (Page0C-7)”.
1
I705H1150010-01
I705H1150011-01
Item Standard Limit
Oil pressure (at 60 °C, 140 °F)
Above 30 kPa (0.3 kgf/cm
2
, 4.27 psi)
Below 110 kPa (1.1 kgf/cm
2
, 15.64 psi)
at 3 000 r/min
—
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Main oil gallery plug 16 1.6 11.5 )(Page1E-4)
Oil pump mounting bolt 10 1.0 7.0 )(Page1E-5)

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
