Suzuki Burgman AN400 Service Manual

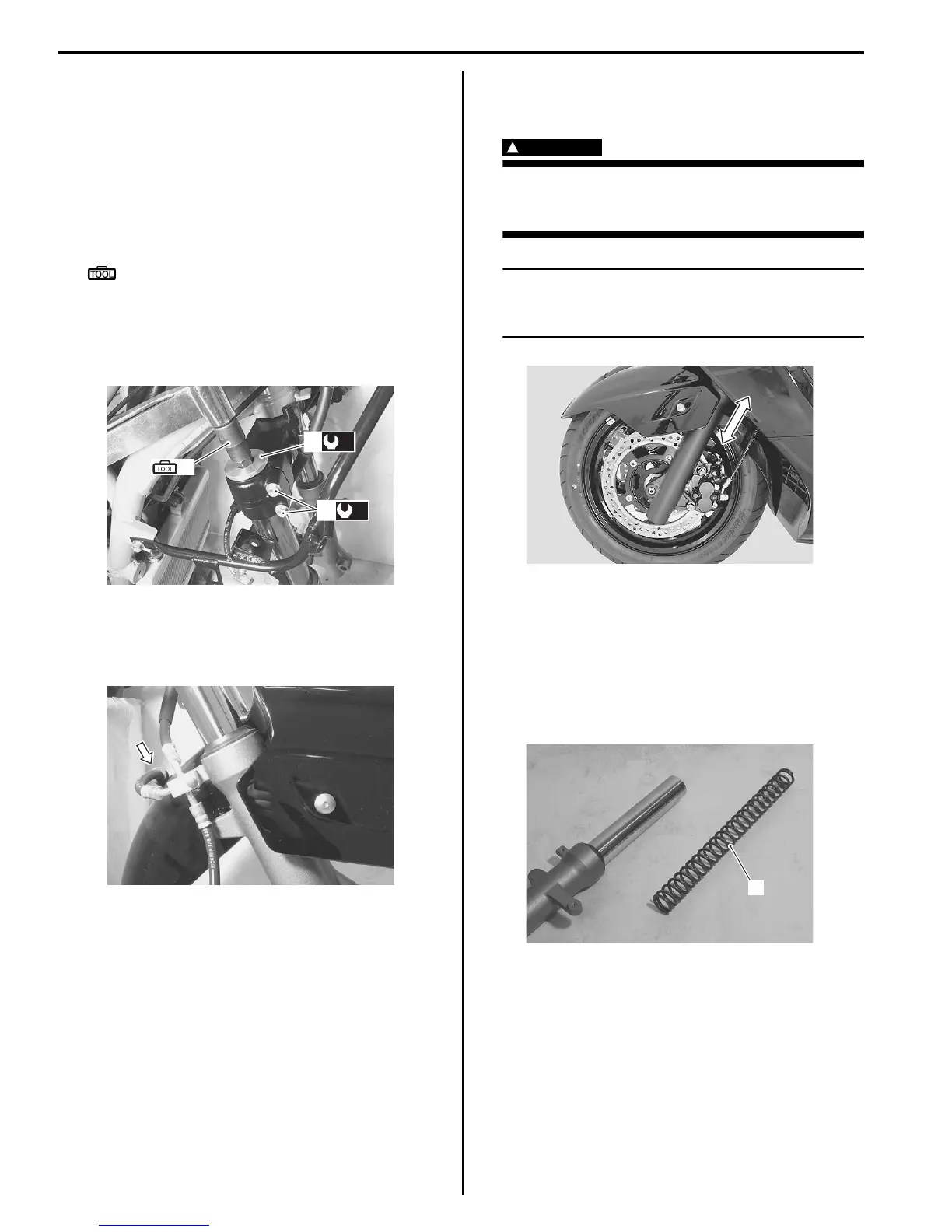

2B-3 Front Suspension:
3) Install the washer and temporarily tighten the front
fork cap bolt and tighten the front fork clamp bolts (1)
to the specified torque.
Tightening torque
Front fork clamp bolt (a): 23 N·m (2.3 kgf-m, 16.5
lb-ft)
4) Tighten the front fork cap bolt (2) to the specified
torque using the special tool.
Special tool
(A): 09940–30230 (Socket hexagon (17
mm))
Tightening torque
Front fork cap bolt (b): 45 N·m (4.5 kgf-m, 32.5
lb-ft)
5) Install the front fender.
6) Tighten the brake hose clamp bolt.
7) Connect the brake hose clamp to the front fender.
8) Install the front wheel assembly. Refer to “Front
Wheel Assembly Removal and Installation in Section
2D (Page2D-4)”.
WARNING
!
After remounting the brake caliper, pump the
brake lever until the pistons push the pads
correctly.
NOTE
Before tightening the front axle and front axle
pinch bolts, move the front fork up and down
four or five times.
Front Fork Disassembly and Assembly
B705H12206008
Refer to “Front Fork Removal and Installation (Page2B-
2)”.
Disassembly
1) Remove the front fork spring (1).
(A)
(a)
1
(b)
2
I705H1220005-01
I705H1220006-03
I705H1240027-01
1
I705H1220007-01
