Suzuki Burgman AN400 Service Manual

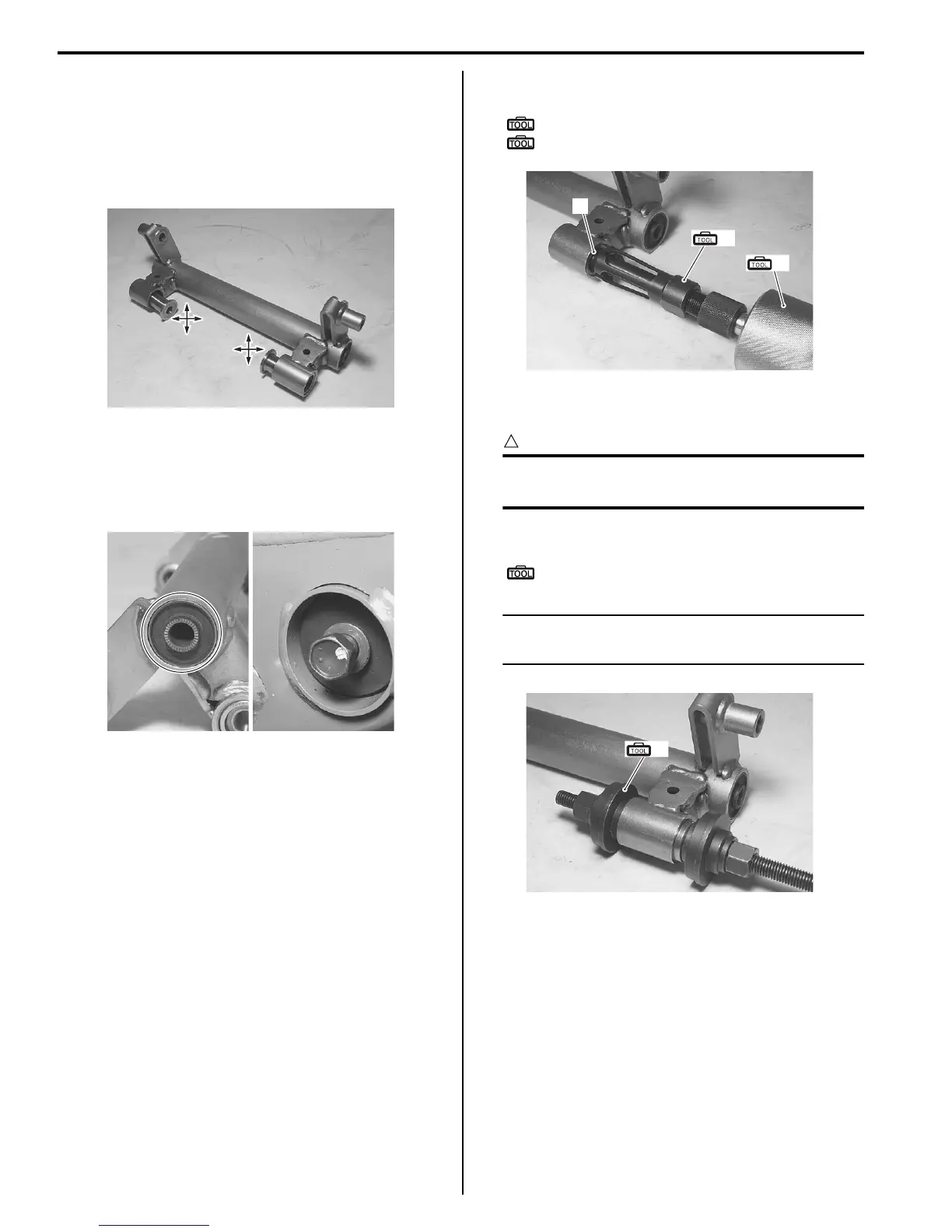

2C-13 Rear Suspension:
Bearing
1) Insert the spacers into the bearings.
2) Check the play by moving the spacers up and down.
If excessive play is noted, replace the bearing with a
new one. Refer to “Crankcase Bracket Bearing
Removal and Installation (Page2C-13)”.
Rubber Parts
Inspect the rubber damper and bushing for crack or
other damage. If any defects are is found, replace them
with the new ones.
Crankcase Bracket Bearing Removal and
Installation
B705H12306023
Removal
1) Remove the crankcase bracket. Refer to “Crankcase
Bracket Removal and Installation (Page2C-12)”.
2) Remove the bearing (1) using the special tools.
Special tool
(A): 09923–74511 (Bearing puller)
(B): 09930–30104 (Sliding shaft)
Installation
CAUTION
!
The removed bearings must be replaced with
the new ones.
1) Install the bearing using the special tool.
Special tool
(A): 09924–84521 (Bearing installer set)
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
2) Install the crankcase bracket. Refer to “Crankcase
Bracket Removal and Installation (Page2C-12)”.
I705H1230019-01
I705H1230020-01
1
(A)
(B)
I705H1230021-01
(A)
I705H1230022-03

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
