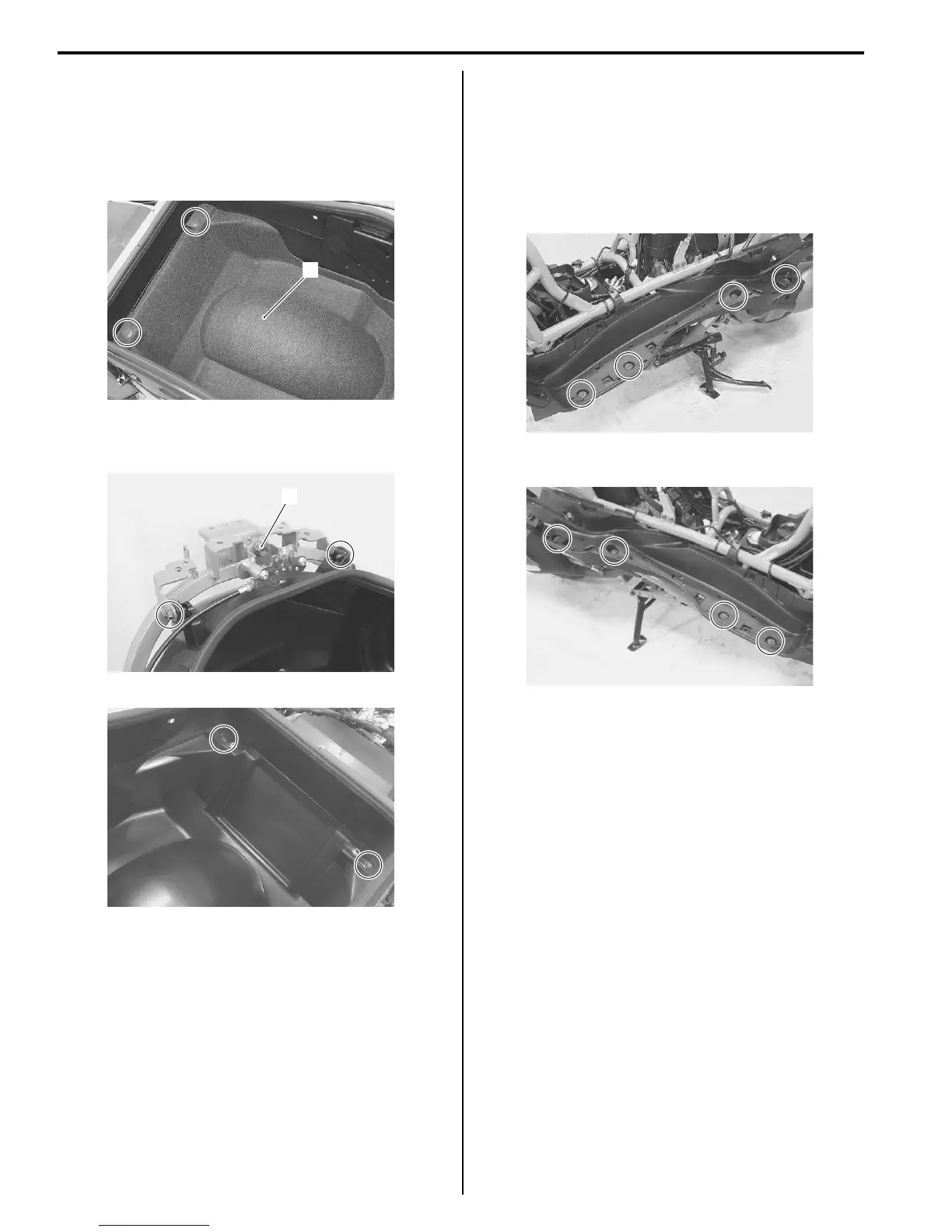

Suzuki Burgman AN400 Service Manual

9D-21 Exterior Parts:
Helmet Box Removal and Installation
B705H19406023
Removal
1) Remove the frame covers. Refer to “Frame Cover
Removal and Installation (Page9D-20)”
2) Remove the mat (1).
3) Remove the helmet box by removing the seat lock
bolt (2) and helmet box bolts.
Installation
Install the helmet box in the reverse order of removal.
Footboard Removal and Installation
B705H19406024
Removal
1) Remove the side leg shields, front box and frame
covers. Refer to “Side Leg Shield Removal and
Installation (Page9D-15)”, “Front Box Removal and
Installation (Page9D-18)” and “Frame Cover
Removal and Installation (Page9D-20)”.
2) Remove the left and right footboards.
Installation
Install the footboard in the reverse order of removal.
1
I705H1940044-01
2
I705H1940045-01
I705H1940046-01
I705H1940047-01
I705H1940048-01

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
