Suzuki Burgman AN400 Service Manual

Exterior Parts: 9D-14

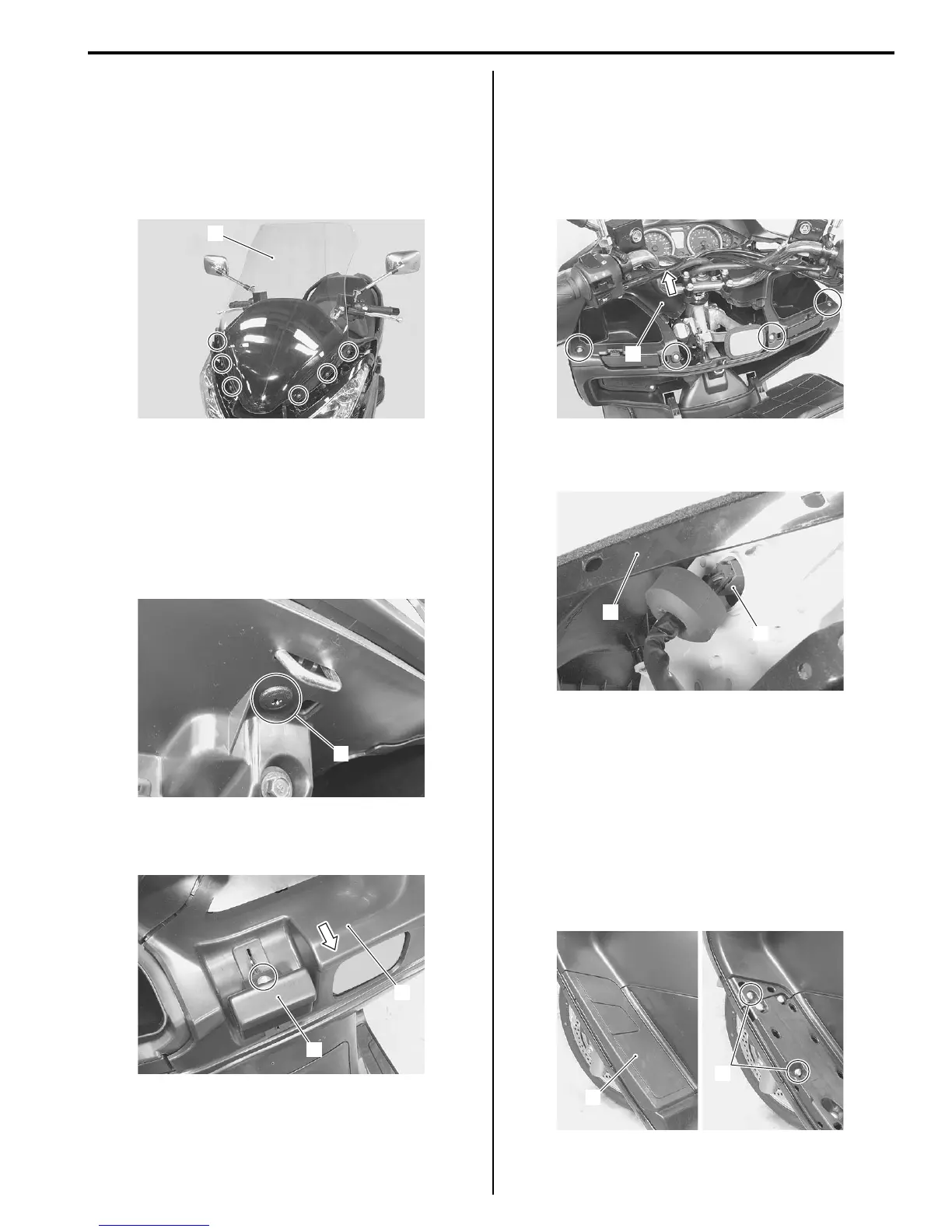

Wind Screen Removal and Installation
B705H19406006
Removal
1) Remove the front leg shield cover. Refer to “Front
Leg Shield Cover Removal and Installation
(Page9D-13)”.
2) Remove the wind screen (1).
Installation
Install the wind screen in the reverse order of removal.
Front Panel Removal and Installation
B705H19406007
Removal
1) Open the front box and remove the fastener (1).
2) Remove the brake-lock lever (2).
3) Remove the front panel (3).
Installation
Install the front panel in the reverse order of removal.
Meter Panel Removal and Installation
B705H19406008
Removal
1) Remove the wind screen. Refer to “Wind Screen
Removal and Installation (Page9D-14)”.
2) Remove the screws and detach the meter panel
assembly (1) forward.
3) Disconnect the meter coupler (2) and remove the
meter panel.
Installation
Install the meter panel in the reverse order of removal.
Front Leg Shield Removal and Installation
B705H19406009
Removal
1) Remove the meter panel assembly. Refer to “Meter
Panel Removal and Installation (Page9D-14)”.
2) Remove the left and right front floor mats (1) and
screws (2).
1
I705H1940006-01
1
I705H1940007-01
3
2
I705H1940009-03
1
I705H1940011-02
1
2
I705H1940012-01
2
1
I705H1940013-01

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
