Suzuki Burgman AN400 Service Manual

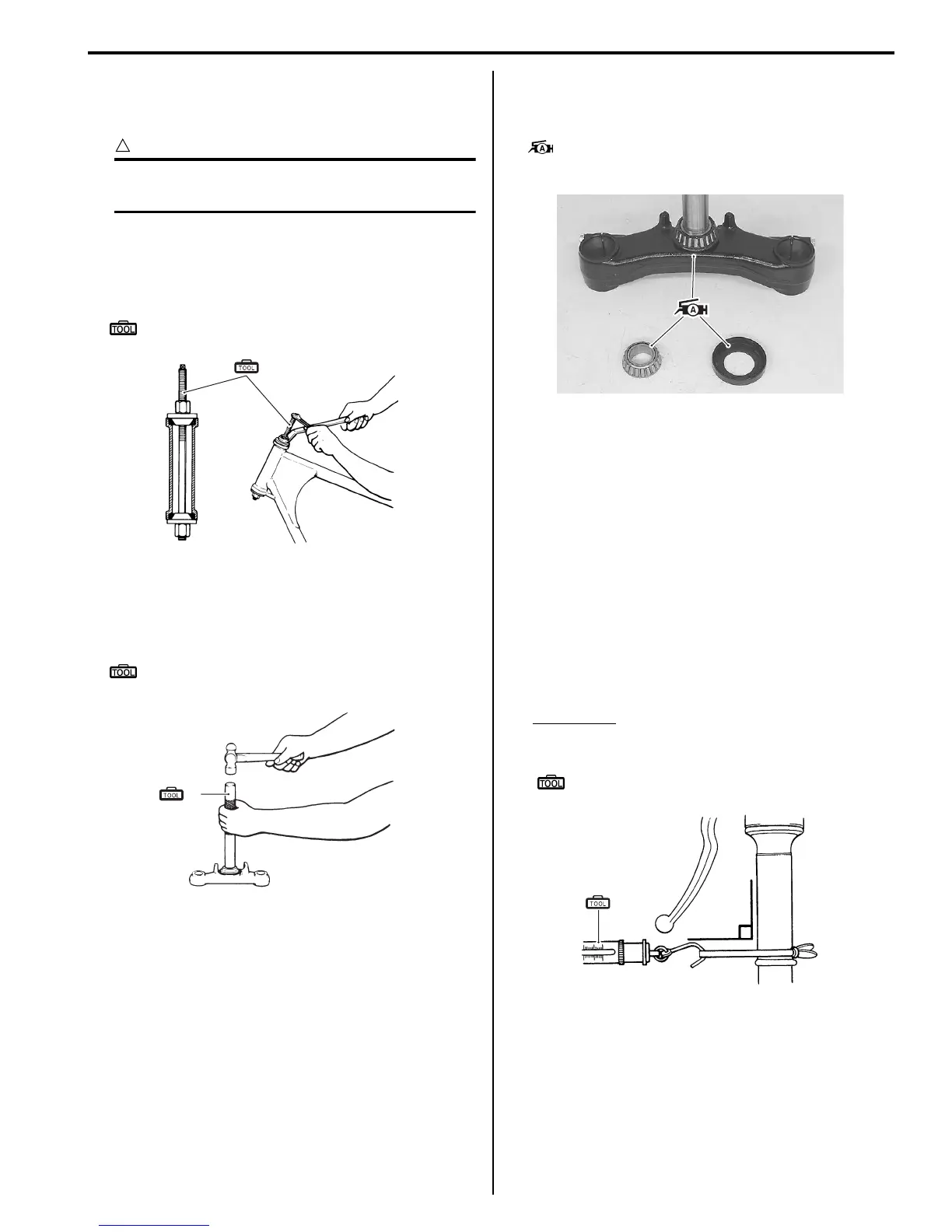

Steering / Handlebar: 6B-10
Installation
Install the steering stem bearings in the reverse order of
removal. Pay attention to the following points:
CAUTION
!
The removed bearings and races should be
replaced with the new ones.
Outer race
• Press in the upper and lower outer races using the
special tool.
Special tool
(A): 09941–34513 (Steering race installer)
Inner race
• Press in the lower inner race and bearing using the
special tool.
Special tool
(A): 09941–74911 (Steering bearing installer)
Bearing
• Apply grease to the bearings, races and dust seals
before remounting the steering stem.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Instal the steering. Refer to “Steering Removal and
Installation (Page6B-6)”.
Steering Tension Adjustment
B705H16206015
Check the steering movement in the following
procedures:
1) By supporting the motorcycle with a jack, lift the front
wheel unit is off the floor 20 – 30 mm (0.8 – 1.2 in).
2) Check to make sure that the cables and wire
harnesses are properly routed.
3) With the front wheel in the straight ahead state, hitch
the spring scale (special tool) on one handlebar grip
end as shown in the figure and read the graduation
when the handlebar starts moving.
Initial force
200 – 500 g
Special tool
(A): 09940–92720 (Spring scale)
(A)
I649G1620035-02
(A)
I649G1620036-02
I705H1620019-04
(A)
I649G1620040-01

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
