Suzuki Burgman AN400 Service Manual

1F-17 Engine Cooling System:

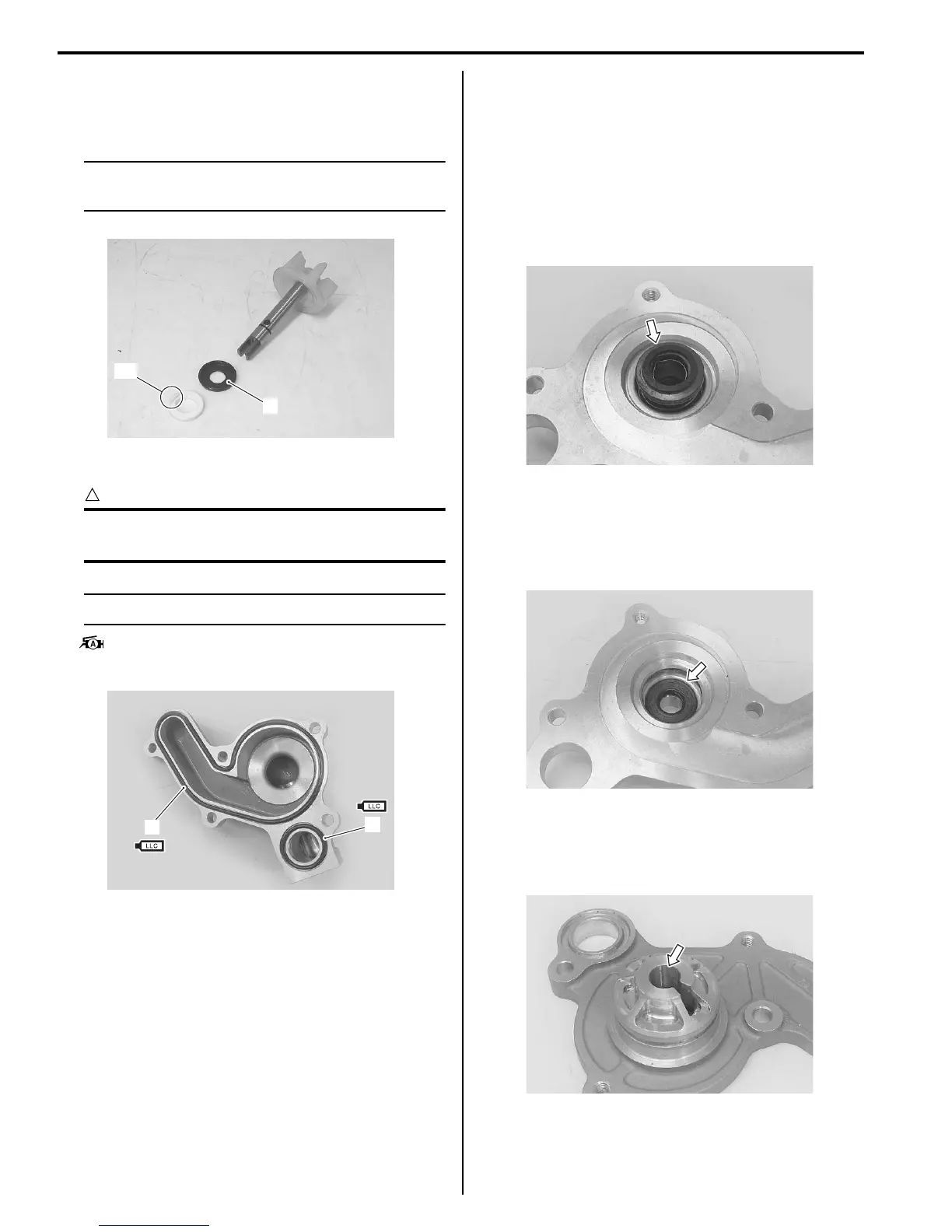

• Install the rubber seal (1) into the impeller.
• After wiping off the oily or greasy matter from the
mechanical seal ring, install it into the impeller.
NOTE
The paint marked side “C” of mechanical seal
ring faces the rubber seal.
• Install the new O-rings (2), (3).
CAUTION
!
Use the new O-rings to prevent engine
coolant leakage.
NOTE
Apply engine coolant to the O-ring (2) and (3).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
Water Pump Related Parts Inspection
B705H11606023
Refer to “Water Pump Disassembly and Assembly
(Page1F-15)”.
Mechanical Seal
Visually inspect the mechanical seal for damage, with
particular attention given to the sealing face.
Replace the mechanical seal that shows indications of
leakage.
Oil Seal
Visually inspect the oil seal for damage, with particular
attention given to the lip.
Replace the oil seal that shows indications of leakage.
Impeller Shaft Journal
Visually inspect the journal for damage or scratch.
Replace the water pump body if necessary.
1
“C”
I705H1160046-03
2
3
I705H1160047-03
I705H1160048-02
I705H1160049-04
I705H1160050-02

Suzuki Burgman AN400 Specifications

General

Engine Type	4-stroke, 1-cylinder, liquid-cooled, DOHC
Displacement	400cc
Bore x Stroke	81.0 mm x 77.6 mm
Fuel System	Fuel injection
Starter	Electric
Front Suspension	Telescopic, coil spring, oil damped
Front Brake	Disc, twin
Rear Brake	Disc
Front Tire	120/70-15M/C 56S, tubeless
Rear Tire	150/70-13M/C 64S, tubeless
Curb Weight	215 kg
Fuel Capacity	13.5 liters
Transmission	CVT
Width	765 mm
Seat Height	735 mm
Rear Suspension	Swingarm type, coil spring, oil damped
Length	2235 mm
Height	1350 mm
Wheelbase	1580 mm
