4-8 DRIVELINE/AXLE

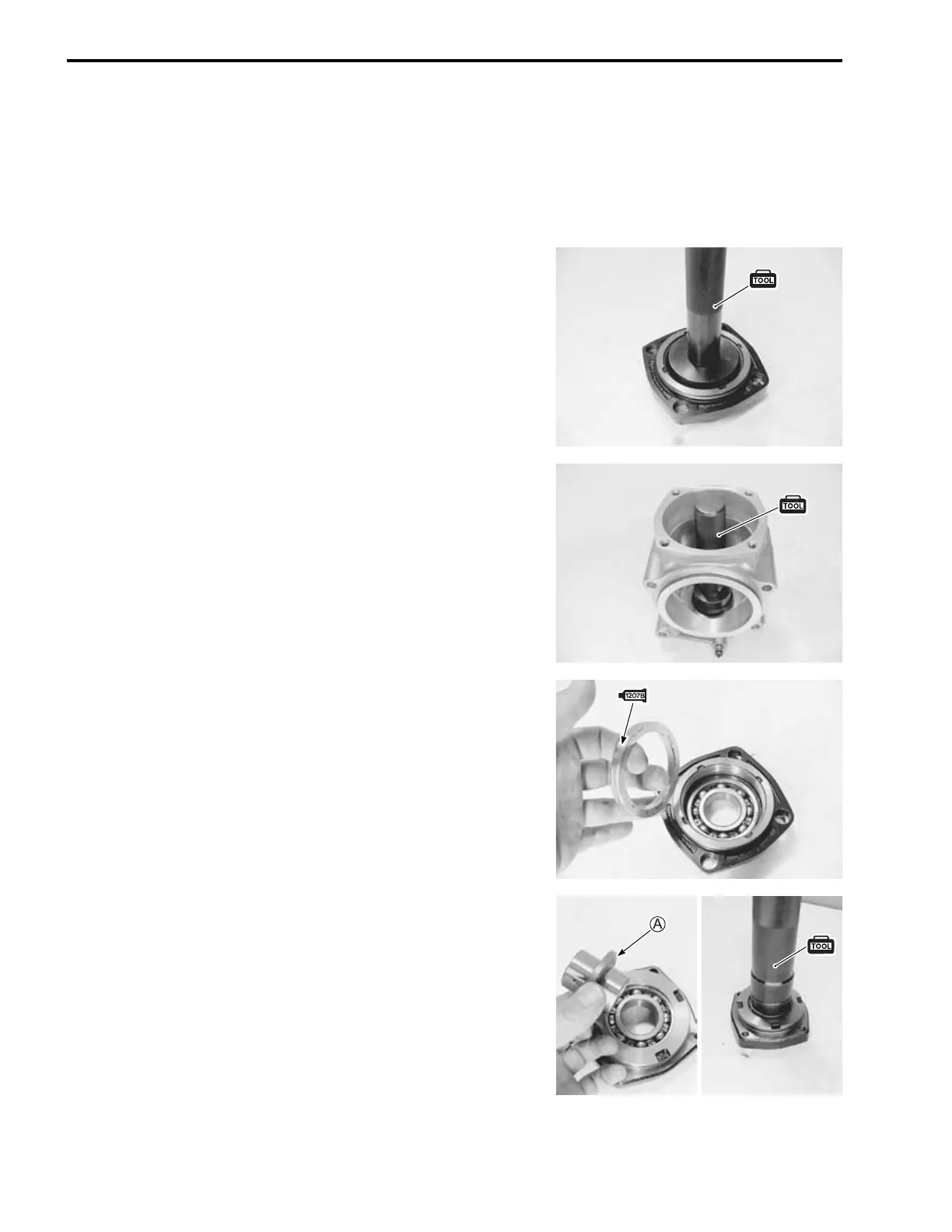

REASSEMBLY
• Reassemble the secondary driven gear in the reverse order of
disassembly.
• The following steps require special attention or precautionary
m
easures should be taken.
BEARING AND OIL SEAL HOUSING
• Install the bearing with the special tool.
# 0991
3-70210: Bearing installer set (68 mm)
NOTE:
When installing the bearing, stamped mark on the bearing must
fa
ce outside.
• Install the bearing with the special tool.
# 0991
3-70210: Bearing installer set (42 mm)
NOTE:
When installing the bearing, stamped mark on the bearing must
fa
ce outside.
• Apply SUZUKI BOND to the mating surface of the bearing
h
ousing and oil seal housing.
& 99
000-31140: SUZUKI BOND “1207B” or equivalent
NOTE:
* Make surfaces free from moisture, oil, dust and other foreign
ma
terials.
* Take extreme care not to apply any BOND to the bearing.
DRIVEN GEAR STOPPER
• Install the driven gear stopper with the special tool.
# 0991
3-70210: Bearing installer set (52 mm)
NOTE:
The chamter side

A of driven gear stopper faces to the bearing.

Suzuki Intruder VZR1800 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-twin
Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Seat Height	705 mm
Rear Brakes	Disc
Front Tire	130/70R18M/C 63H
Overall Width	875 mm
Ground Clearance	140mm
Curb Weight	347 kg
