5. Fuel Injection System
5-39
Remove fuel pump/fuel unit
Remove rear carrier
Remove the luggage box.
Remove the center cover.
Remove rear bodycover.
(Refer to chapter 14)

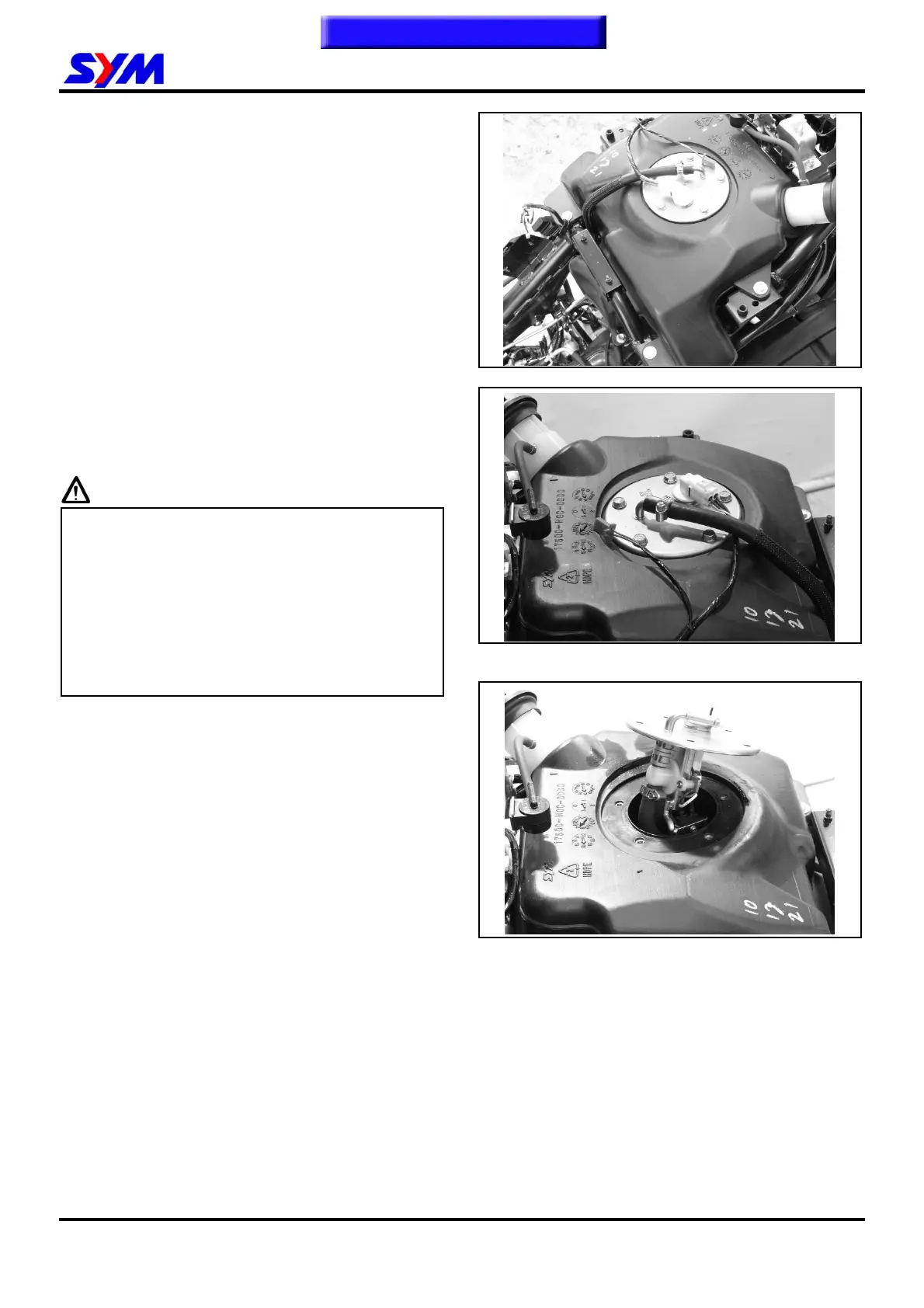

Remove / Install fuel pump and fuel unit
Remove fuel pump
fixed bolts (Bolt × 5), remove fuel
pump.
Install in the reverse order of removal.
Cautions
z Then remove fuel pump, fuel in fuel tank
internal to confirm not excessive.
z Then install fuel pump and fuel unit, attention
direction.
z Confirm whether the fuel filter dirt,
obstructive.
z Fuel pump installation, to confirm whether it
is normal to the fuel out (the pressure about 3
kg/cm2).
