Sym HD2 125 - Cylinder Head and Valve Service

7
. CYLINDER HEAD / VALVE
7-1
Mechanism Diagram····························7-1
Precautions in Operation····················7-2
Troubleshooting··································7-3
Cylinder Head Removal ······················7-4
Cylinder Head Disassembly ···············7-6
Cylinder Head Inspection ···················7-7
Valve Stem Replacement····················7-8
Valve Seat Inspection and Service·····7-9
Cylinder Head Reassembly·················7-11
Cylinder Head Installation···················7-12
Valve Clearance Adjustment ··············7-14

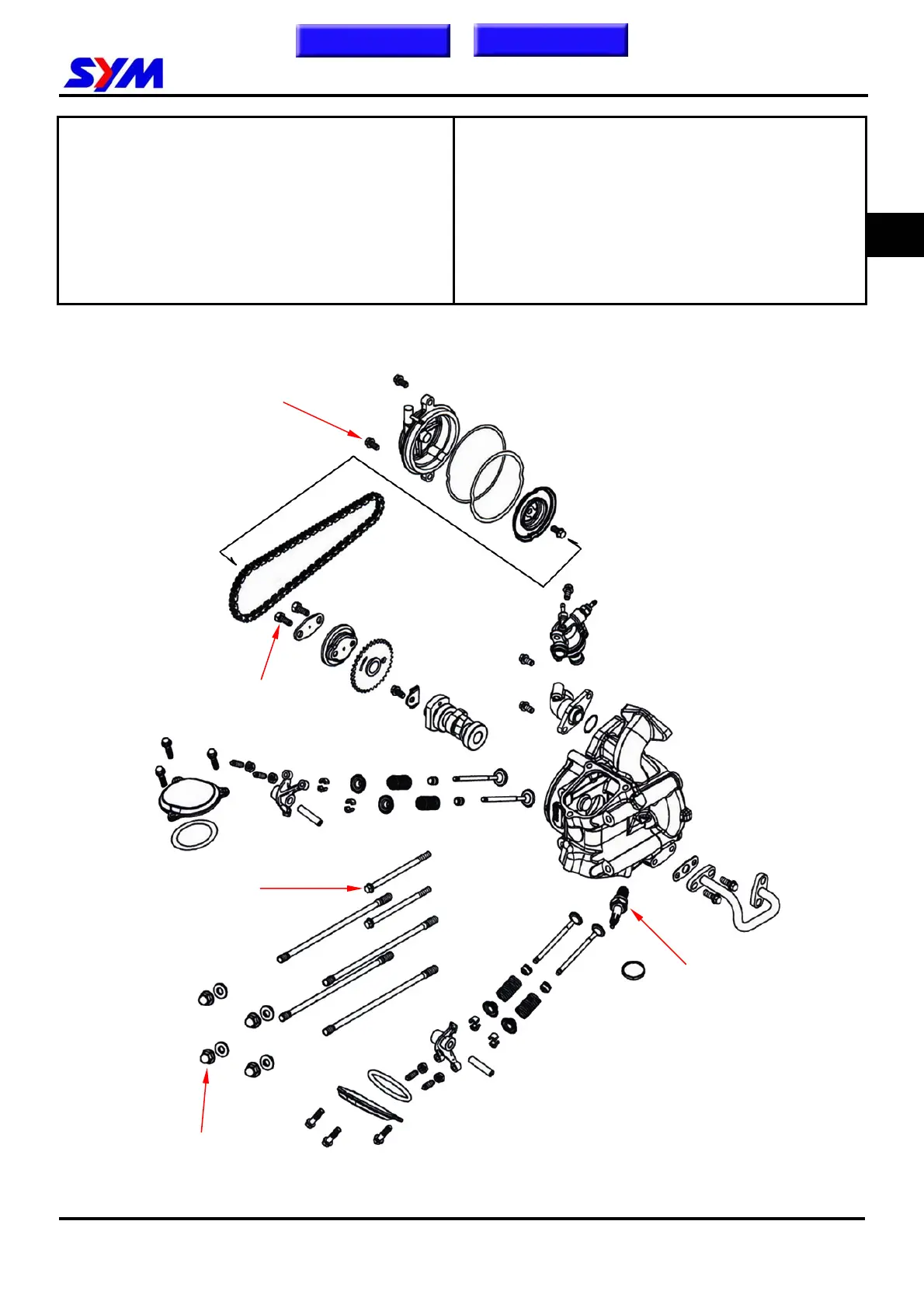

Mechanism Diagram
2.0~2.4kgf-m
0.8~1.2kgf-m
0.8~1.2kgf-m
1.0~1.2kgf-m
2.0~2.4kgf-m
