18. ELECTRICAL SYSTEM
18-8
Ignition System

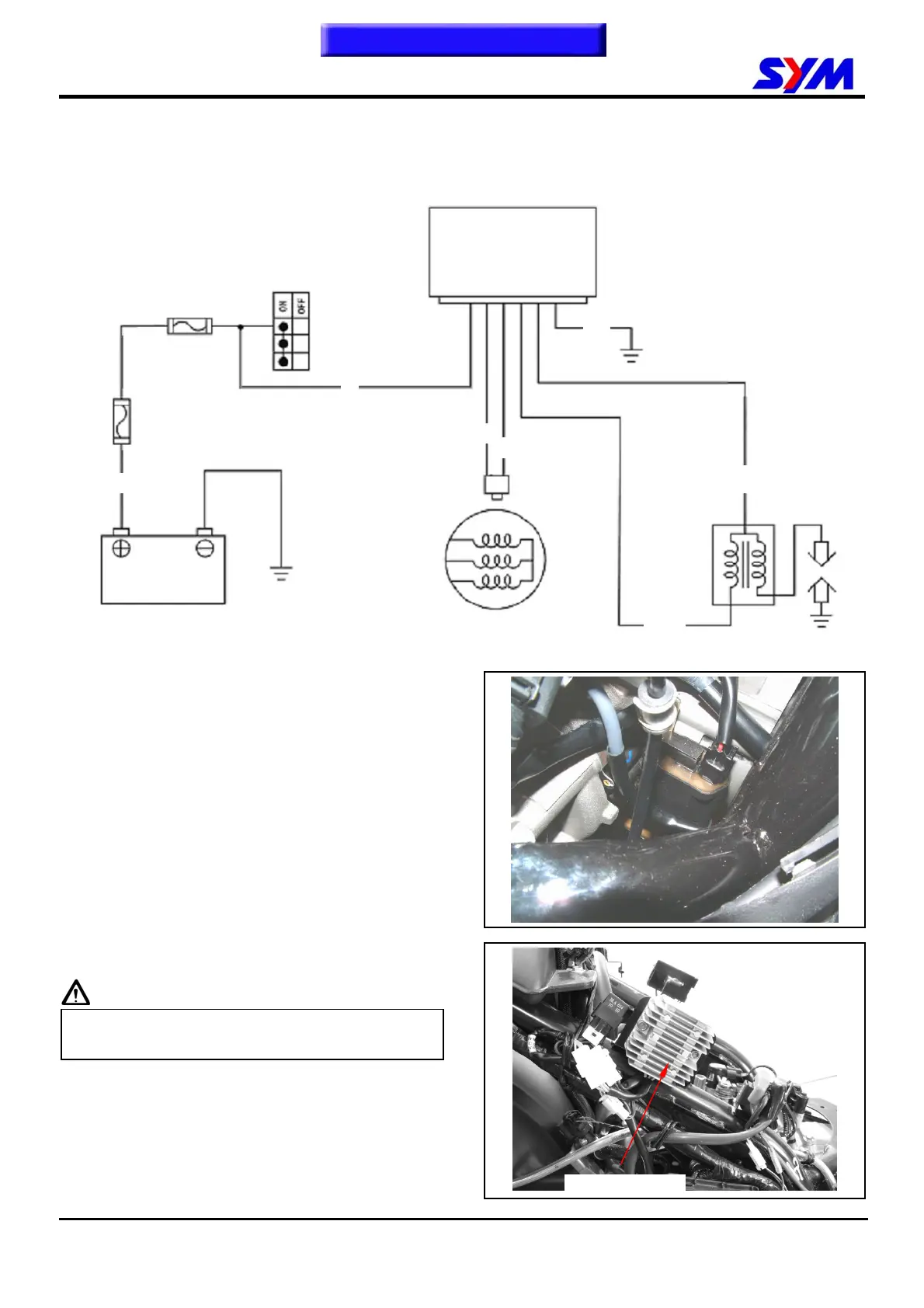

Ignition circuit diagram
Ignition coil inspection
Remove the luggage box.
Disconnect the ignition coil and the spark plug cap.
Measure the resistance between the terminals of the
primary winding.
Standard resistance：2.8Ω±15%
CPS inspection
Remove the right body side cover.
Disconnect the CPS coupler and measure the
resistance between G/W and L/Y wire terminals.
Standard resistance：110Ω±20%
Caution
● Coil doesn’t need to be removed before
performing the inspection.
To this chapter contents
Spark plug
R/Y
Ignition
coil
B/Y
AC. generator
CPS
G/W
L/Y
ECU
Fuse 20A
Fuse 20A
Main switch
R
R
Battery
G
Regulator rectifier
To Next Page
