6
. ENGINE REMOVAL
6-7

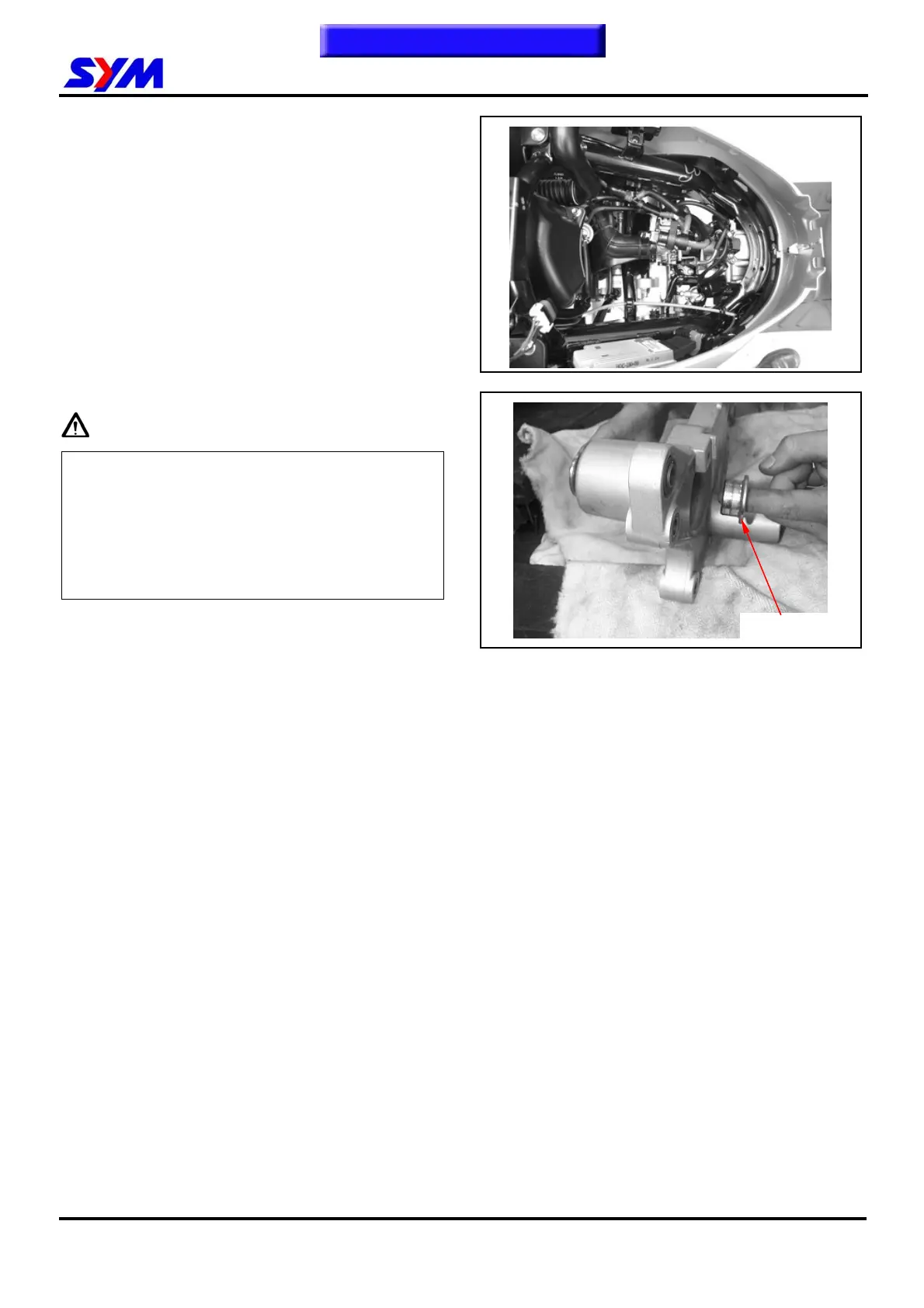

Engine Hanger Installation
Install engine hanger onto engine.
Install engine mounting bolts & nuts and then
tighten the nuts.
Torque value: 4.0~5.0kgf-m
Engine Installation
Check if the bush of engine hanger parts and
cushion for damage.
Install engine in the reverse procedures of
removal.
Caution
y Pay attention of foot & hand safety as engine
installation to avoid hurting.
y Do not bend or twist wires.
y Cables wires have to be routed in accordance
with normal layout.
y Small-end bearing collar has to forward to
inside (bearing) as assembling the rear fork.
Engine hanger Bolt:
Torque value: 4.0~5.0kgf-m
Rear cushion bolt:
Torque value: upper：3.5~4.5kgf-m
under：2.4~3.0kgf-m
Rear wheel axle nut:
Torque value: 11.0~13.0kgf-m
Bearing collar
