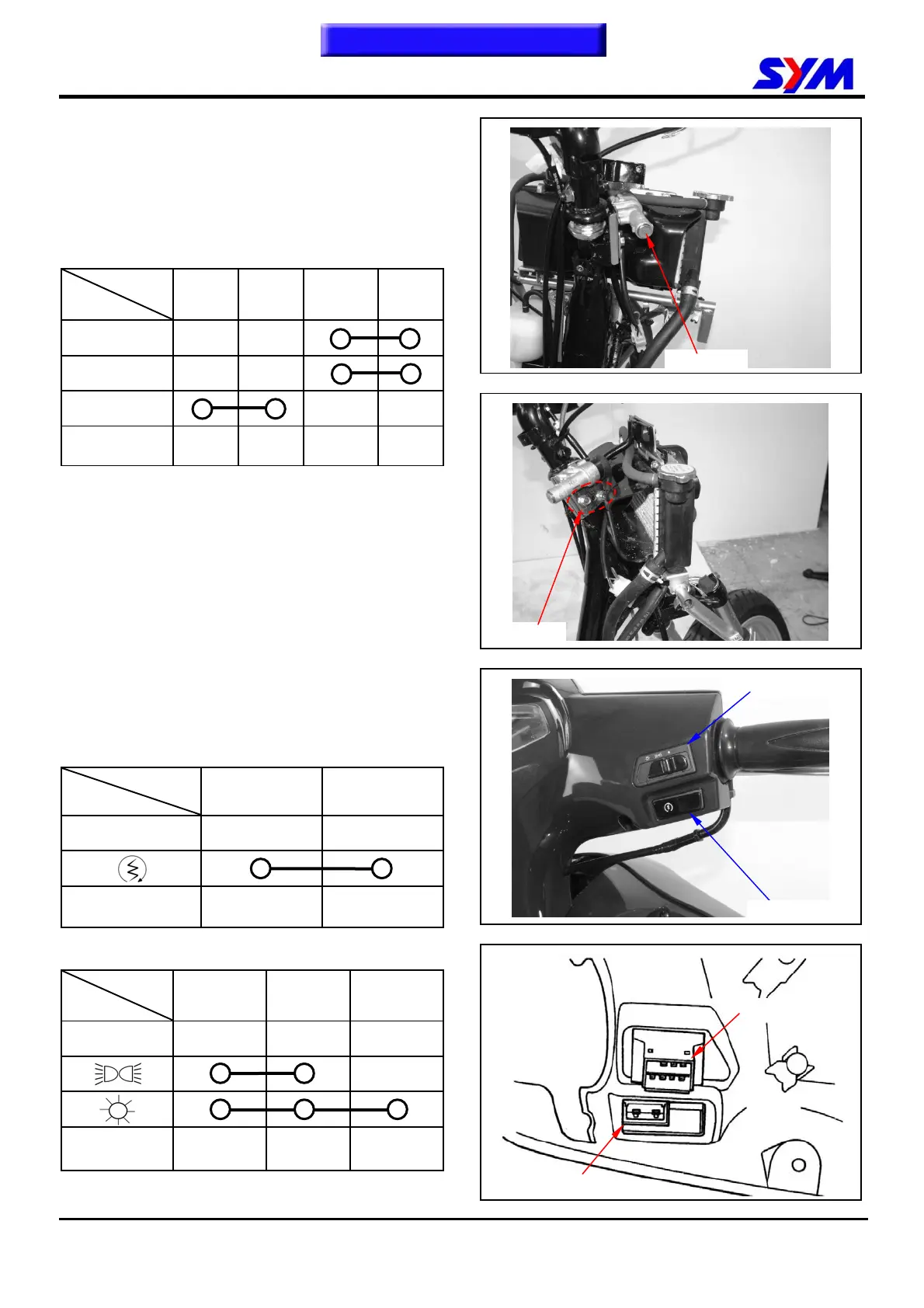

18. ELECTRICAL SYSTEM
18-14
Switch / Horn
Main Switch
Inspection
Remove the front cover.
Disconnect the main switch coupler.
Check the continuity between two points as
indicted below:
Pin
Position
BAT1 BAT2 I E
LOCK
OFF
ON
Wire Color Red Black
Black /
White
Green
Replacement of main switch
Disconnect the coupler of the main switch and
loosen the lock bolts (bolt x 2).
Remove the main switch.
Install the new main switch and tighten the lock
bolts (bolt x 2).
Install the main switch coupler.
Handle switch
Remove the handle front cover and rear cover.
Disconnect the coupler of handle.
Check the continuity between two points as
indicated in the table below.
Start Switch / Headlight Switch
Pin
Position
ST BAT2
FREE
Wire Color
Yellow
/ Red
Green
Headlight Switch
Pin
Position
BAT3 TL HL
●
Wire color
White
/ Green
Brown
Blue
/ White
2 bolts
Start switch
To this chapter contents
Headlight switch
Main switch
Start switch
Headlight switch
