5. Fuel Injection System
5-48

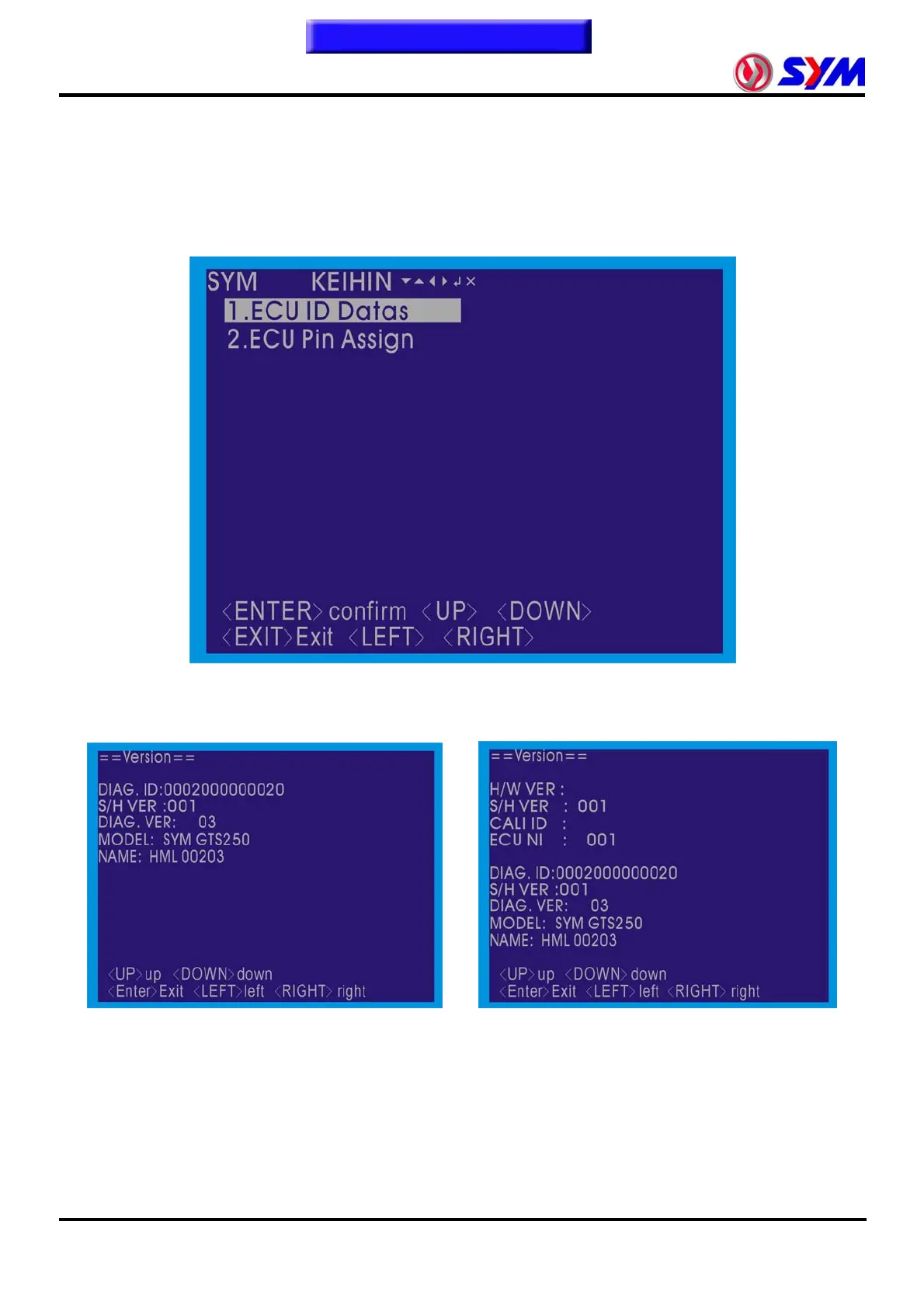

1. ECU ID
In the directory functions used "▲" "▼" button, select ECU ID project, press the "ENTER" buttom to
the implementation of information systems function.
ECU ID containing two functions:
1-1. ECU ID Datas
1-2. ECU Pin Assign
1-1. ECU ID Datas
Use "▲" "▼" button, select ECU ID projects, press the "ENTER" buttom to the implementation.
A total of 2 page, use "◄ left" and "right ►" button, view ECU information.
DIAG. ID: 0002000000020 (Diagnosis tool ID)
S/H VER: 001 (Software Version)
DIAG. VER: 03 (Diagnosis Version)
MODEL: SYM GTS250
NAME: HML 00203
H/W VER: (Hardware version)
S/H VER: 001 (Software Version)
CALI ID:
(Correction ID Code)
ECU NO: 001
