10. FINAL DRIVE MECHANISM
10-6

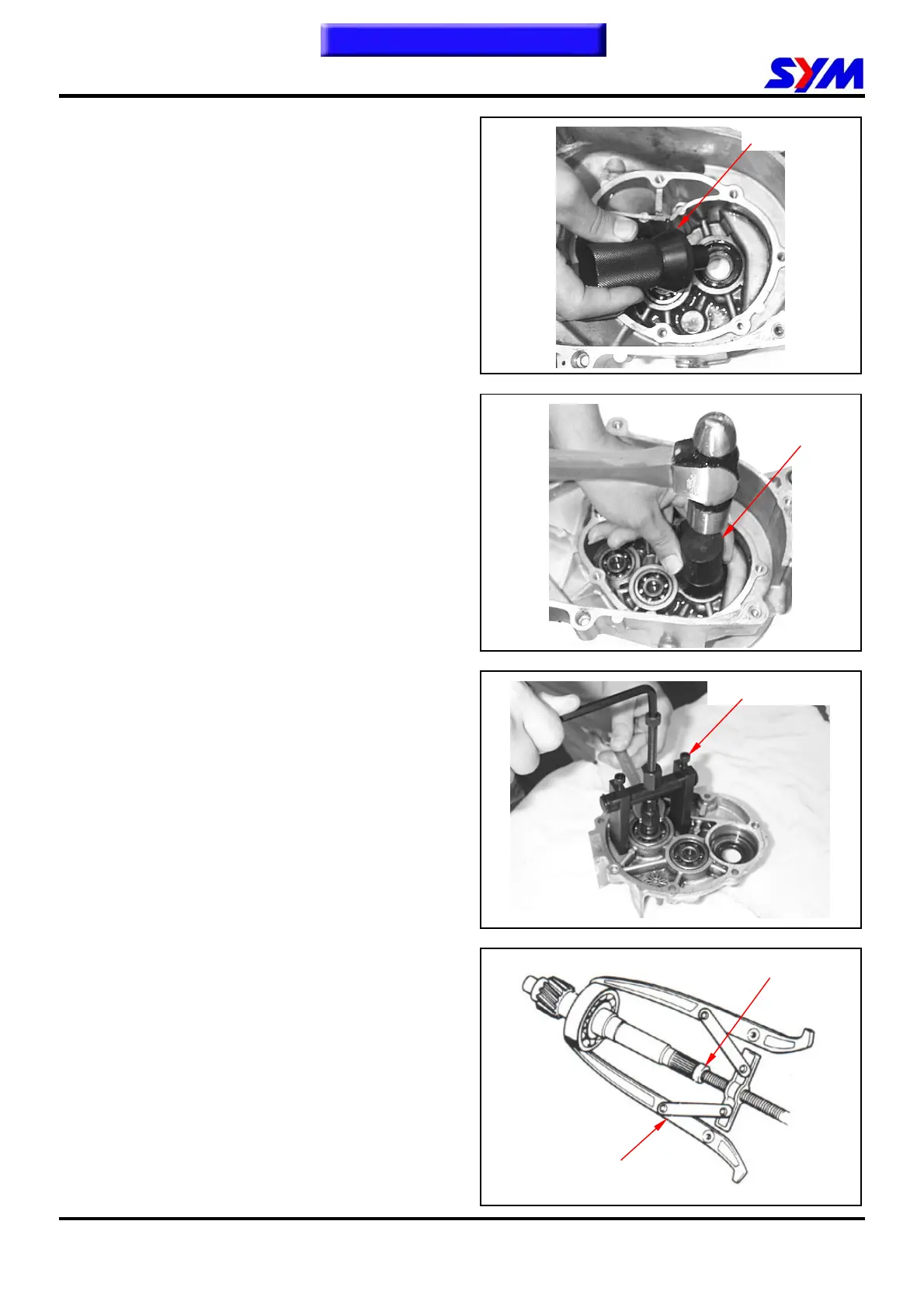

Install new final shaft seal.
Special tool:
Oil seal driver (27*42*7)
Install new final shaft bearing.
Special tool:
Bearing driver (6203/6004UZ)
Press out the drive shaft from gear box cover.
Using shaft protector as operation.
Remove oil seal from gear box cover and discard
the seal.
Use inner bearing puller to remove the final shaft
bearing and counter shaft bearing from the cover.
Special tool:
Inner bearing puller
If the drive shaft is pulled out with its bearing, then
remove the bearing with bearing puller and shaft
protector.
Special tool:
Multi-functional bearing puller or Outer bearing
puller
Shaft protector
Inner bearing puller
Protector
Bearing puller
Oil seal driver
Bearing driver
