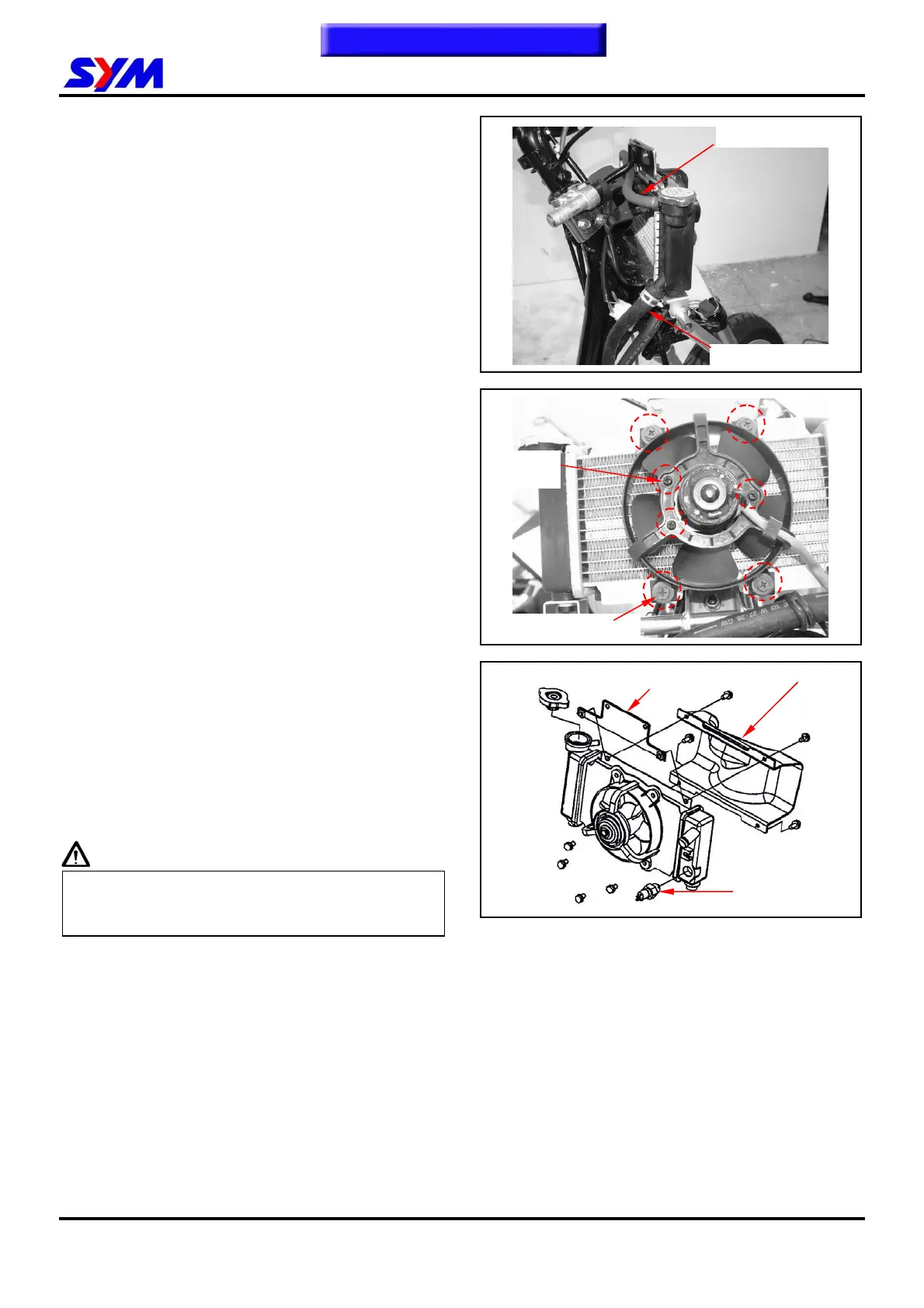

13. COOLING SYSTEM
13-7
Remove coolant outlet pipe and reserve tank pipe,
and then remove radiator and cooling fan.
Disassembly
Loosen the 4 bolts from the fan duct, and then
remove the fan duct and radiator plate.
Loosen the 4 bolts from the fan and remove the
fan.
Loosen 3 screws from the fan motor, and take off
the fan motor.
Remove nut to remove the fan from fan motor.
Assembly
Install fan motor onto fan shroud and insert the fan
into the motor shaft.
Apply a coat of the adhesive to the shaft thread of
the motor, and then install the washer and the lock
nut.
Tighten the fan shroud onto the radiator with four
bolts. Please refer to chapter 17 for the inspection
of the thermo switch.
Caution
Liquid packing must be applied to the thermo
switch before installing to avoid damaging the
radiator.
Installation
Install the removed parts in the reverse order of
removal.
Install radiator in the reverse order of removal.
Upon completion, check for any leakage.
Thermo switch
Cooling fan
bolts x3
Coolant outlet pipe
Reserve tank pipe
Cooling fan duct
Radiator plate
Cooling fan bolts x4
