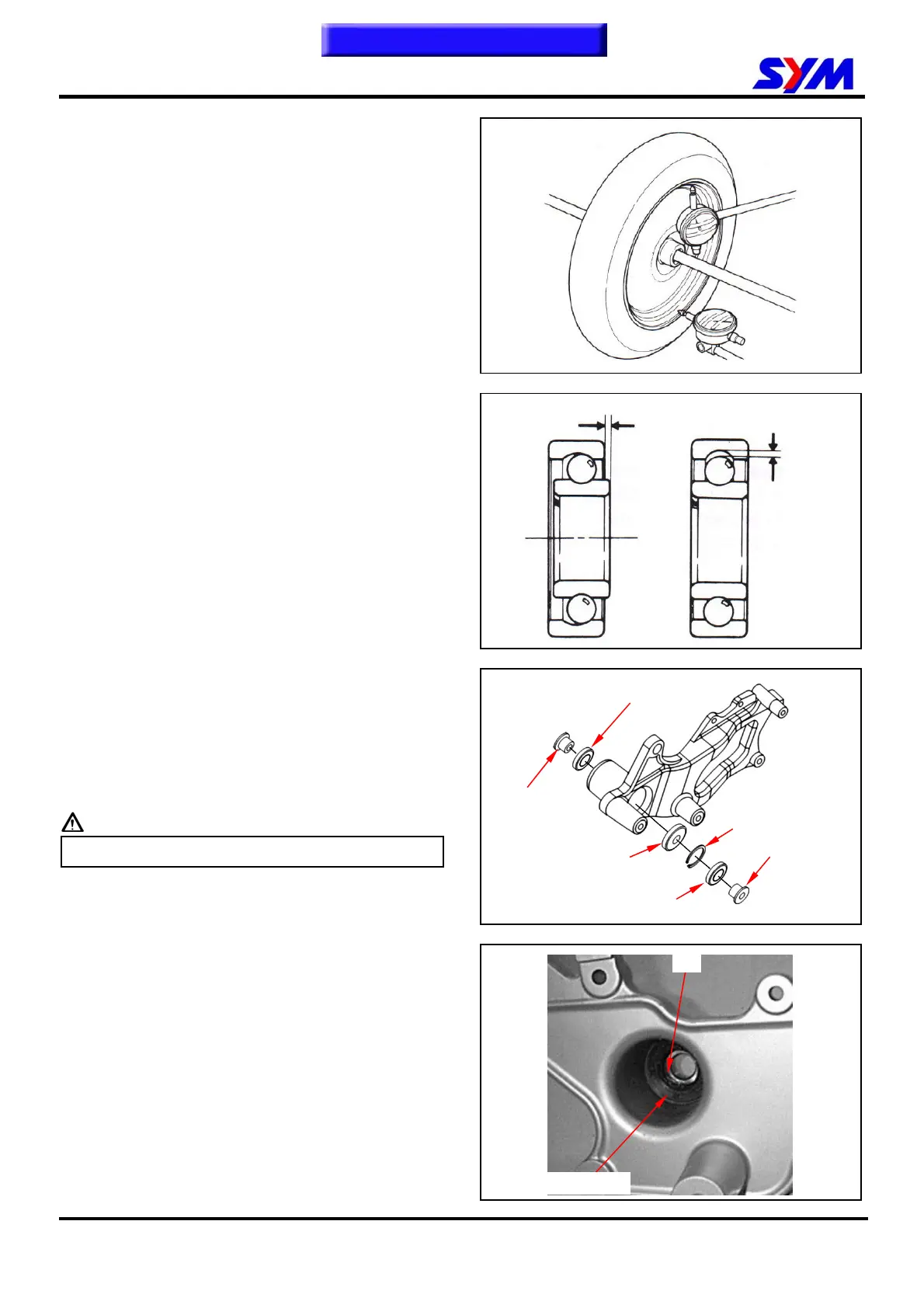

17. REAR WHEEL / REAR FORK / REAR CUSHION
17-4
Inspection
Rear wheel rim
Place the wheel rim on a rotational support.
Rotate it by hand and measure the run-out with a
dial indicator.
Run-out limit: 2.0 mm
Rear fork bearing
Rotate the inner ring of the bearing with a finger.
The bearing should move smoothly and quietly.
Check the fit of the bearing and rim.
Replace the bearing if its motion is not smooth or
noisy.
Replacement of rear fork bearing
Remove the outside dust seal of the rear fork.
Use inner cir clip plier to remove the bearing lock
clip.
Pull off the rear fork bearing by means of the inner
bearing puller.
Remove the inside dust seal.
Caution
Never reuse the old dust seal on the bearing.
Press in the bearing into the rear fork by bearing
driver.
Install the oil bearing lock clip.
Install new dust seals into rear fork two side.
Free play
Free play
Dust seal
Dust seal
Inside collar
Clip
Outside collar
Bearing
Clip
Outside collar
