Symbol MC3000 - Parts

Getting Started 1-5
Parts
There are two versions of the MC3000 mobile computers, the MC3000 1D/2D Imager (MC3000-K) and the MC3000 Laser with
Rotating Scan Turret (MC3000-R). For more information on the Rotating Scan Turret, see Figure 1-3 on page 1-6.

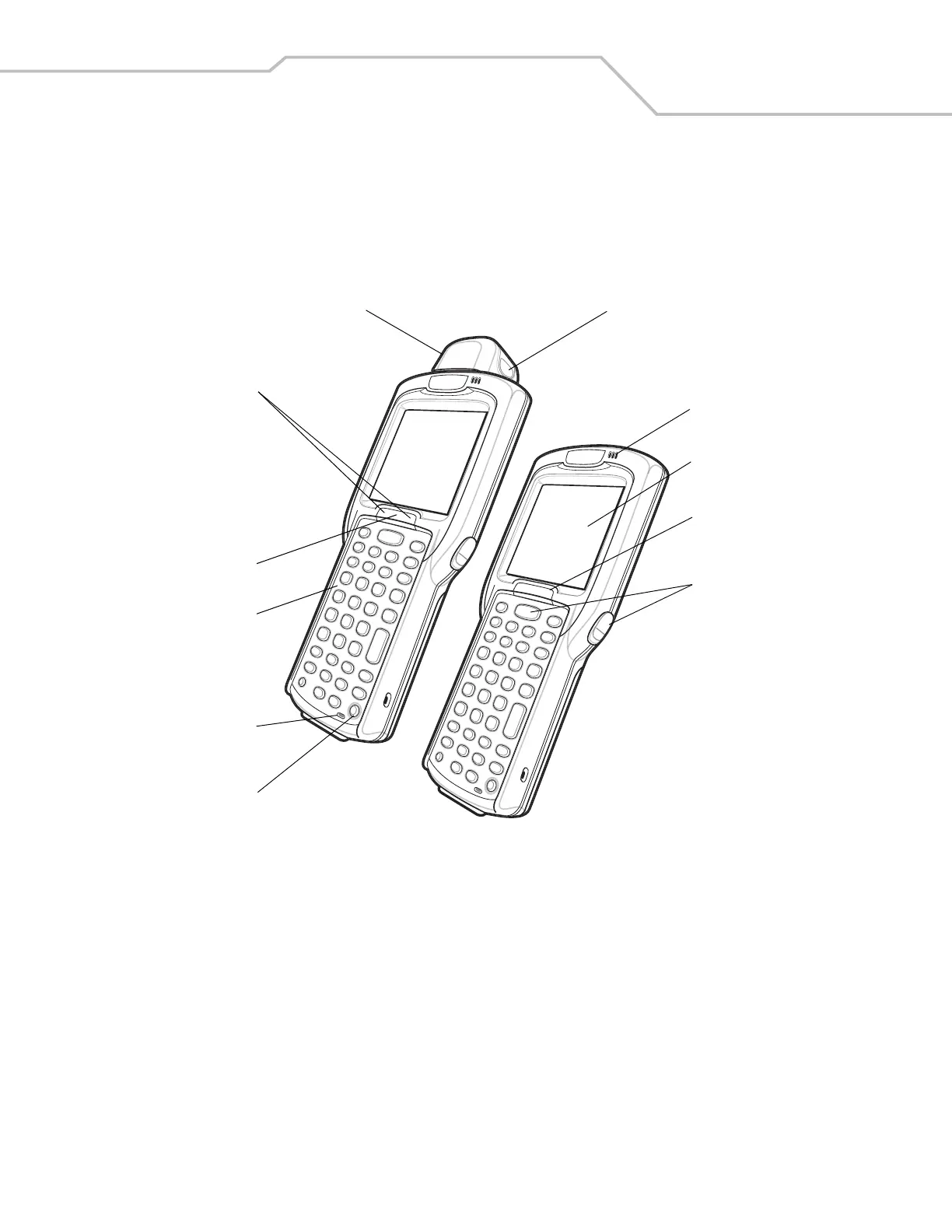

Figure 1-1. MC3000 Imager (MC3000-K) and MC3000 Laser (MC3000-R) Mobile Computers (front view)
Keypad
Indicator LED
Bar
Screen
Scan LED Indicator
(red/green)
Power
Scan Buttons
MC3000-R
MC3000-K
Rotating
Scan Turret
Beeper or
Receiver (optional)
Microphone
(optional)
Scan LED
Indicators
(red/green)
Charge LED
Indicator
(amber)
