Accessories 2-15
Universal Battery Charger (UBC) Adapter
The UBC Adapter can be used with a power supply as a standalone spare battery charger or it can be used with the four station
UBC2000 to simultaneously charge up to four spare batteries. For additional information on the UBC 2000, refer to the UBC 2000 Quick
Reference Guide, p/n 70-33188-xx.
Setup
Connect the UBC Adapter to a Symbol approved power source.

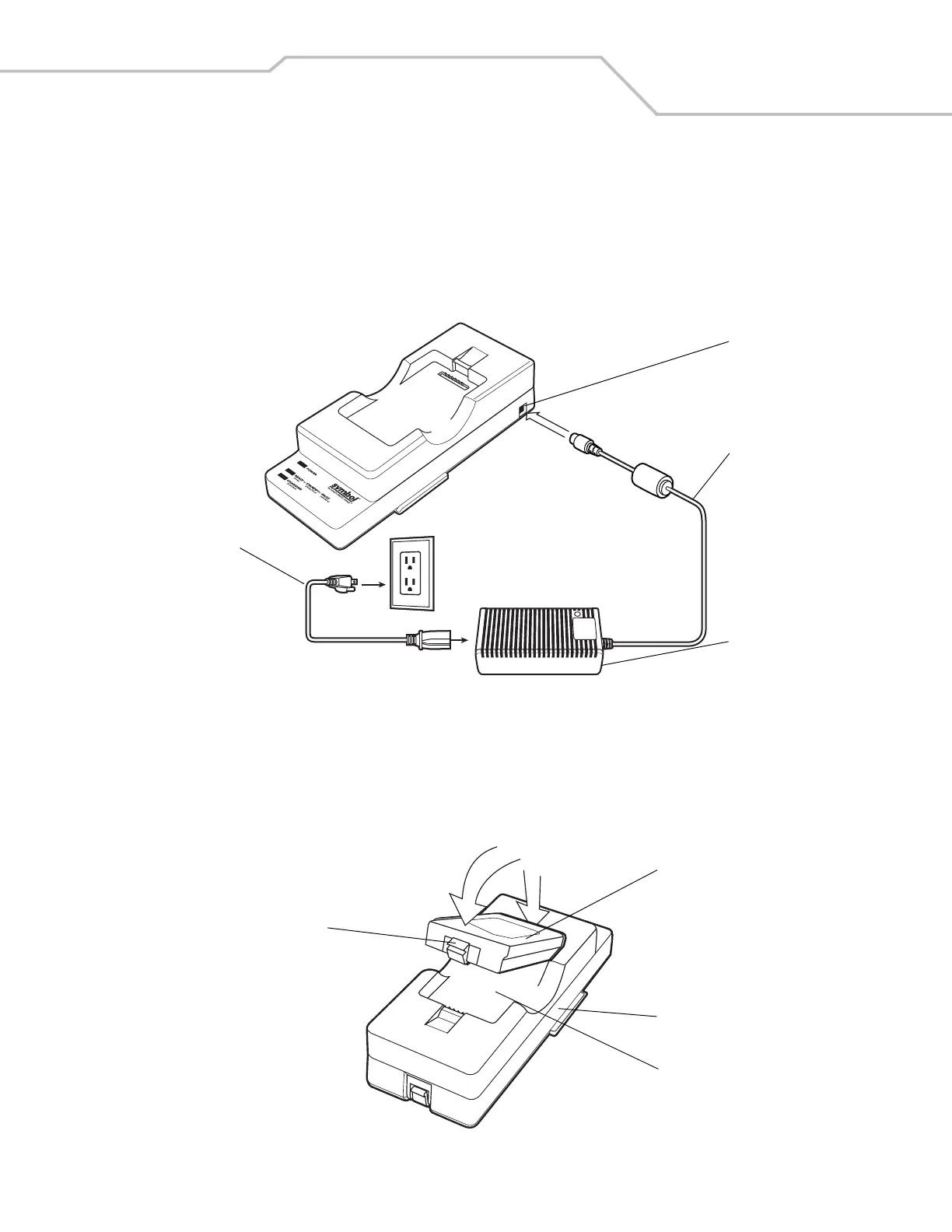

Figure 2-13. UBC Adapter Setup
Spare Battery Charging
To charge spare batteries:
1. Insert the spare battery into the spare battery charging slot, bottom first.
2. Pivot the top of the battery down onto the contact pins.
Figure 2-14. UBC Adapter Battery Insertion
Power Supply
AC Line Cord
DC Cable
Power Port
UBC Adapter
Battery
Battery Clip
Spare Battery
Charging Slot
