1.3.1.2 Power supply, phases and brake

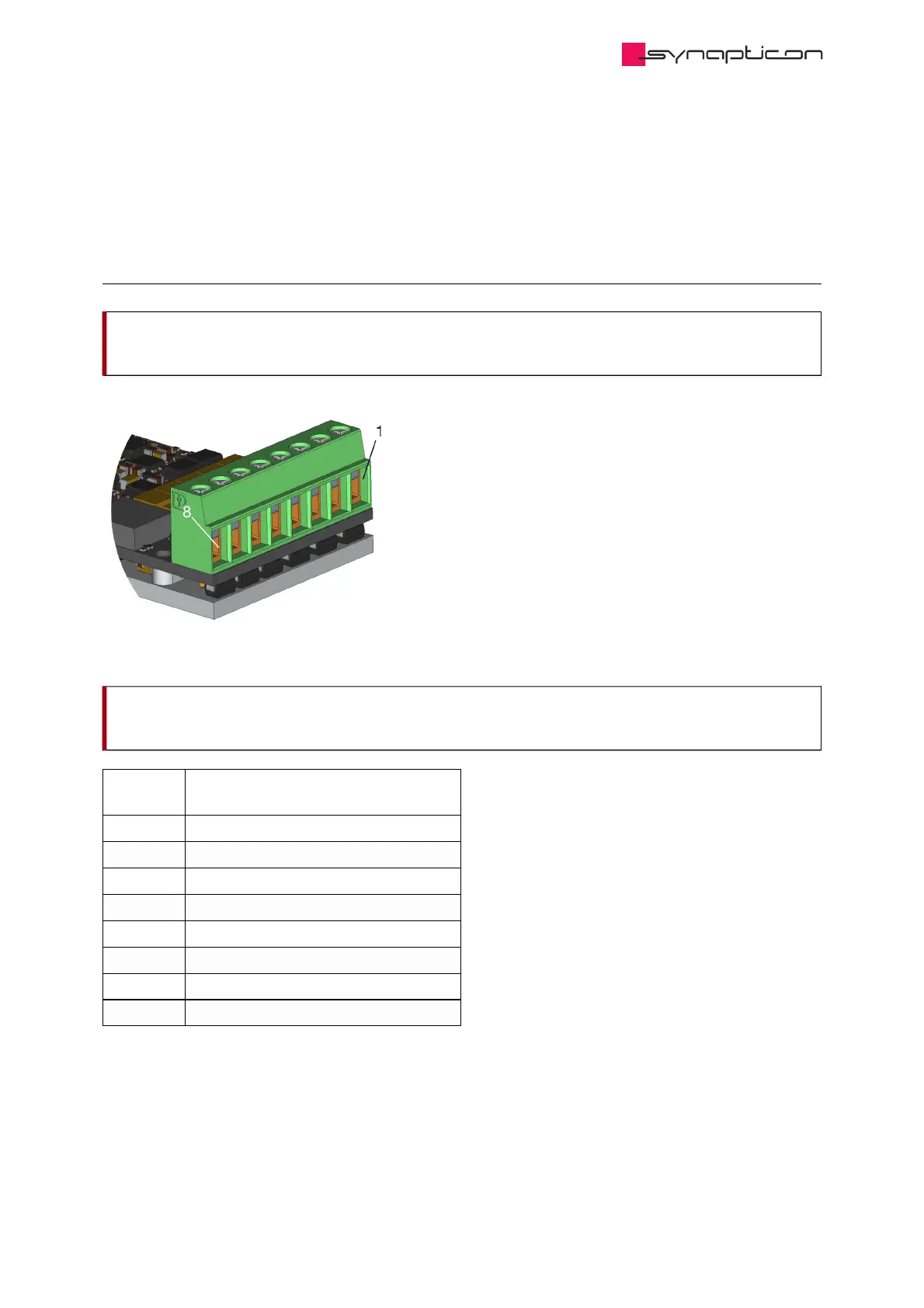

1.3.1.2.1 Pinout Power Terminal
Important
Important
The cable length for Main Power Supply (12-48 V) must not exceed 30 m.
The cable length for Main Power Supply (12-48 V) must not exceed 30 m.
Important
Important
The motor and power cables must be twisted for EMC reasons.
The motor and power cables must be twisted for EMC reasons.
Terminal
#
1 Phase A
2 Phase B
3 Phase C
4 Phase D - Brake output 0-48 V PWM
5 Ground
6 Main Power Supply 12-48 V
7 Optional Logic Ground
8 Optional Logic Supply 12-24 V *
