1.3.3 On-site installation guide
Please regard this information when installing the Node.
Installation specifications Node 400 Node 1000 Node 2000
E-File number E506869
Rating in Volt 12-48 V
Rating in Ampere 13.2 A RMS 33 A RMS 66 A RMS
Short circuit current rating 5k A
Maximum Surrounding Air Temperature 40° C
Torque Values for Terminal screws 0.5 - 0.6 Nm (4.4 lbf∙in)
Short circuit rating and fuse type Listed Class T Fuse, rated min. 160Vdc 50A
20kA. (JDDZ/7.E81895)
Temperature rating of field installed conductors >85° N/A

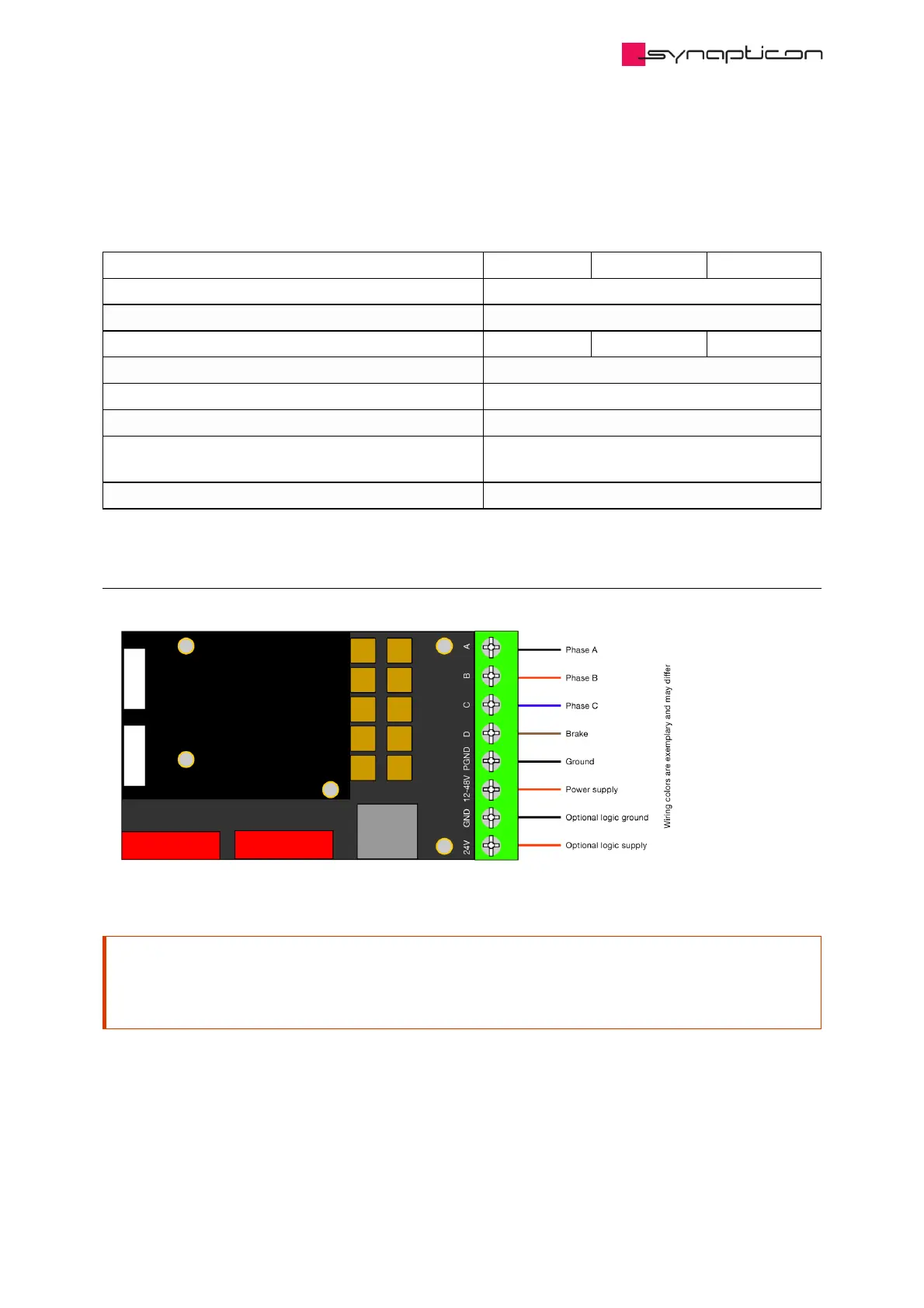

1.3.3.1 Field wiring terminal marking
Attention
Attention
These products are intended for operation within circuits not connected directly to the supply
These products are intended for operation within circuits not connected directly to the supply
mains (galvanically isolated from the supply, i.e. on transformer secondary).
mains (galvanically isolated from the supply, i.e. on transformer secondary).
