SYNAPTICON SOMANET Node 400 - Connector Types and Mating Parts Numbers

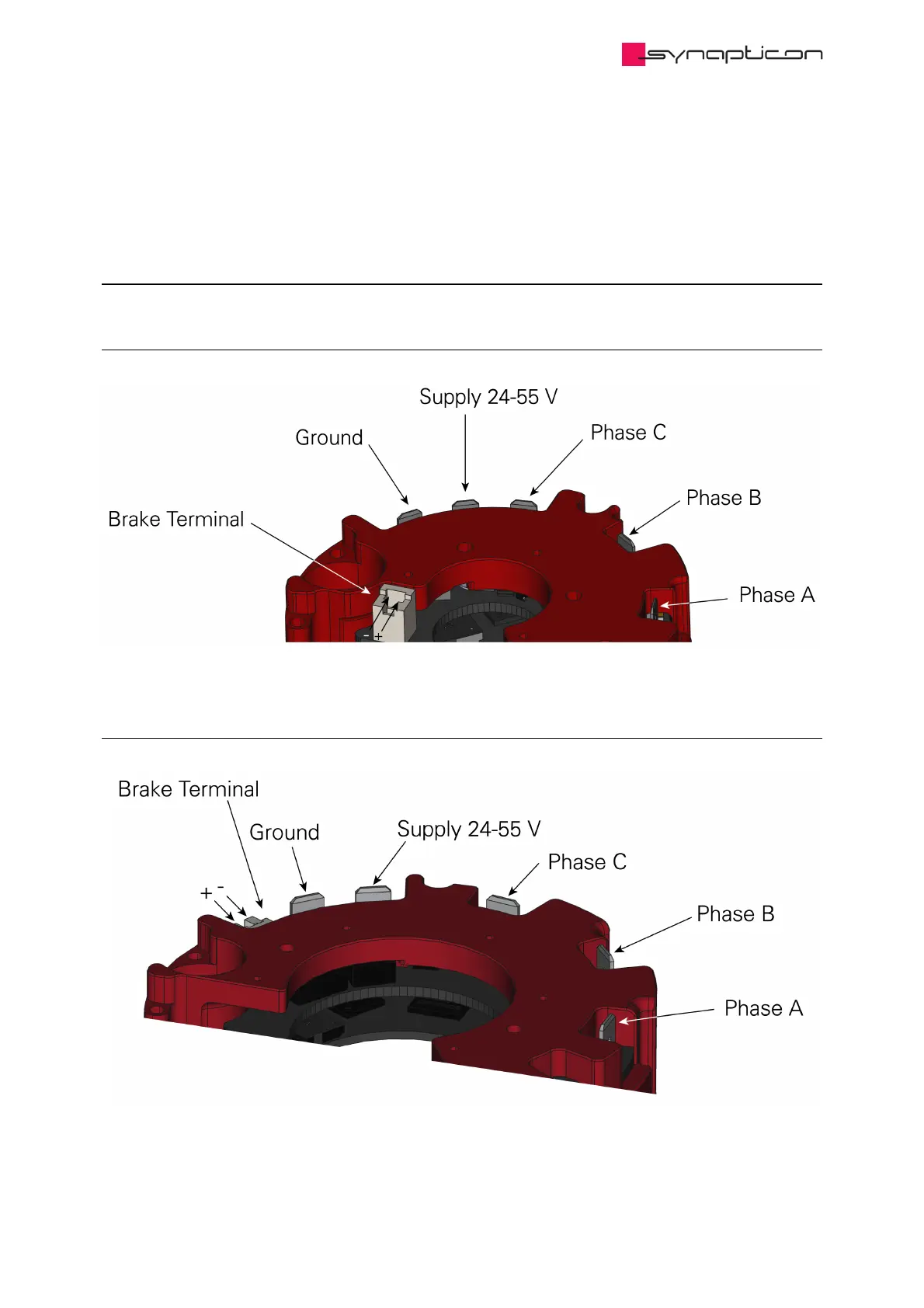

1.5.5.1.3 Connector types and mating parts numbers
Connector
description Manufacturer
Mating part
number
Crimping
Contact Cable
Safe brake port JST ZER-02V-S SZE-002T-P0.3 0.08-0.21 mm² / 28-24
AWG
Safe digital I/O port JST GHR-06V-S SSHL-002T-
P0.2
0.05-0.13mm² / AWG 30-
26
Wiring diagrams for the digital inputs
Hardware Manuals / SOMANET Node / SOMANET Node rev. E.1
© 2020 Synapticon GmbH | Daimlerstraße 26 | D-71101 Schönaich Documentation v 3.2.0 | Build: 2020-05-25 43/60
