1.5.6.2 Cabling lenghts
Please observe the maximum allowed cable lengths:
Connection
Maximum wire
length
STO-SBC 30 m

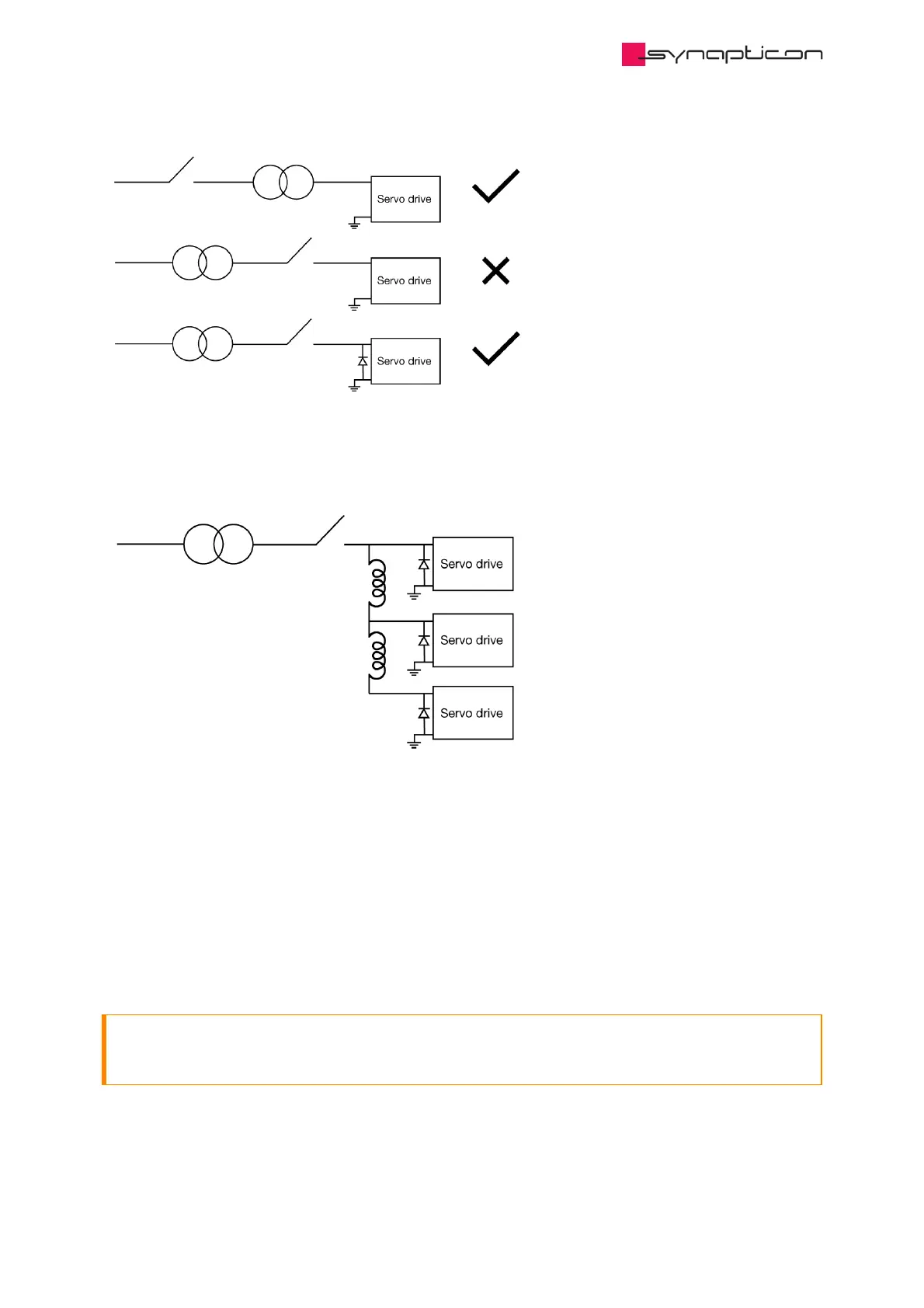

1.5.6.3 Connection diagrams for the STO inputs
Important
Important
Please note that Safety GND is an isolated signal from drive GND.
Please note that Safety GND is an isolated signal from drive GND.

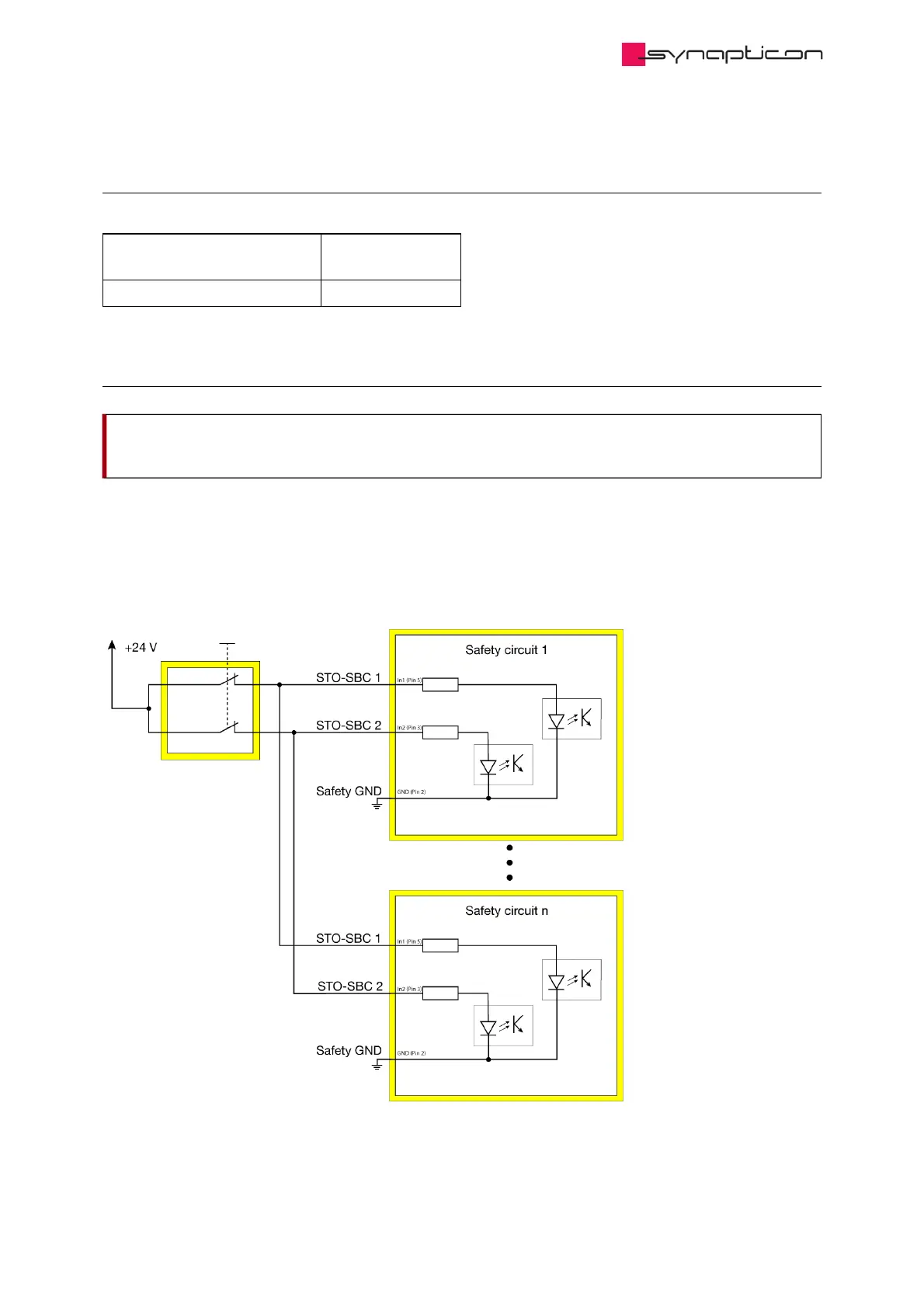

1.5.6.3.1 Manual switch + drives
Allows safety functions up to SIL 3, PL e, cat.3.
