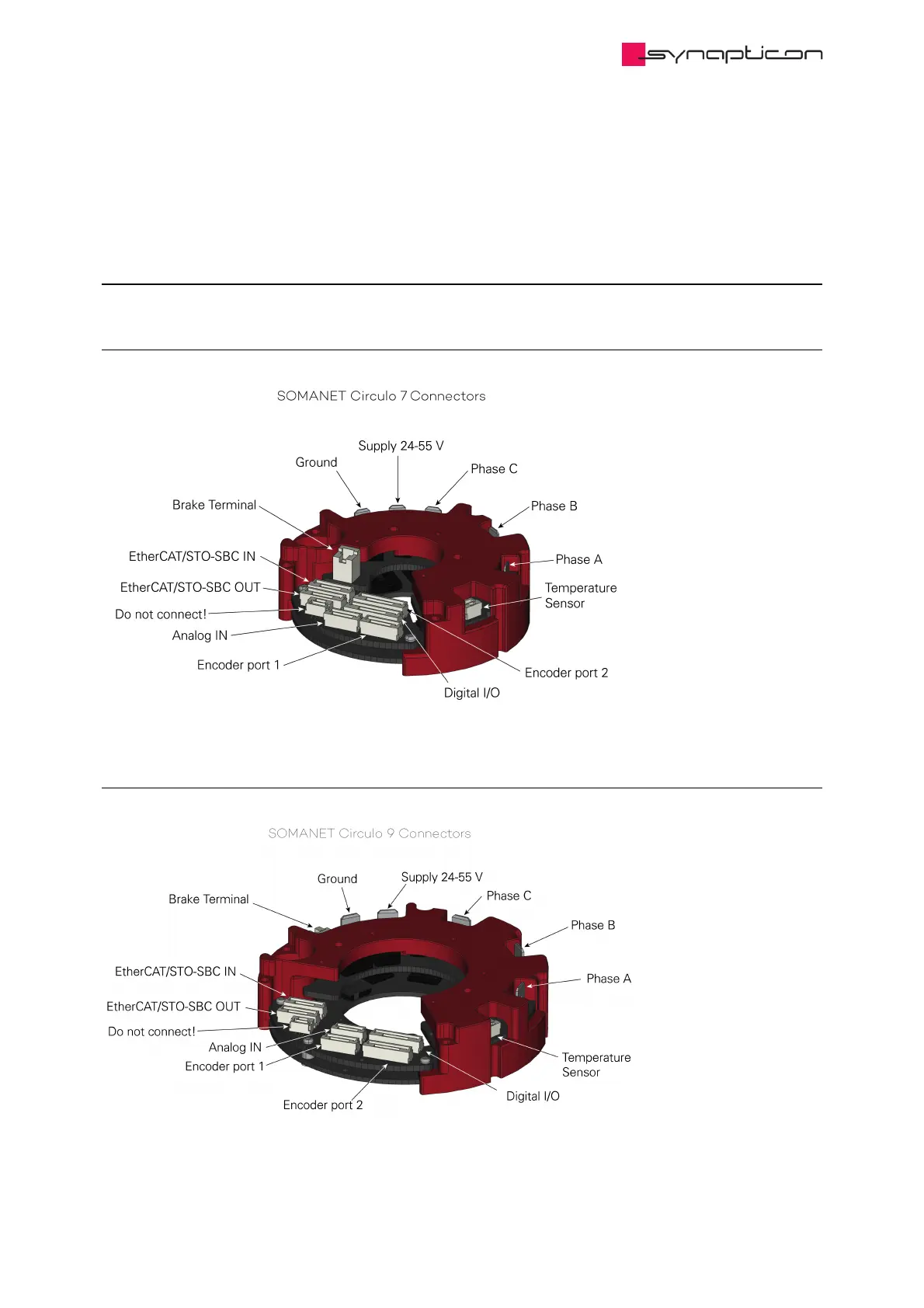

1.5.5 Safety connector pinouts and mating
parts
1.5.5.1 Connector Pinout

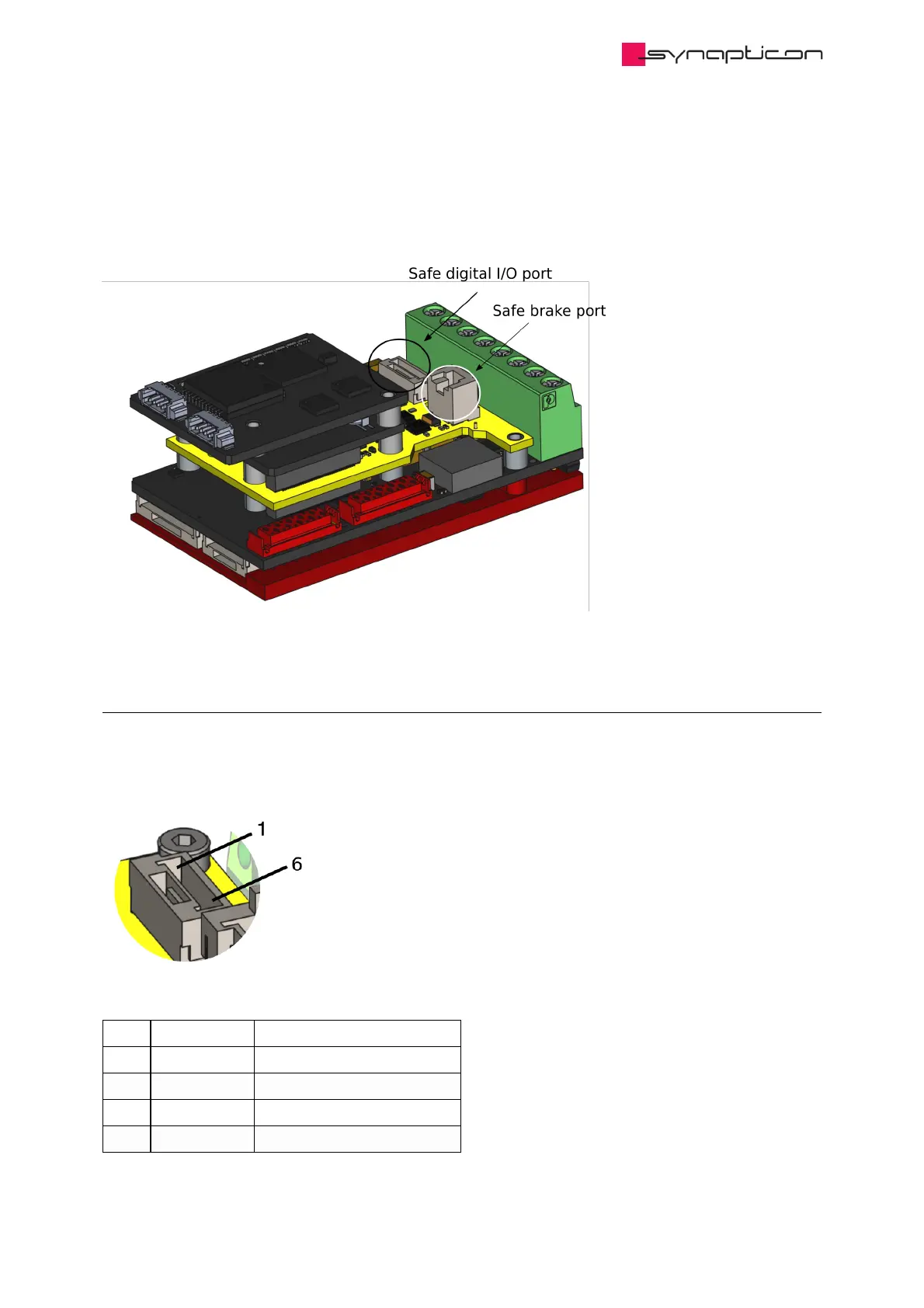

1.5.5.1.1 Safe digital I/O port
Pin# Designation Function
1 BY- Bypass- *
2 GND Safety GND
3 IN2 STO/SBC input 2
4 IN1 STO/SBC input 1
