SYNAPTICON SOMANET Node 400 - Safe Brake Terminal

5 IN1 STO/SBC input 1
6 BY+ Bypass+ *
*STO-SBC functions are bypassed when Bypass+ is connected to Bypass-.
Important
Important
Please note that Safety GND is an isolated signal from drive GND.
Please note that Safety GND is an isolated signal from drive GND.

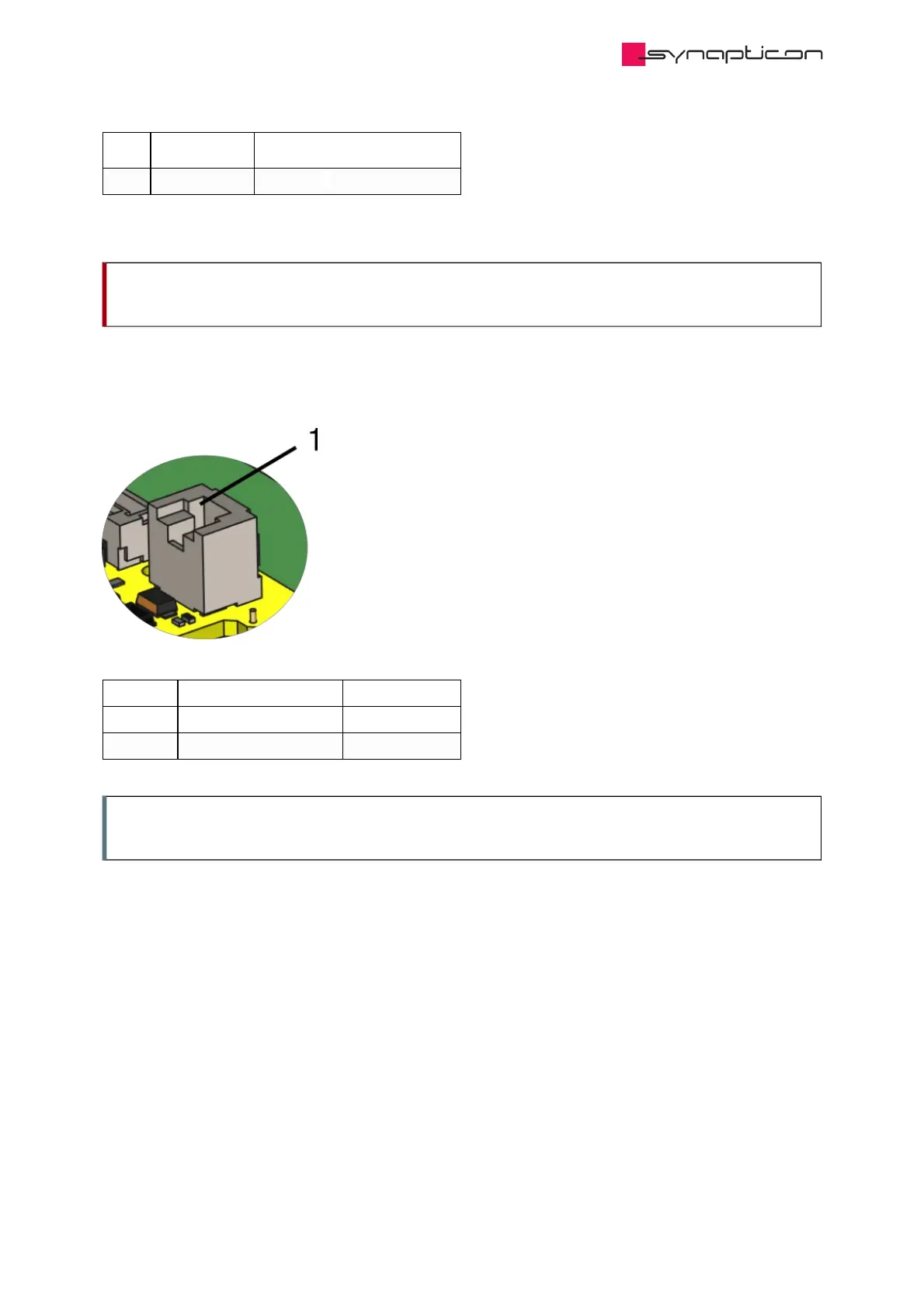

1.5.5.1.2 Safe brake terminal
Pin # Designation Function
1 - Brake -
2 + Brake +
Note
Note
The safe brake is PWM based and can be
The safe brake is PWM based and can be
configured with the regular brake object.
configured with the regular brake object.
