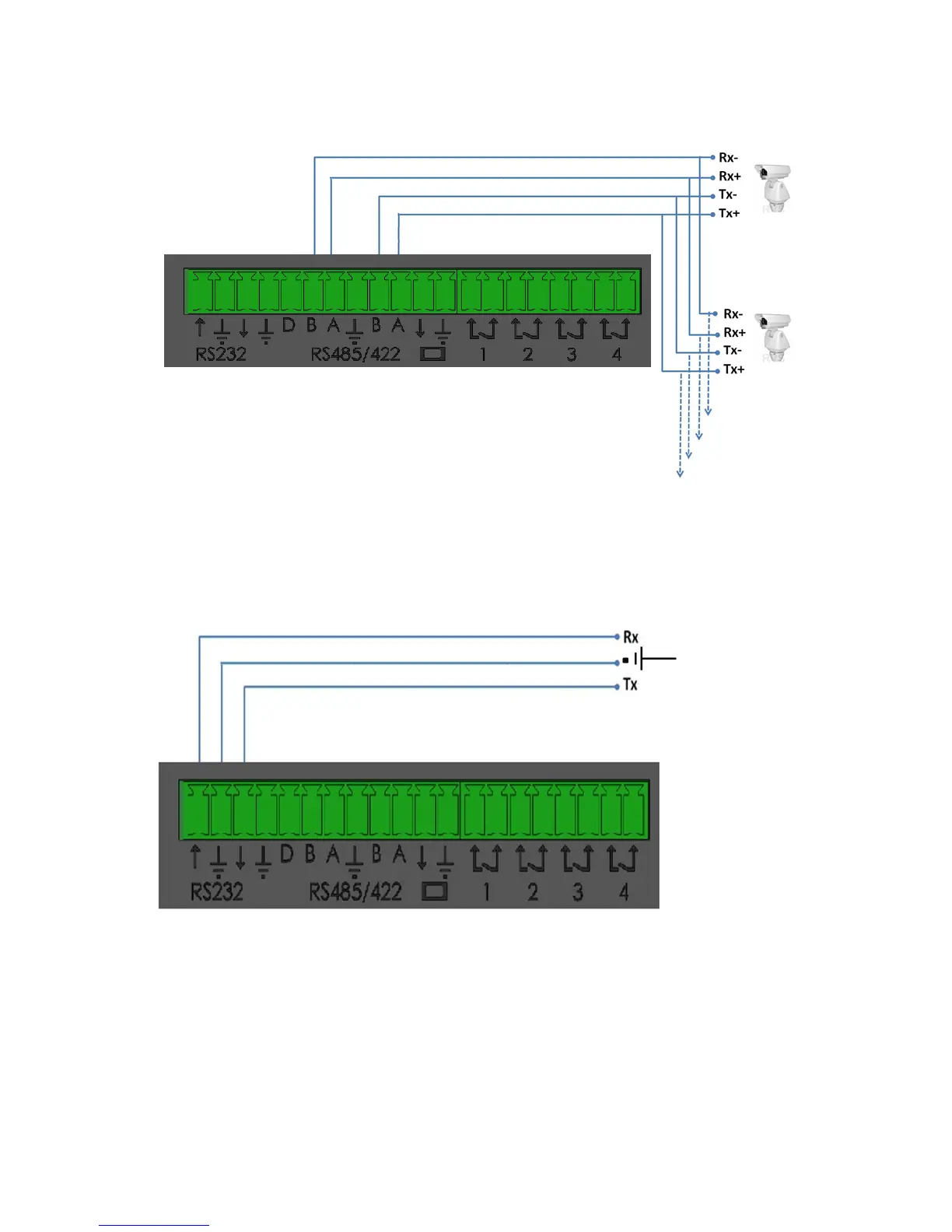

And for RS422 please wire in accordance with the below diagram:
2.1.9 RS232 Ports
The connection points labelled RS232 can be used to connect to a RS232 based controlling keyboard
or similar device. Please wire in accordance with the below diagram:
